ELECTRO AIMANT 600LBS

ALA/EA600

Statut: En stock

12/24 VDC

CA$199.99

Description

Description

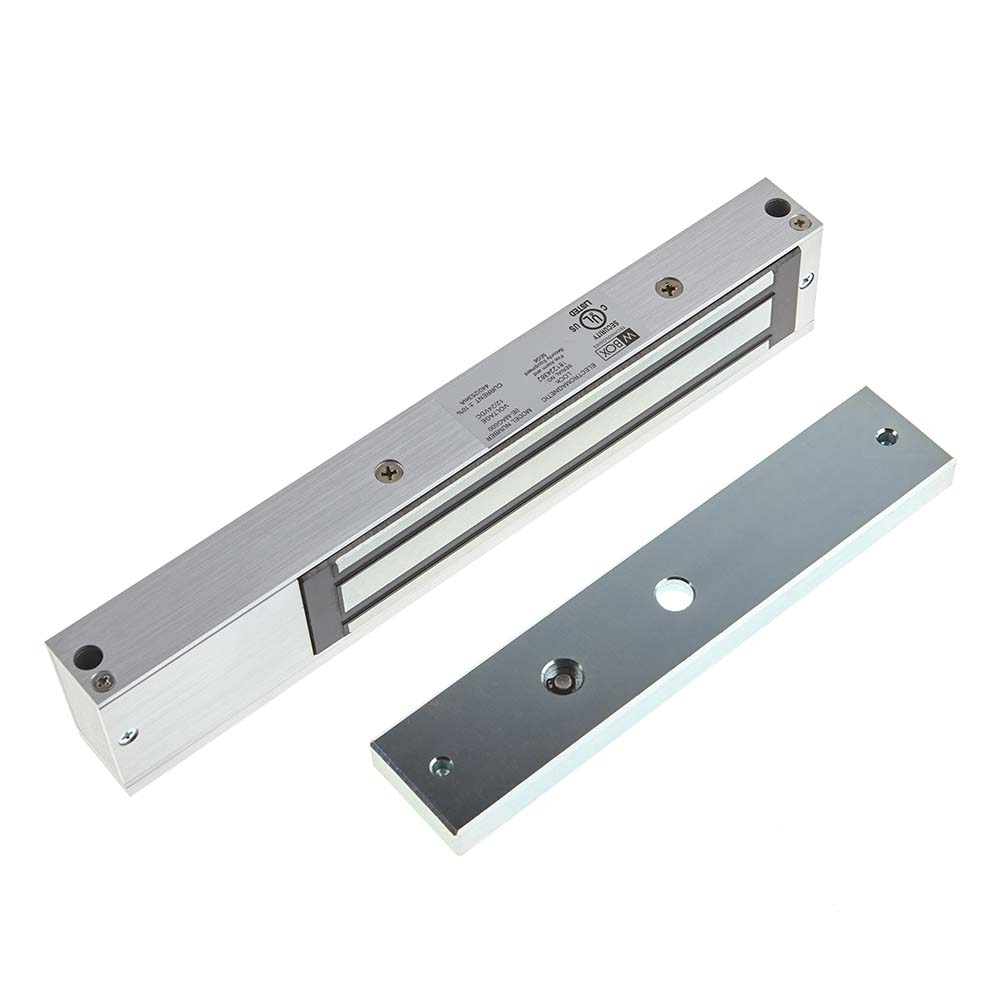

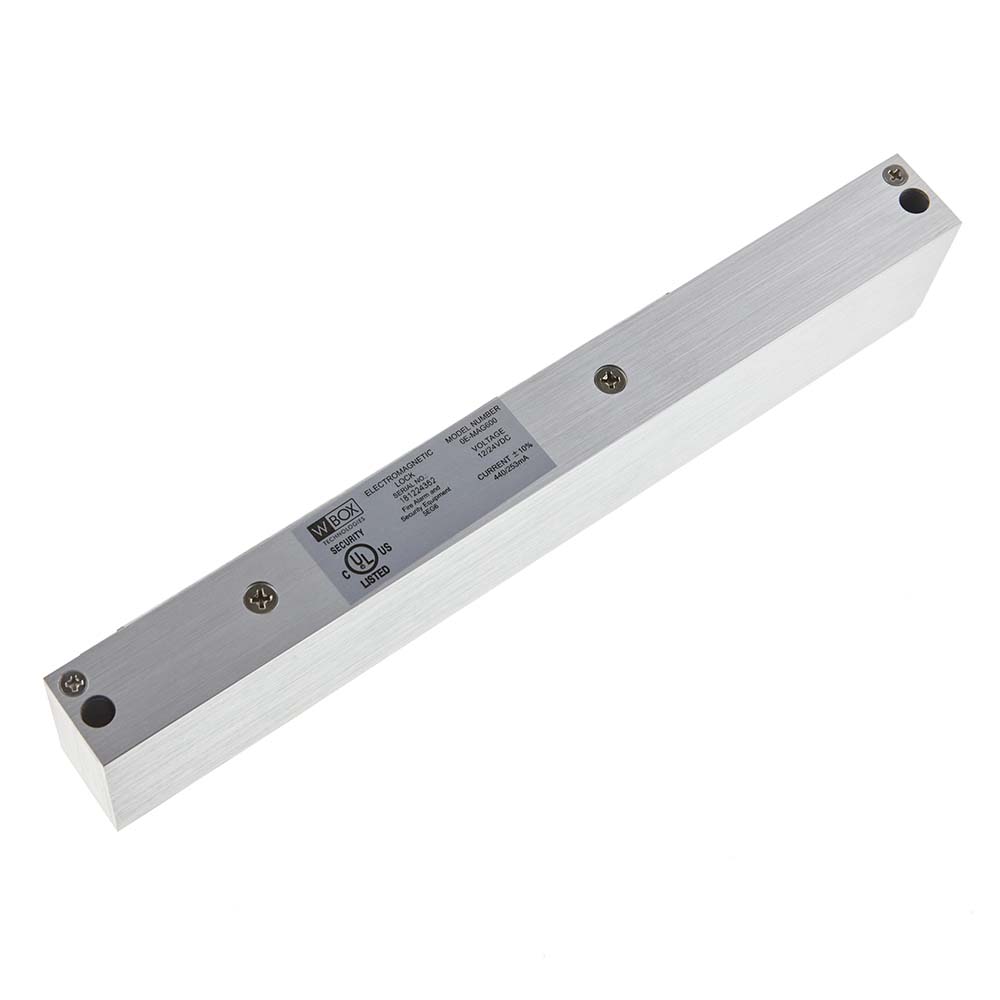

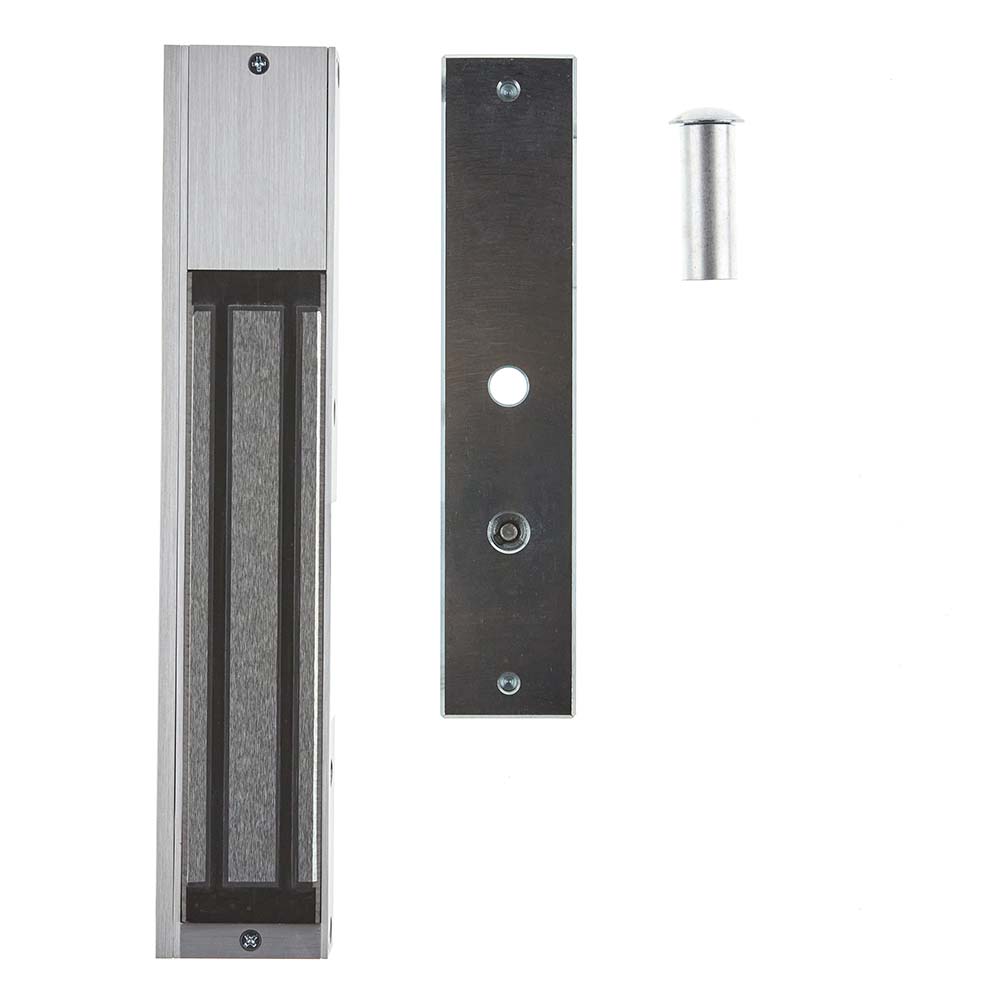

This professional grade 600 lbs. Magnetic Lock is UL/ULC listed and finished in anodized aluminum. It is the perfection solution for many access control applications.

Main Features
  • 600 lbs (272 kg) Holding Force
  • Brushed Aluminum Finish (US28)
  • Field Selectable 12/24V DC Operation
  • Compatible with all access/egress systems
  • Heavy duty vandal resistant construction
  • On-board MOV's provide protection against Voltage spikes and surges
  • Current Draw: 480mA @ 12 VDC, 240mA @ 24VDC

Spécifications

Spécifications

General information

ADI Part Number OE-MAG600LB Brand Name ADI PRO
Manufacturer ADI PRO Manufacturer Part Number OE-MAG600LB
Product Name Magnetic Lock 600 lbs Holding Force Product Type Magnetic Lock

Technical information

Door Supported Single Door

Physical Characteristics

Application/Usage Door Color Silver
Depth 1.14" Durability Vandal Resistant
Height 2.2" Width 9.84"

Power Description

Input current 240 mA, 480 mA Input Voltage 12V DC, 24V DC

Power Description

Input current 240 mA, 480 mA Input Voltage 12V DC, 24V DC

Product Information

Finishing Anodized Aluminium, Brushed Aluminium Holding Force 600 lb

Warranty

Limited warranty 2-Year

Miscellaneous

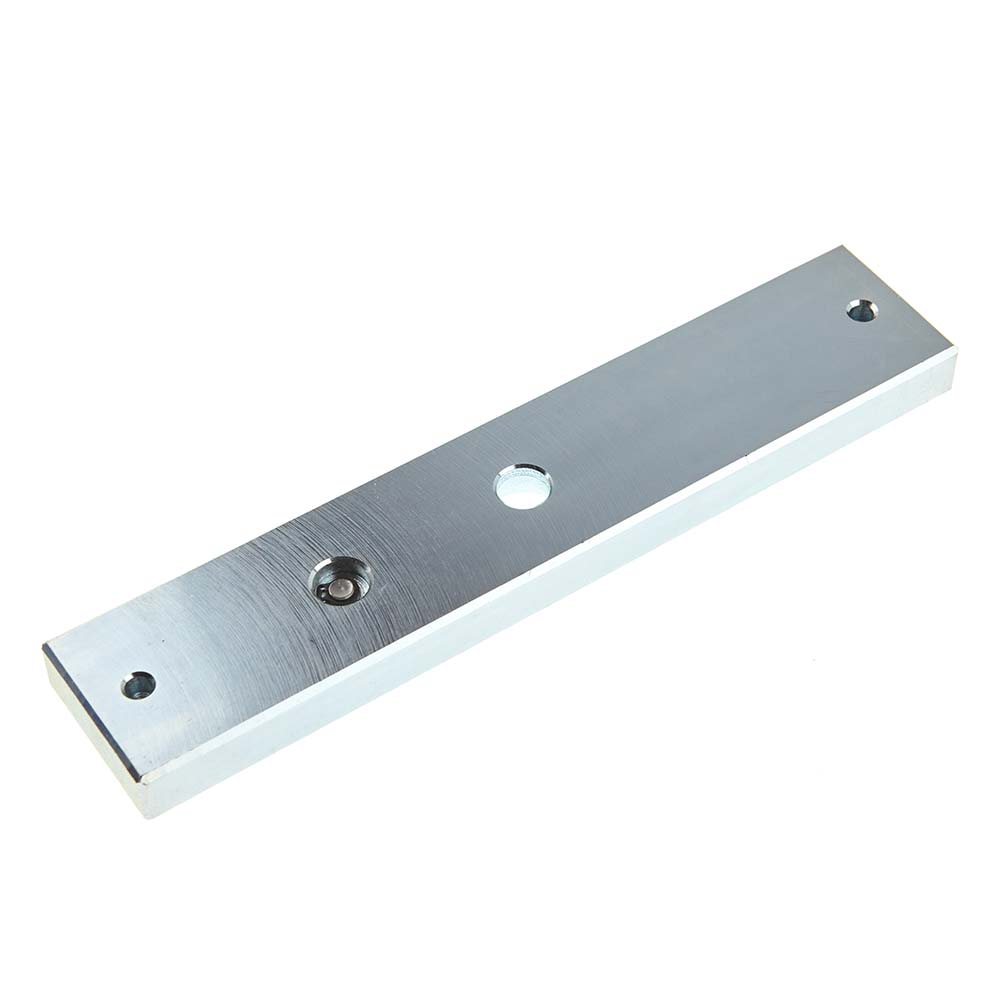

Additional Information Magnet Length: 9-7/8"(250 mm) Armature Length: 7-5/32" (182 mm) Compatibility W Box Access/Egress Systems
Features Spike Suppression, Surge Protection
