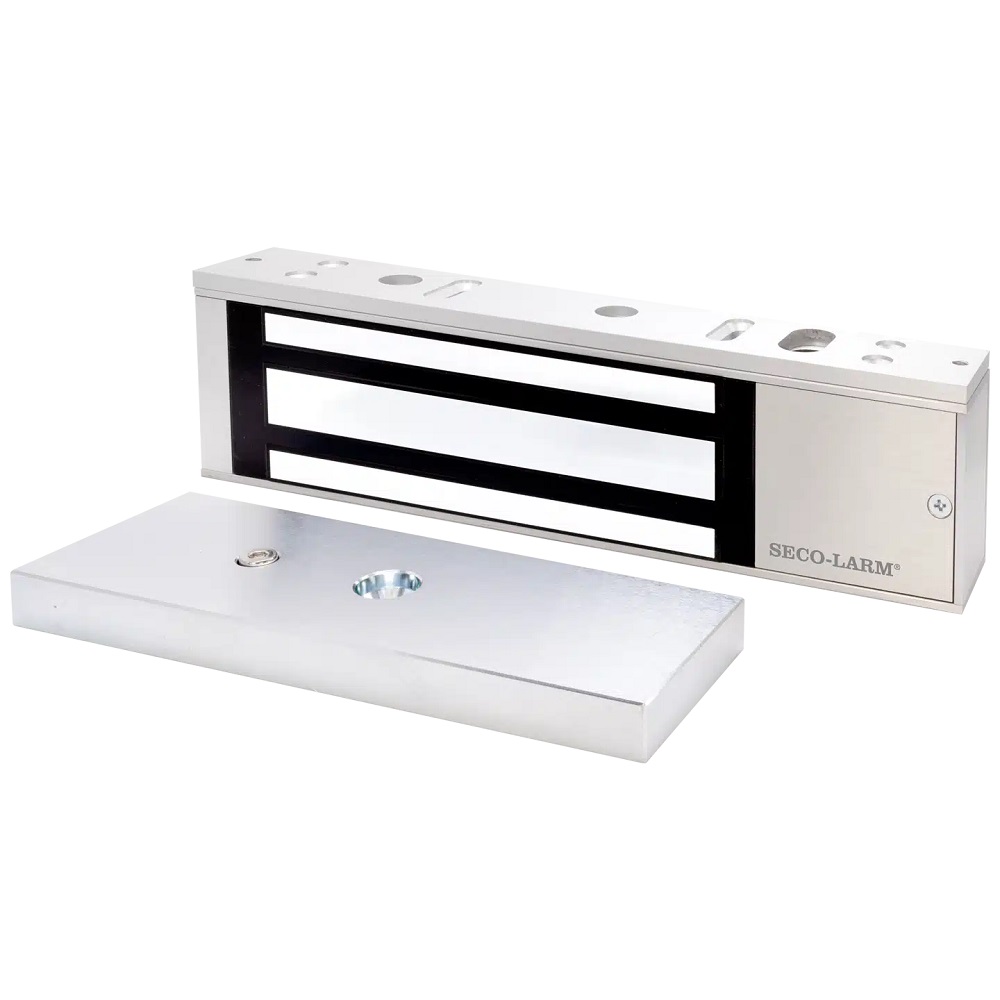

ELECTRO-AIMANT 1200LBS

ALA/EA1200

Statut: En stock

12/24 VDC

CA$189.99

Description

Description

  • 1,200-lb (545kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Anodized aluminum housing (US 28)
  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • Additional brackets available for easy mounting or atypical situations
  • Detachable faceplate for easy access to wiring
  • 12/24VDC Selectable

Spécifications

Spécifications

Operating voltage 12 /24 VDC (selectable
Current draw 500mA@12VDC, 250mA@24VDC
Door thickness (max.) 1-13/16″ (46mm)
Holding force 1,200-lb (545kg)

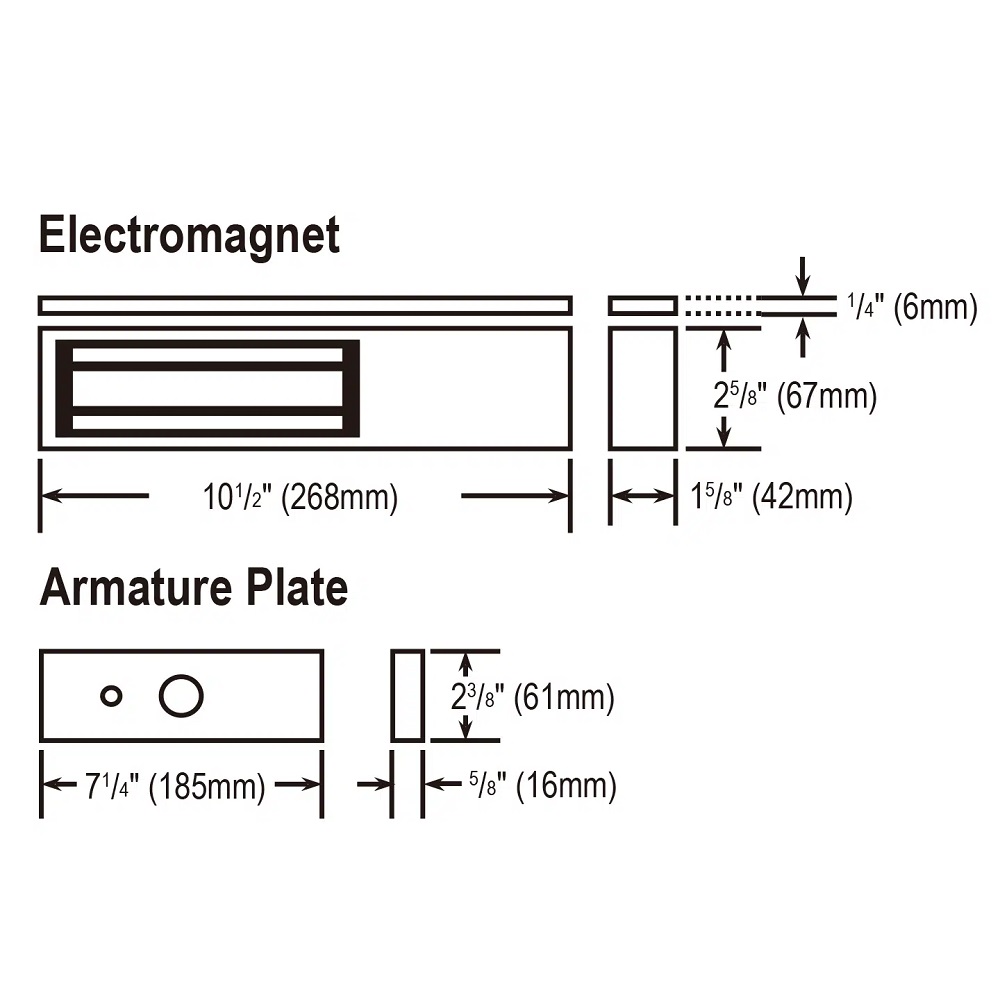

Dimensions – Magnet 10-1/2″x2-5/8″x1-9/16″ (267x67x40 mm)
Dimensions – Mounting Plate 10-1/2″x1-9/16″x1/4″ (267x40x5.5 mm)
Dimensions – Armature Plate 7-1/4″x2-3/8″x5/8″ (185x61x16 mm)
Operating humidity 0~85 (non-condensing)
Operating temperature 32°~120° F (0°~49° C)
Lock surface temperature ≤ Ambient temperature ± 68° F (20° C)
Destructive attack Level I
Line security Level I
Standby power Level I
Endurance Level IV
Weight 4-lb 6-oz (2kg)

UL 1034 Rating

Static strength 1,000-lb
Dynamic strength 70 ft-lb
Endurance 250,000 cycles
