| Specifications |
| Model |
CS-EP3x Pro |
| Video Doorbell |
| Camera Parameters |
| Image Sensor |
1/2.8" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |
Upper camera: 2.3mm @F/2.2 ,
diagonal field of view 162°
Bottom camera: 2.3mm @F/2.2 ,
diagonal field of view 155°
|
| Day & Night |
ICR infrared filter type ( Max: 6 meters) |
| Video Parameters |
| Max. Resolution |
Main camera: 2K (2048 × 1296) Bottom camera: 1080p (1920 × 1080) |
| DNR |
2D / 3D DNR |
| Video Compression |
H.265 / H.264 |
| Frame Rate |
15fps.Fixed frame rate |
| PIR Sensor |
| Sensing Angle |
120° |
| Sensing Distance |
Max. 5 m (16.4 ft) |
| Sensitivity |
Adjustable (High: 5 meter, Medium: 4 meter,and Low: up to 3 meter) |
| Storage |
| Local Storage |
Built-in 32GB eMMC |
| Cloud Storage |
EZVIZ CloudPlay storage |
| Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Button |
Doorbell button with electronic doorbell |
| Reset button |
Yes |
| Network Parameters |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Function |
| Intelligent Alarm |
AI-Powered Human Shape Detection, Package Detection |
| Tamper Alarm |
Sound and light anti-dismantling alarm
(Supports sending alerts via EZVIZ App)
|
| Video Intercom |
Two-Way talk |
| General |
| Operation Conditions |
-20°C to 50°C, humidity 95% or less (non-condensing) |
| IP Grade |
IP65 |
| Size |
166 × 50 × 31mm (6.53 × 1.97 × 1.22 inch) |
| Battery Capacity |
5200 mAh rechargeable lithium battery |
| Power Supply |
8-24VAC, type-C: 5V(±10%), EZVIZ Solar Panel |
| Power Consumption |
3W MAX |

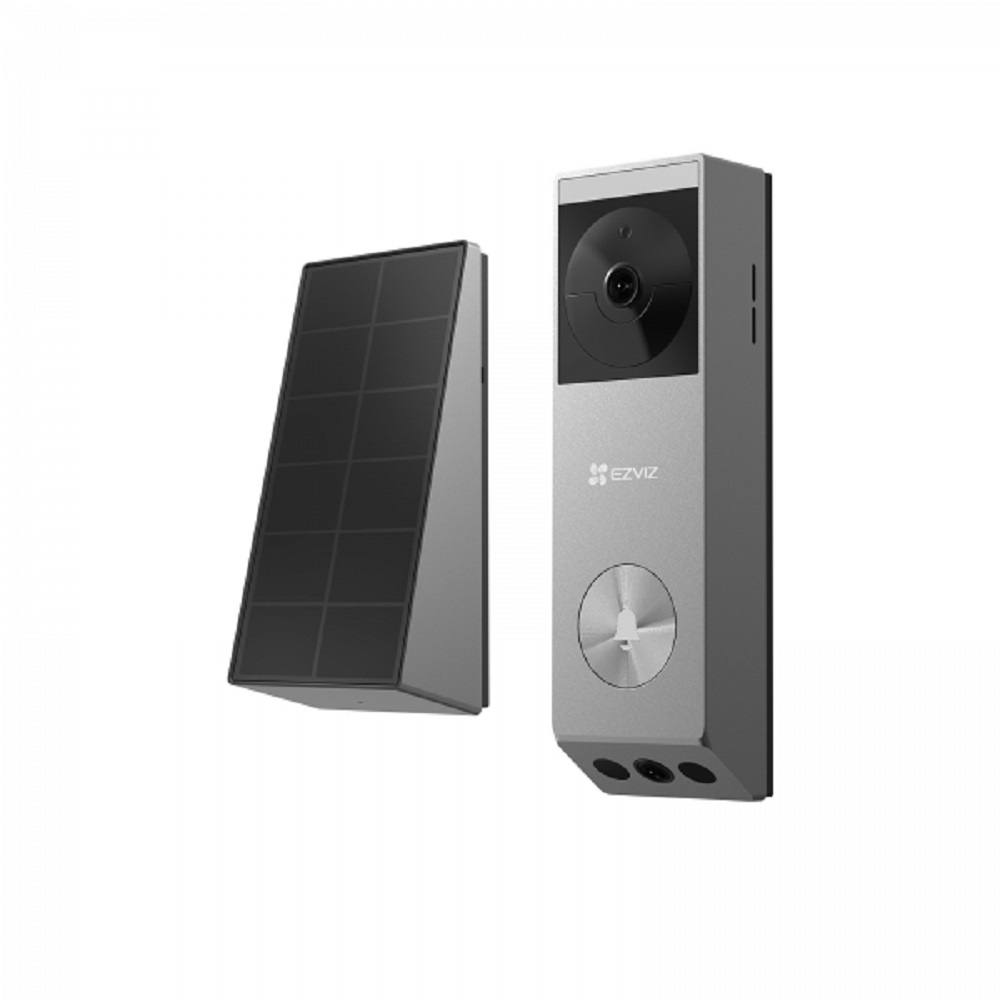

| Solar Panel |
| Performance Parameter |
| Max. Power Voltage |
8.1V |
| Max. Power Current |
240mA |
| Max. Power |
1.2W |
| Operating Temperature |
-20°C to 50°C |
| Size |
126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch) |
| IP Grade |
IP65 |
| General |
| Net Weight |
Doorbell: 276 g (9.73 oz) |
| Weight with Package |
650 g (22.93 oz) |
| In the box |
| In the box |
- EP3x Pro Video Doorbell |

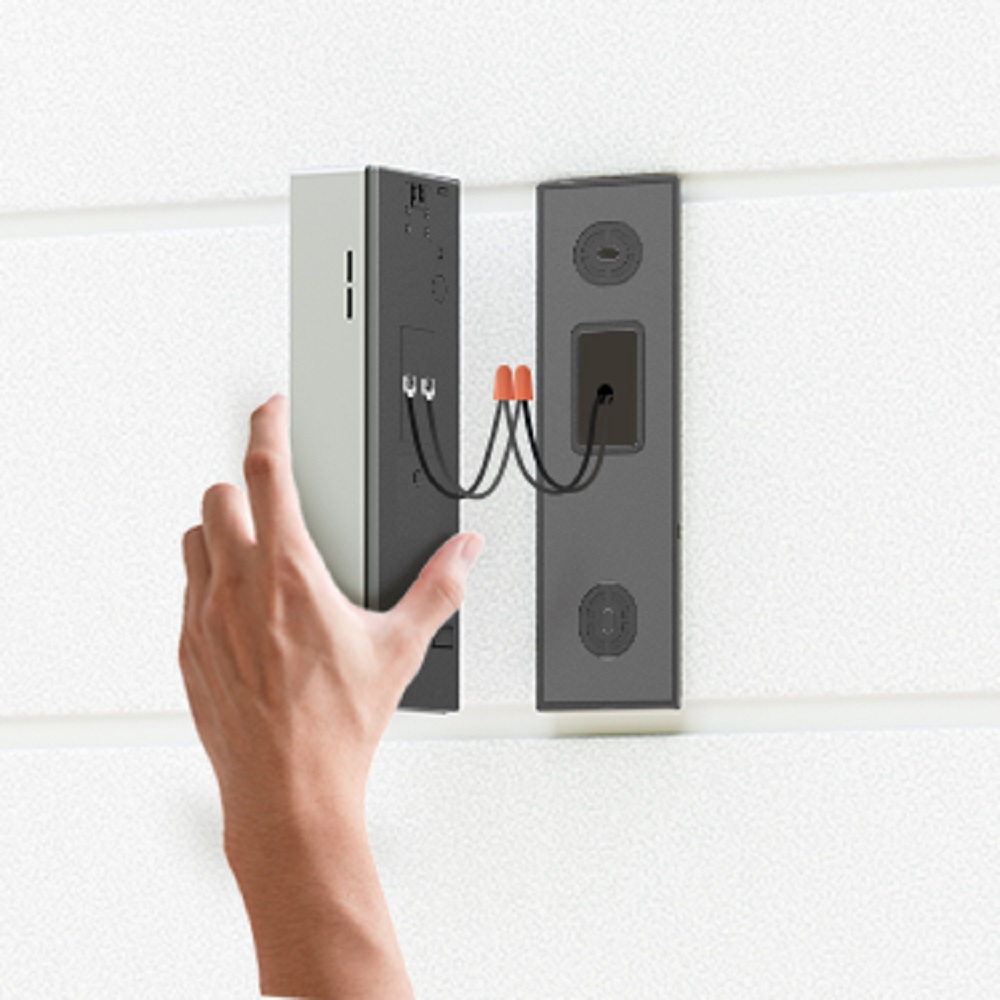

| - Mounting Bracket for Doorbell |
| - Inclined Mounting Bracket |
| - Drill Template for Doorbell |
| - Solar Panel |
| - Drill Template for Solar Panel |
| - Power Cable |
| - Pin |
| - Screw Kit ×3 |
| - U-shaped Wire ×2 |
| - Wire Connector ×2 |
| - Regulatory Information ×2 |
| - Quick Start Guide |
