| Specifications |
| Model |
CS-CH1-R100-10AWFK |
| Audio |
| Ringtone |
Supports up to 20 options with adjustable volume |
| Audio Output |
Built-in high-power speaker (Up to 72 dB in 1 meter) |
| Network |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate |
11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Antennas |
Dual external antennas |
| General |
| Operation Conditions |
-10°C to 45°C (14°F to 113°F) , humidity 95% or less (non-condensing) |
| Dimensions |
101 × 64 × 32 mm (3.98 × 2.52 × 1.26 inch) |
| Package Dimensions |
113 × 85 × 95 mm (4.45 × 3.35 × 3.74 inch) |
| Power Consumption |
Max. 5W |
| Power Supply |
AC 100 ~ 240V |
| Net Weight |
87 g (3.07 oz) |
| Weight with Package |
178 g (6.28 oz) |
| Reset button |
Yes |
| In the box |
| In the box |

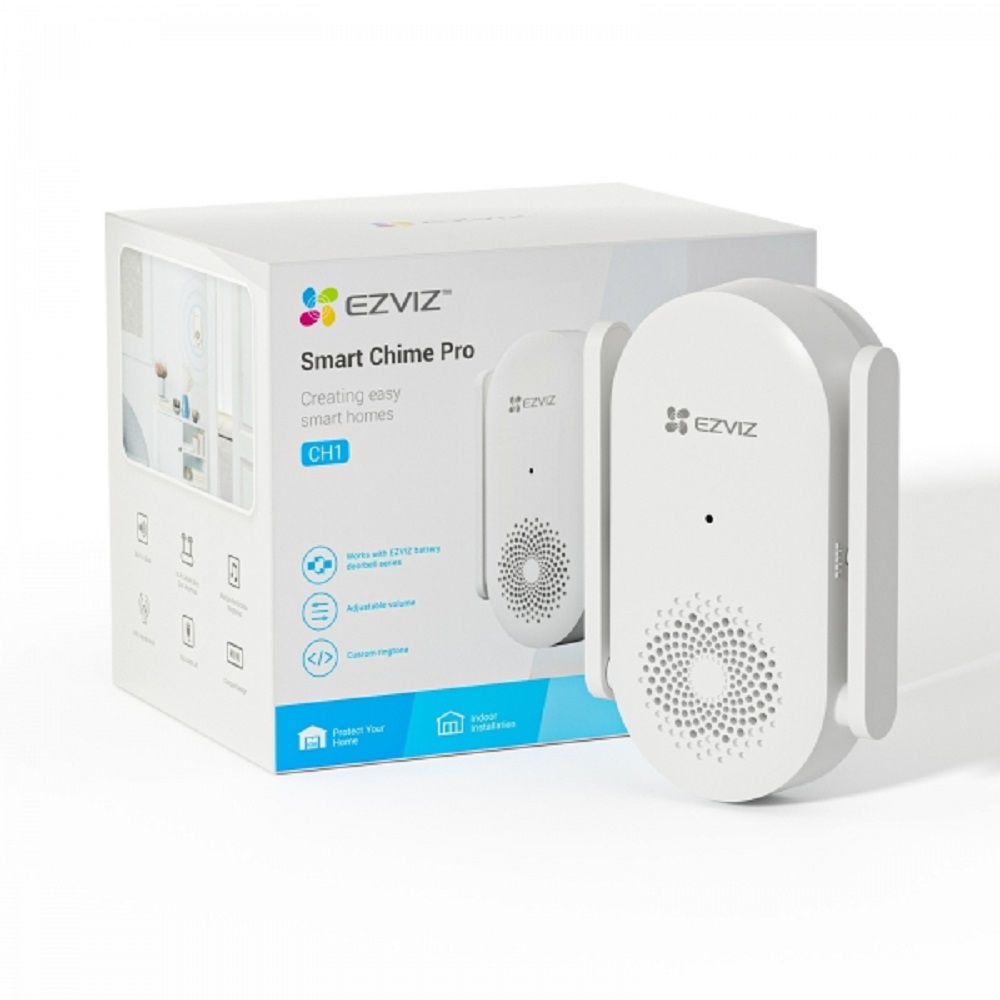

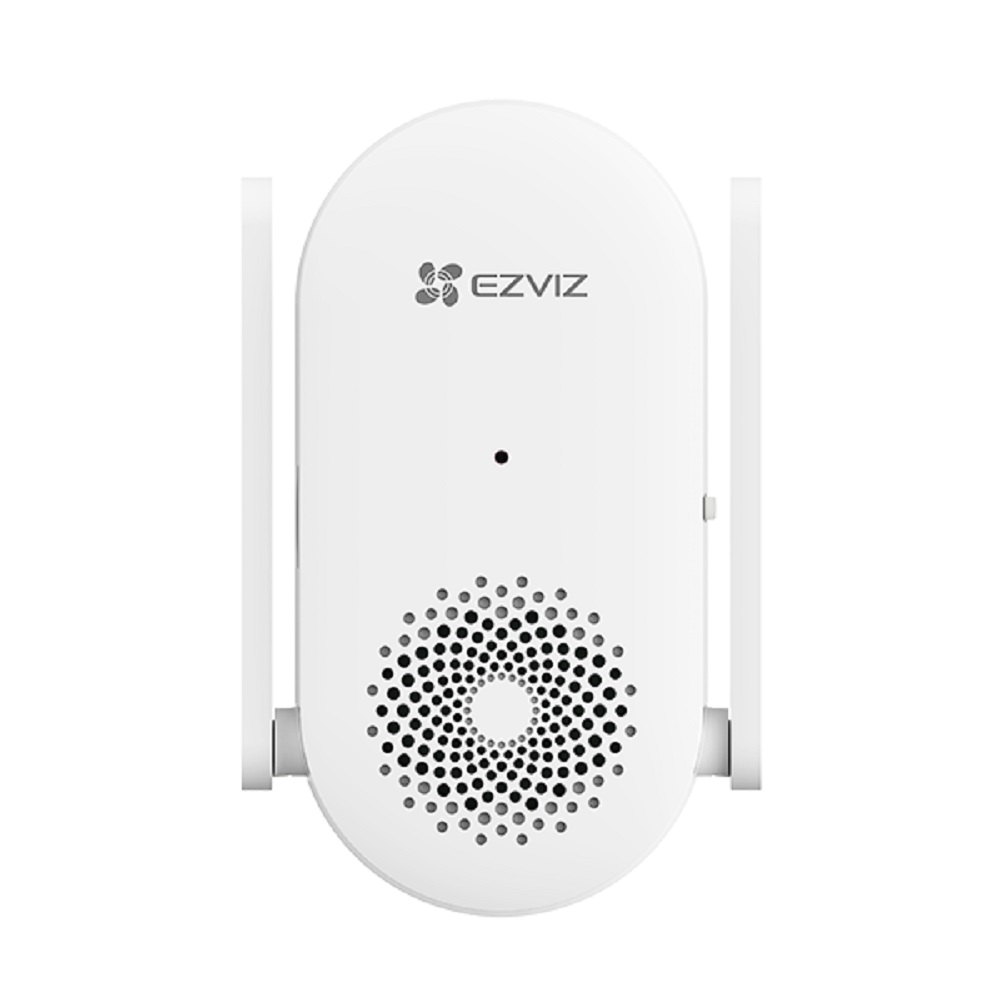

- CH1 Chime |
| - Quick Start Guide |
| - Regulatory Information |
| Certifications |
| Certifications |
CE / WEEE / REACH / RoHS / UL |
