| Specifications |
| Model |

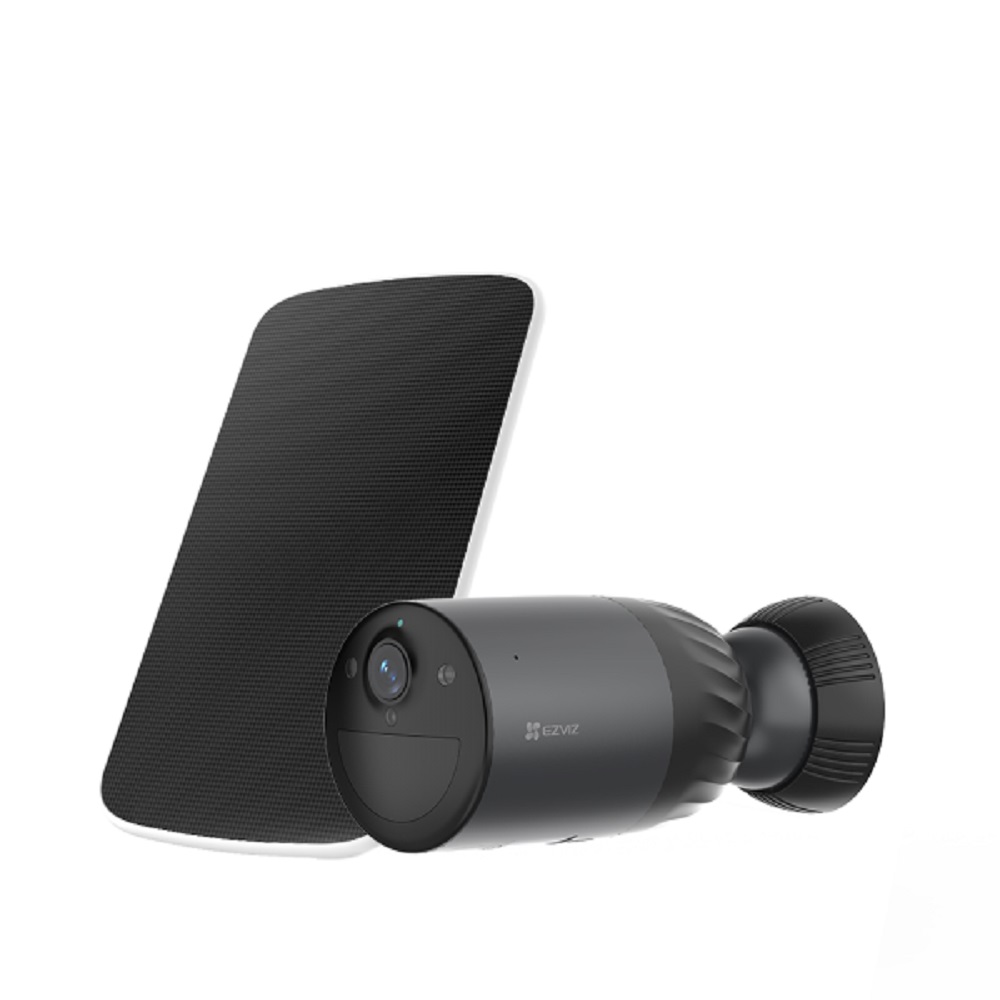

CS-BC1c-R100-2F8WFL |
| Camera |
| Image Sensor |
1/2.7” 8-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) |
| Day & Night |
IR-Cut filter with auto-switching |
| DNR |
3D DNR |
| Night Vision |
IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio |
| Max. Resolution |
3840*2160/4K/8MP |
| Frame Rate |
15fps. Self-Adaptive during network transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4 Mbps |
| Network |
| Bluetooth |
Supports |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Minimum Network Requirement |
8Mbps |
| Function |
| Smart Alarm |
AI-Powered Human Shape Detection, AI-Powered Vehicle Detection |
| Two-way Talk |
Supports |
| General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
| General |
| Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade |
IP65 |
| Power Supply |
DC 5V/2A (Compatible power adapter needs to be purchased separately) |
| Battery Capacity |
10400 mAh |
| Power Consumption |
Max. 10W |
| Product Dimensions |
149.33 x 62.95 x 62.95 mm |
| Packaging Dimensions |
103 x 103 x 186 mm |
| Weight |
Net Weight: 348g
With Package: 671g
|
