| Specifications |
| Model |
CS-DB2-A0-2C3WPB |
| Camera Parameters |
| Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens |
2.0 mm @ F2.0, view angle: 176° (Diagonal) |
| Day & Night |
IR-cut filter with auto-switching |
| Video Parameters |
| Max. Resolution |
2000 × 1504 |
| DNR |
2D/3D DNR |
| Video Compression |
H.265 / H.264 |
| Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
| PIR Sensor |
| Sensing Angle |
100° |
| Sending Distance |
Max. 5 m (16.4 ft) |
| Sensitivity |
User adjustable (High, Medium and Low Sensitivity) |
| Interface |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Reset button |
Yes |
| Network Parameters |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Functions |
| Intelligent Alarm |
PIR + human shape smart motion detection |
| Tamper Alarm |
Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) |
| Video Intercom |
Long-distance video two-way talk |
| Wi-Fi Parameters |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General |
| Operation Conditions |
-20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |

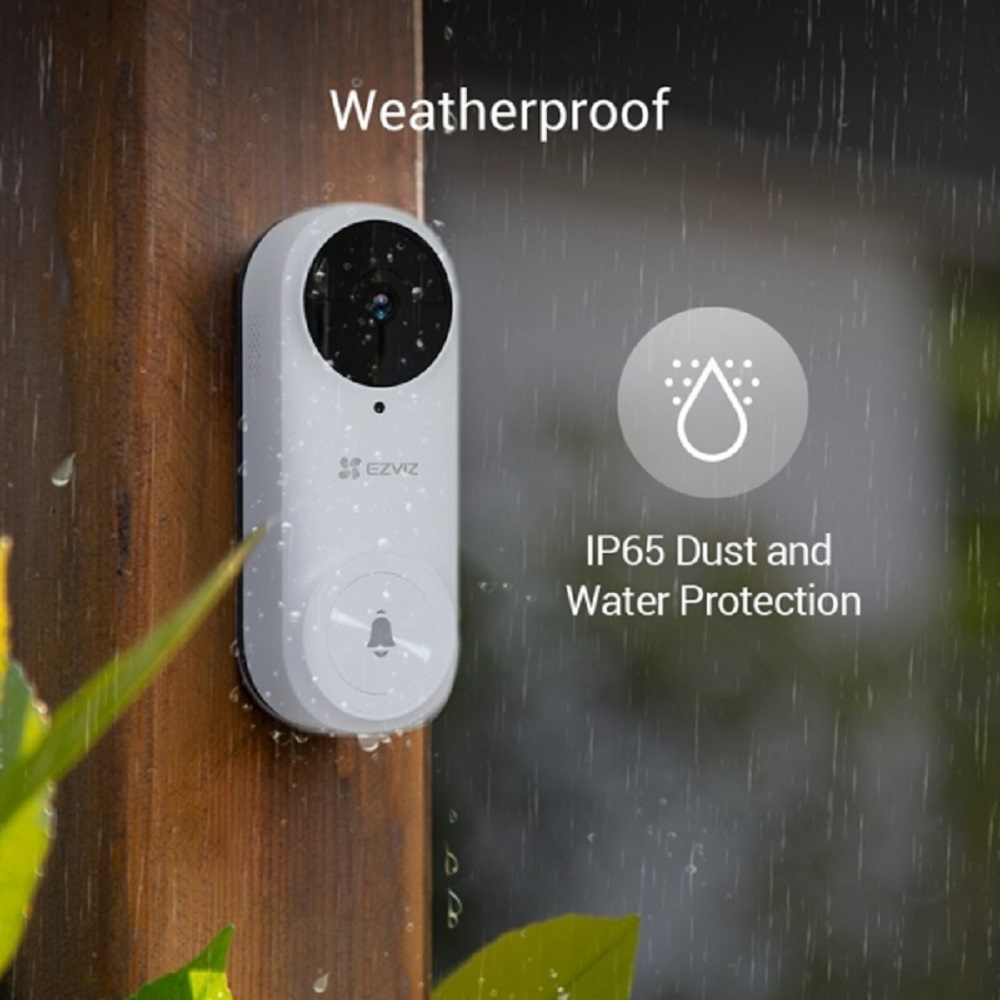

| Ingress Protection Grade |
IP65 |
| Weight |
241.35 g (8.5 oz) |
| Size |
150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
| Battery Capacity |
5200mAh rechargeable lithium battery |
| Power Supply |
DC5V±10% 2A |
| Power Consumption |
Max. 2W |
| Chime |
| Size |
100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch) |
| Power Supply |
AC 110 ~ 240V |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Ringtone |
Supports 20 ringtones with adjustable volume levels |
| Audio Output |
72 dB within 1 meter |
| Storage |
Supports microSD card up to 256 GB |
| Weight |
120 g (4.2 oz) |
| In the box |
| In the box |

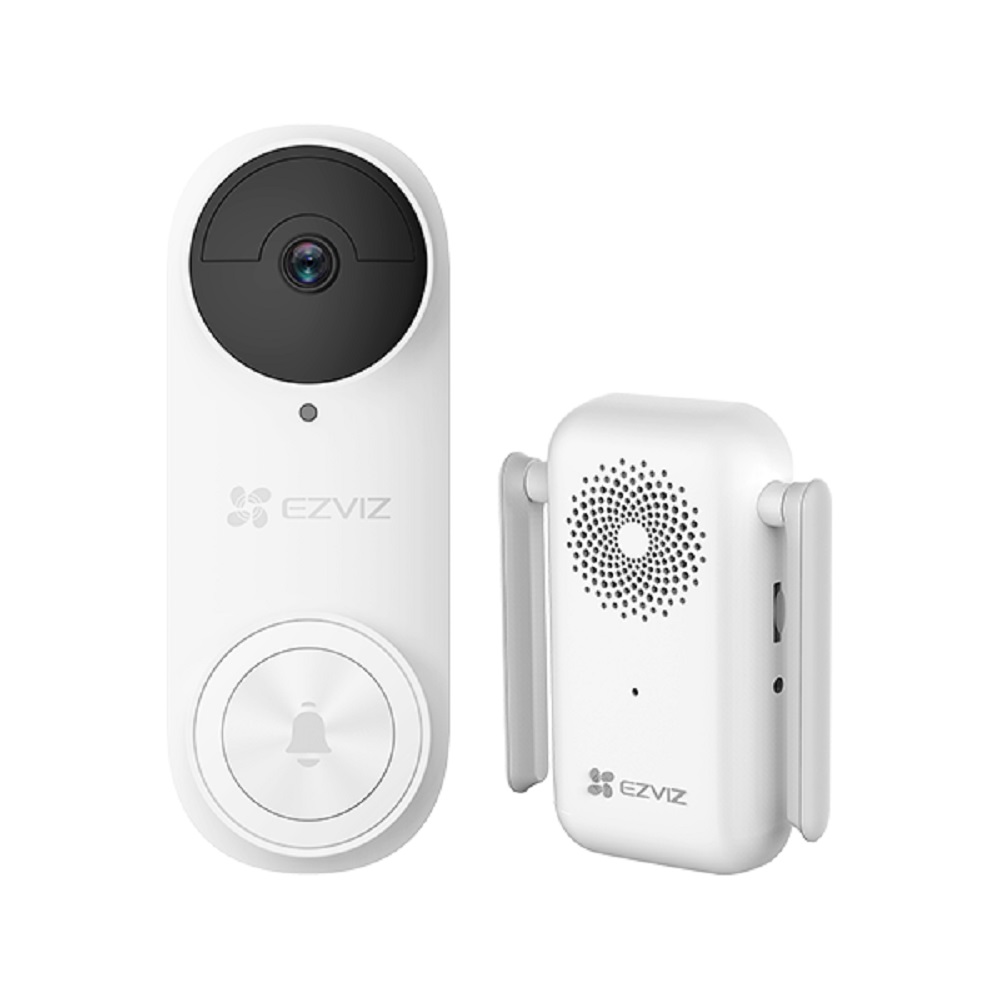

- DB2 Video Doorbell |
| - Chime |
| - Mounting Plates |
| - Inclined Mounting Plates (2) |
| - Screwdriver and Screw Kits (2) |
| - Foam Sticker |
| - Plate Foam |
| - Drill Template |
| - Pin |
| - U-shaped Wire and Wire Connectors (3) |
| - Power Cable |
| - Quick Start Guide |
| - Installation Guide |
| - Regulatory Information |
