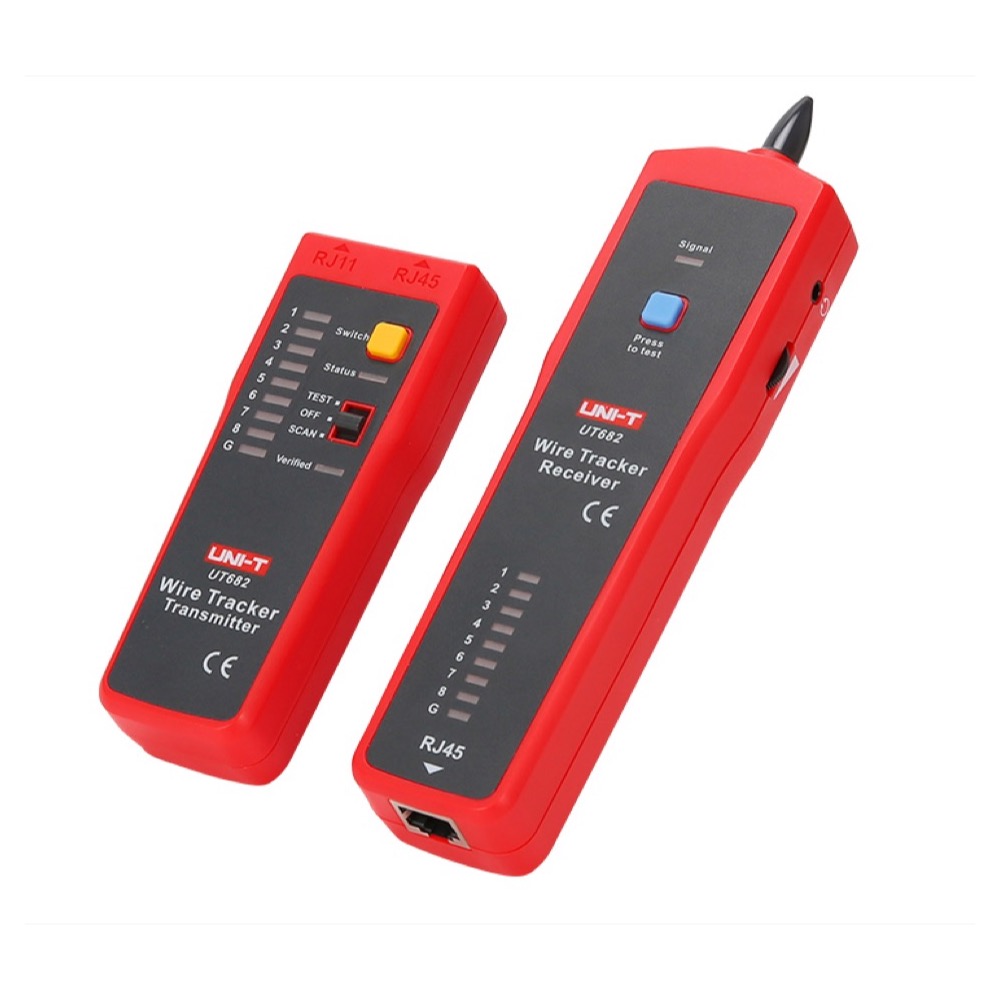

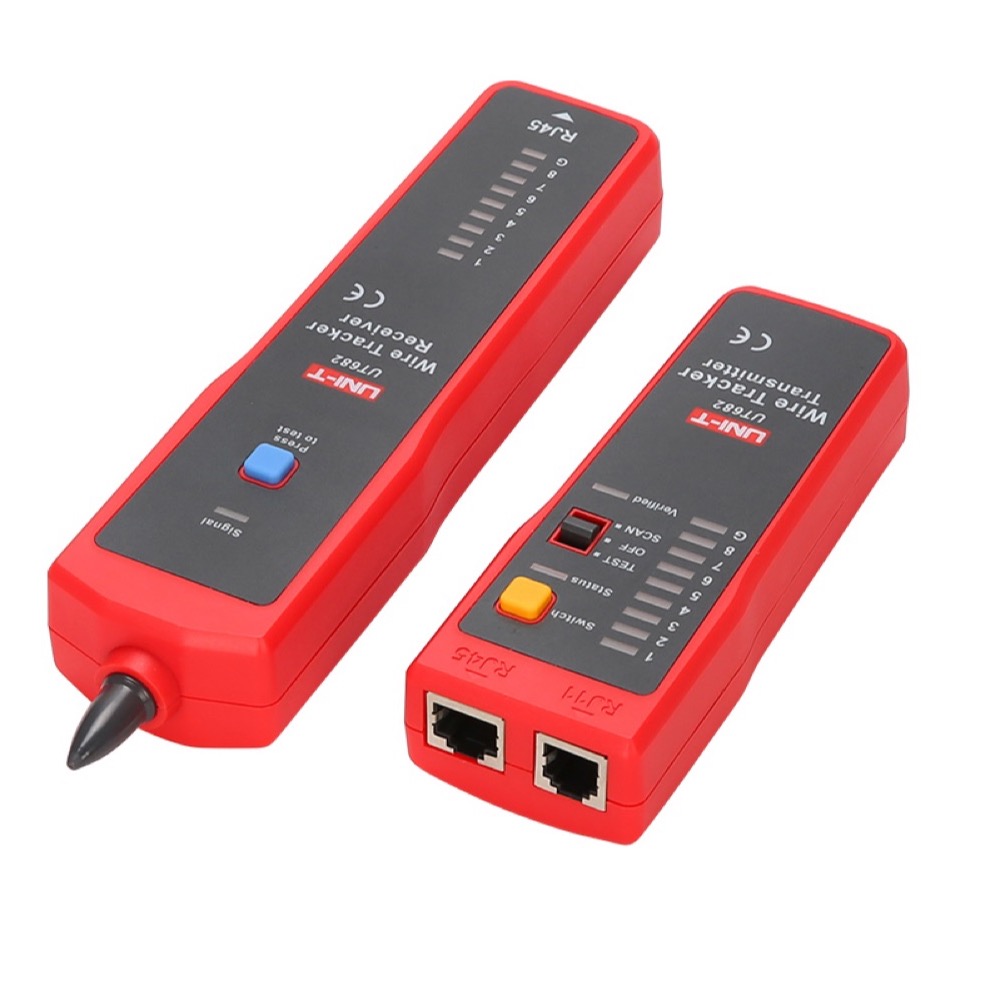

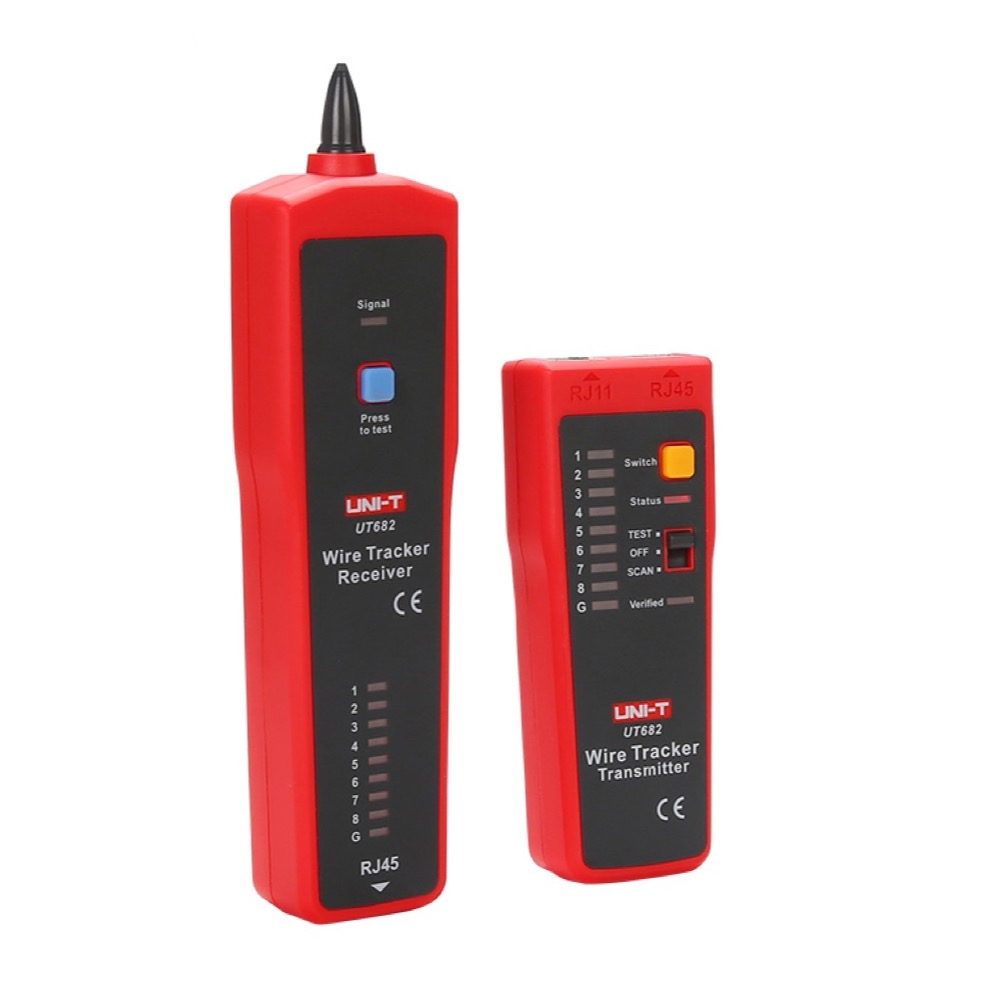

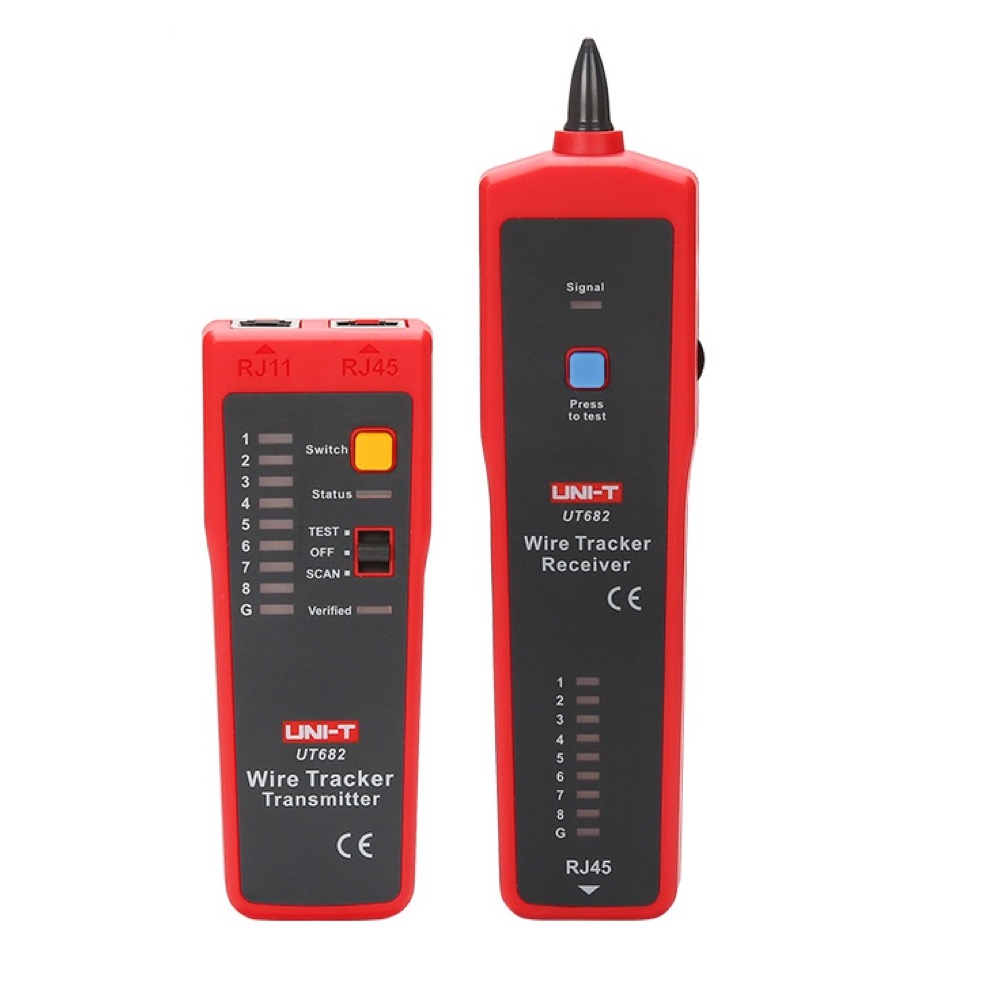

TRAQUEUR DE FIL RJ-11 RJ-45

Statut: en rupture

CA$49.99

Quantité :

Description

● Telephone/ethernet/power cable tracking

● DC level test, can check voltage level and polarity

● Ethernet cable wiring sequence verification

● Fast open/short circuit test

● Volume adjustment

● Headset connection for noisy environment

● Dual measurement cycle mode

● Low battery indication

Specifications	Range		UT682	UT682D
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire	Telephone line\twisted- pair\electric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m	≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for telelphone lines	DCV function, range: ±(5V~52V)	√	√
	Telephone lines and LAN cables distinction	Jacks distinction	√	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak	8V DC with a new battery
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√	√
	Max transmitter working current		25mA
	Headphone jack for receiver		√
	Receiver power supply	9V battery	√	√
	Max receiver standby current	~10mA	√	√
	Max receiver operating current	<40mA (AC, RMS)	√	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input voltage protection			52V DC	60V DC
