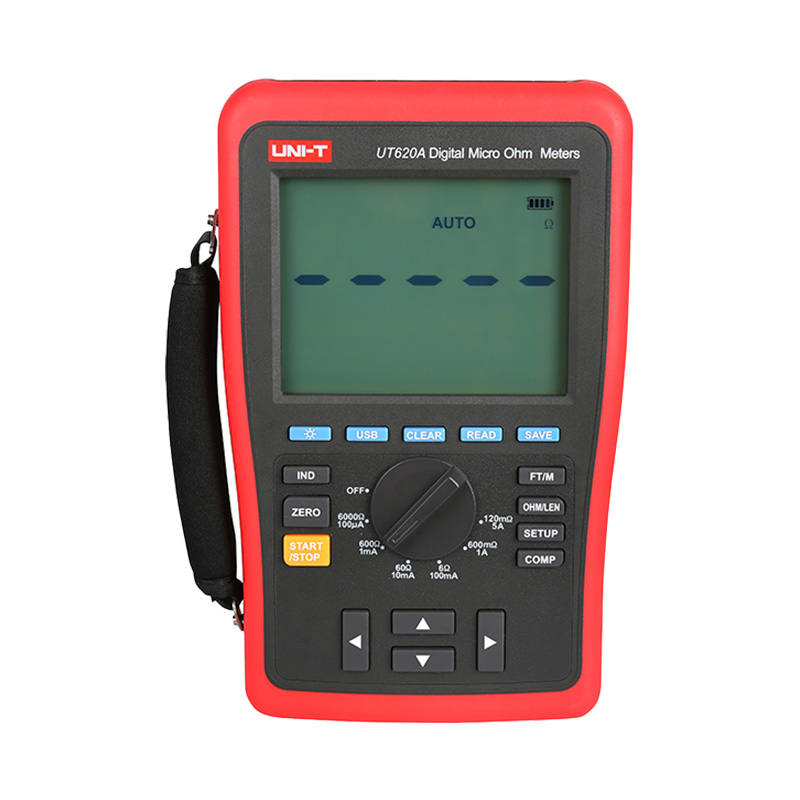

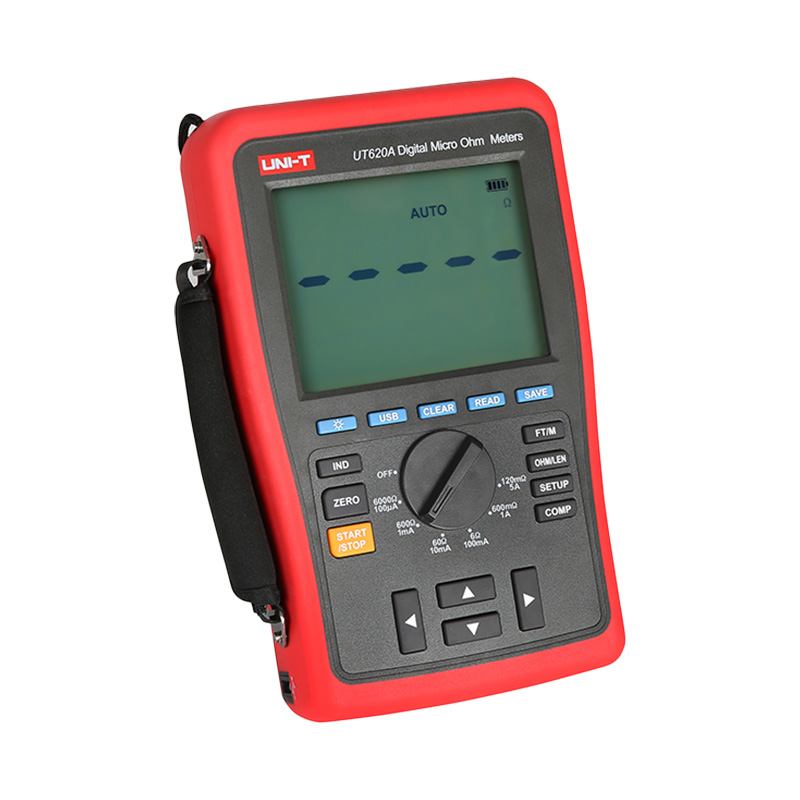

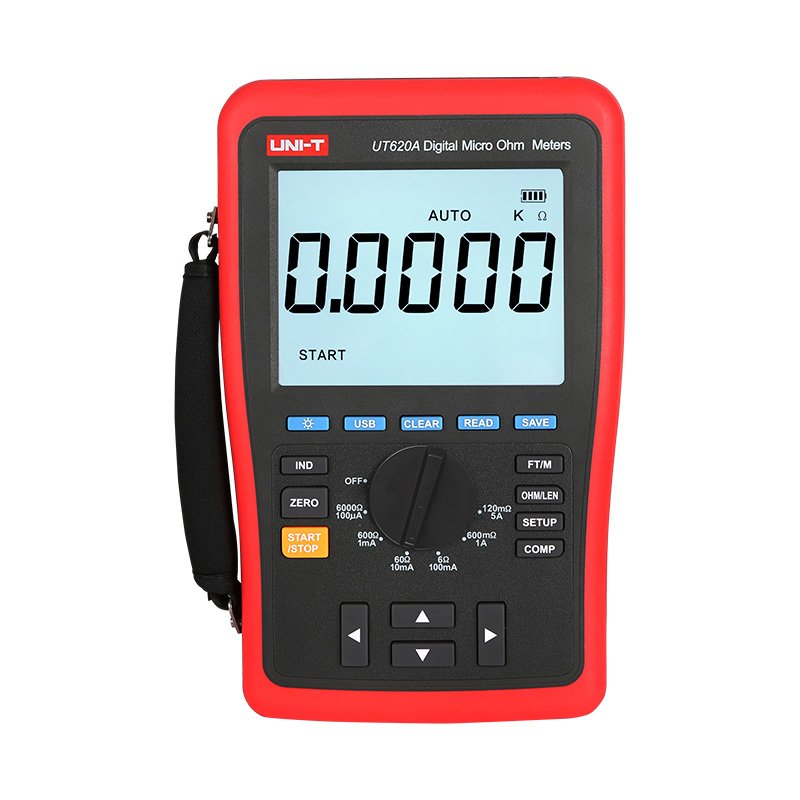

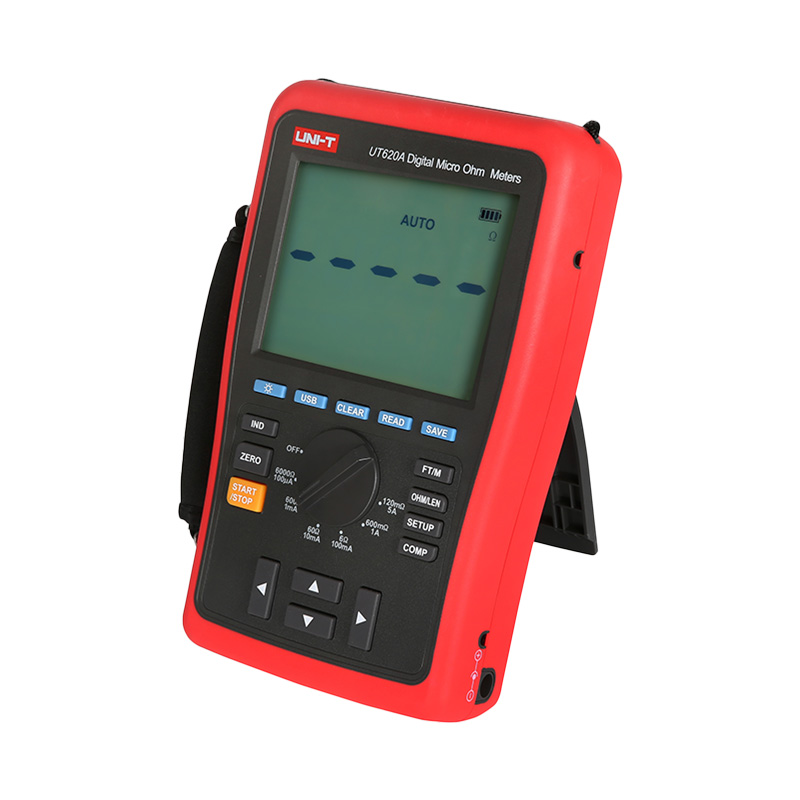

MICRO-OHM-METRE UNI-T

UT6/20A

Statut: En stock

CA$499.99

Description

Description

● Comparison measurement with upper and lower limits
● Wire length measurement (m/ft)
● Built-in Lithium battery
● 1000-group data storage
● Improved measurement method which improves accuracy by counter-balancing contact resistance of leads
● Data transmission between USB and PC
● Data hold
● LCD backlight
● Zeroing function, relative mode
● IND resistance measurement mode

Spécifications

Spécifications

Specifications Range UT620A
Resolution   10uΩ
Resistance (Ω) 60mΩ/10A
120mΩ/5A ±(0.25%+25)
600mΩ/1A ±(0.25%+25)
6Ω/100mA ±(0.25%+25)
60Ω/10mA ±(0.25%+25)
600Ω/1mA ±(0.25%+25)
6kΩ/100uA ±(0.75%+30)
Features
Display count   60000
Four-wire measurement   √
Wire length measurement   √
High/low limit alarm   √
Data storage   1000
USB data transmission   √
Manual range   √
Backlight   √
Relative value   √
Low battery indication   √
