| Cartridge & Stylus |
| Frequency Response |
20-18,000 Hz |
| Channel Separation |
20 (dB at 1 kHz) |
| Vertical Tracking Angle |
20° |
| Vertical Tracking Force |
2.0-4.0 g (3.0 g standard) |
| Stylus Construction |
Bonded round shank |
| Recommended Load Impedance |
47,000 ohms |
| Coil Impedance |
6.7 k ohms (1 kHz) |
| Coil Inductance |
550 mH (1 kHz) |
| Output Voltage |
5.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance |
2.0 dB (1 kHz) |

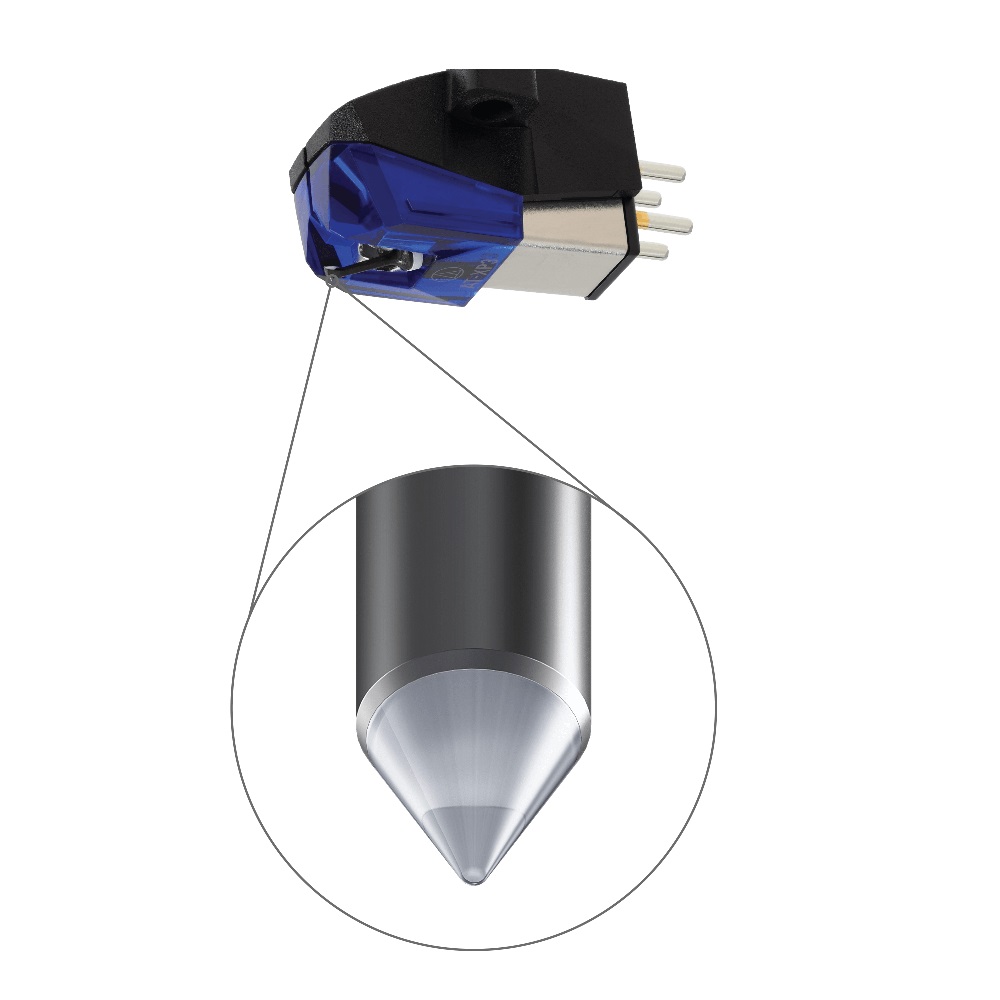

| Stylus Shape |
0.6 mil conical |
| Cantilever |
Carbon fiber-reinforced ABS |
| Static Compliance |
20 x 10 – 6 cm / dyne |
| Dynamic Compliance |
6.0 x 10 – 6 cm / dyne (100 Hz) |
| Mounting |
Half-inch |
| Cartridge Weight |
6.2g |
| Dimensions |
17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
| Accessories Included |
Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver |

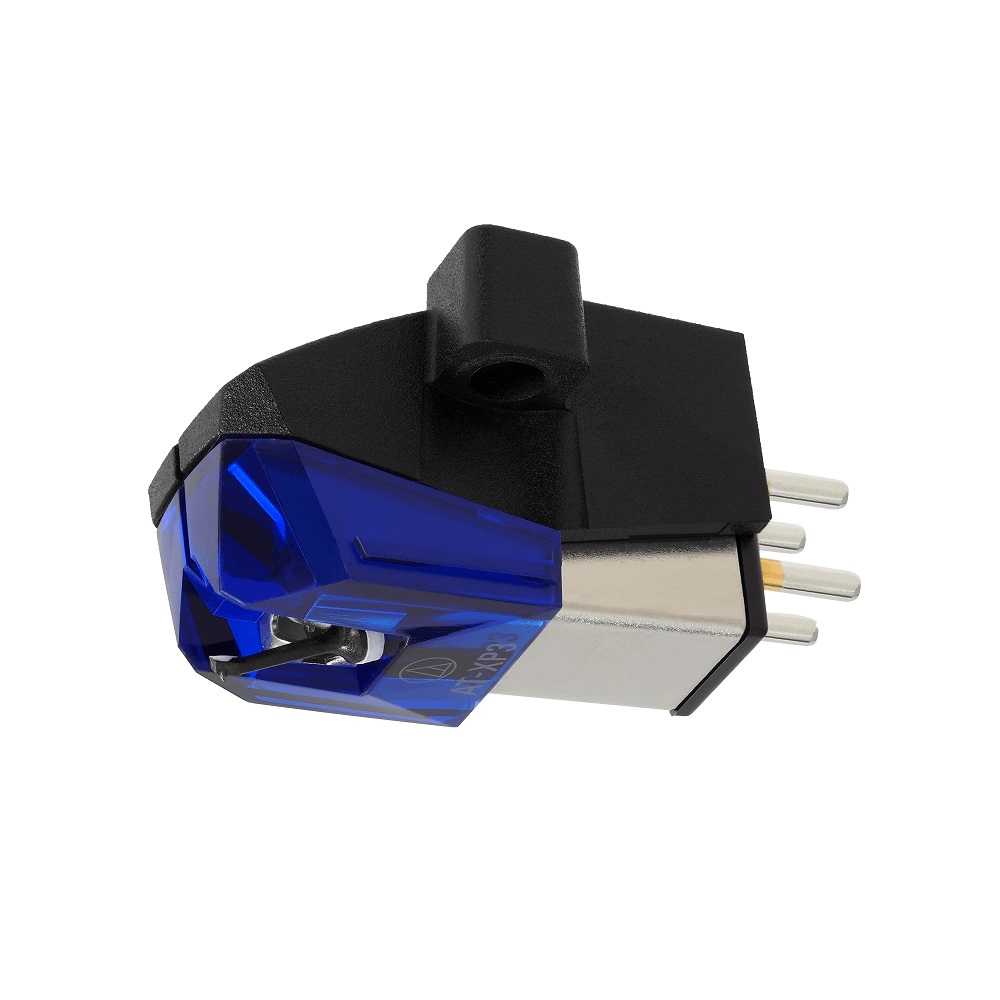

| Model |
AT-XP3 |
| Mounting Feature |
Half-inch mount |
| Recommended Load Capacitance |
100 to 200 pF |
| Replacement Stylus |
ATN-XP3 |
| Stylus Size |
0.6 mil |
| Weight |
6.2 g (0.22 oz)
|
