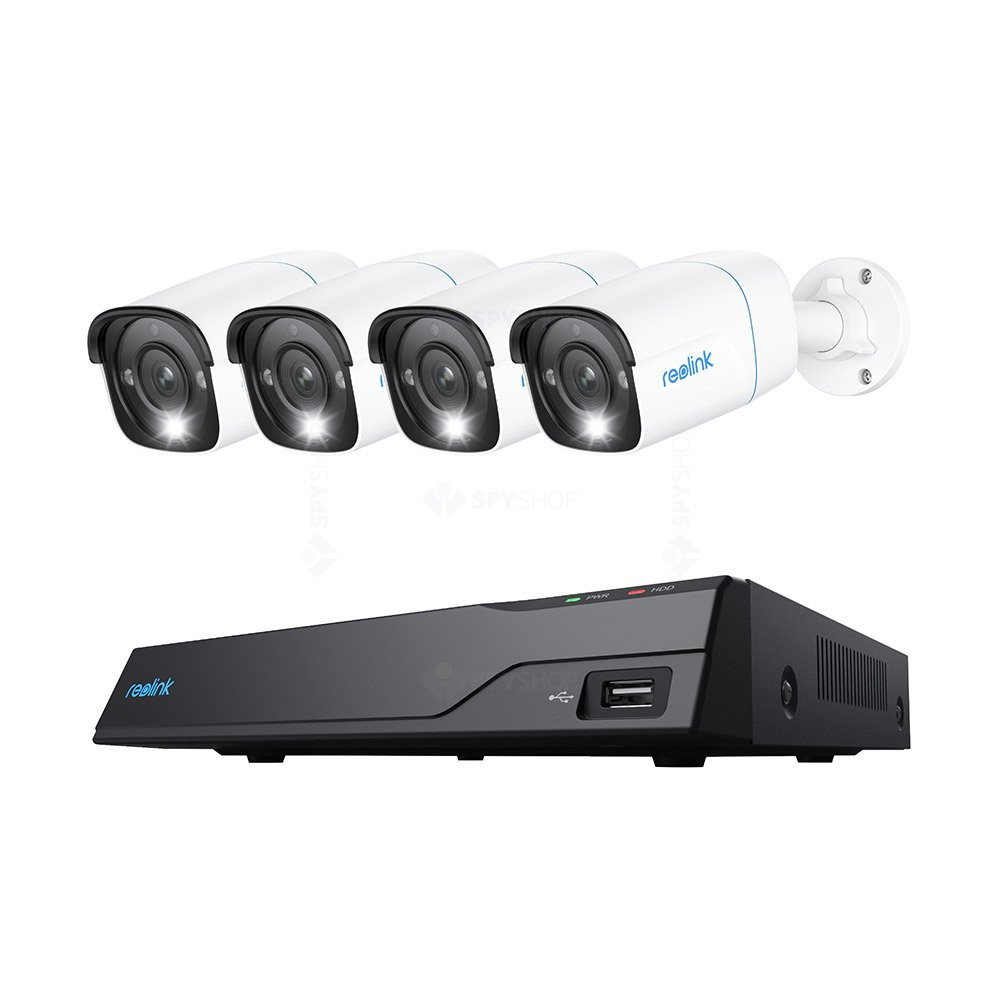

4-CAMERA IP BULLET KIT 4K 8MP POE WITH AI — 2TB

PRODUCT OVERVIEW

The Reolink NVS8-8MB4 PoE Security System is a complete wired surveillance solution that combines an 8-channel Network Video Recorder (NVR) with four 8 MP (4K Ultra HD) PoE cameras to deliver high-resolution security monitoring for homes, businesses, and properties.

This kit includes a pre-installed 2 TB internal hard drive for local continuous recording, with storage expandable up to 16 TB to retain footage over long periods without relying on cloud services.

SURVEILLANCE PERFORMANCE

• 4K Ultra HD Resolution
  The included cameras capture sharp 3840×2160 video, providing vivid detail and clarity even when digitally zooming in.

• Smart Detection Alerts
  Advanced detection technology identifies people, vehicles, and animals, sending accurate notifications and minimizing false alarms.

• Night Vision up to ≈30 m / 100 ft
  Each camera’s 18 powerful infrared LEDs deliver clear imaging in low-light or dark environments with reduced noise.

INSTALLATION & USE

Power over Ethernet (PoE) simplifies installation—one Ethernet cable for both power and data—making the setup cleaner and more efficient.

Remote access through the Reolink App or VMS client lets you monitor live views, manage alarms, and review recorded footage from mobile devices or computers with ease.

DURABILITY & RELIABILITY

The PoE cameras are rated IP67 for weatherproof performance, suitable for both indoor and outdoor monitoring in varying environmental conditions.

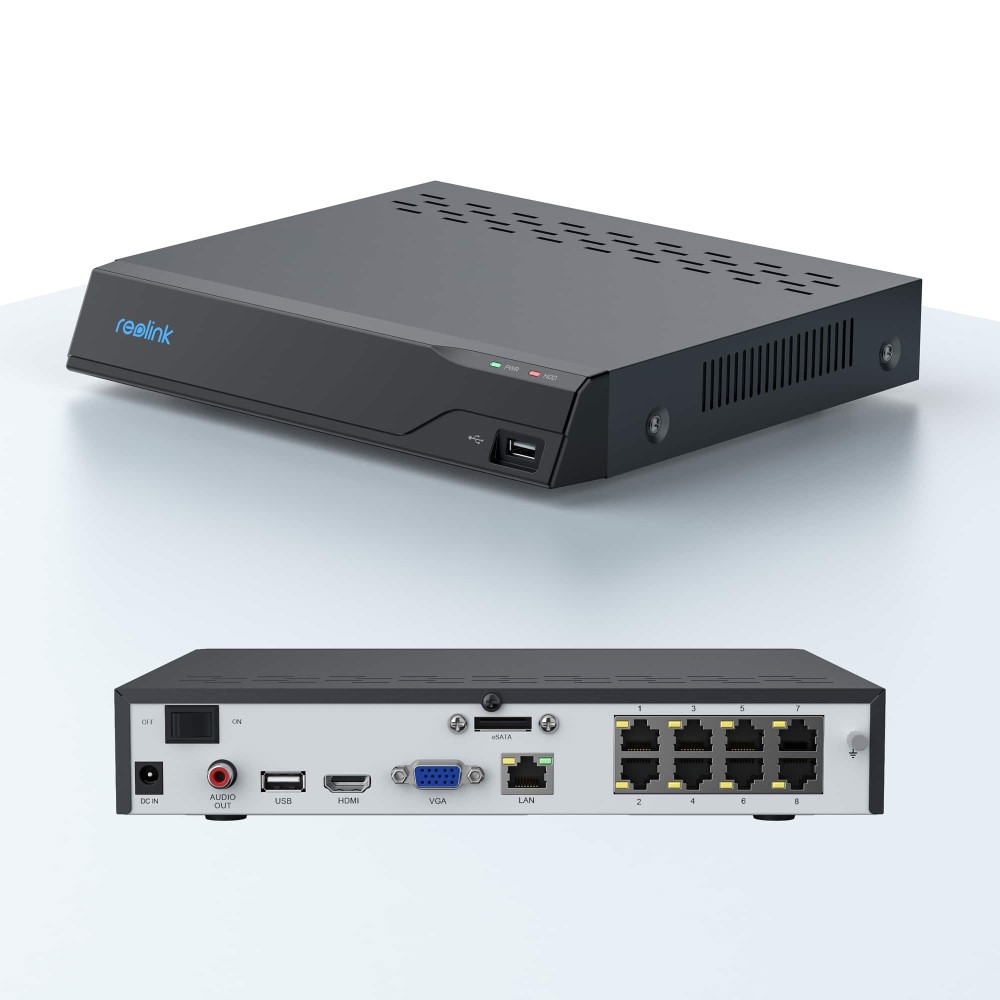

NVS8

Video/Audio Input

• Up to 12 IP cameras (max 8 wired PoE cameras)

• Cameras with built-in mic

Video/Audio Output

• Video outputs: HDMI, VGA

• HDMI display resolutions: 4096×3072, 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768

• VGA display resolutions: 1920×1080, 1440×900, 1280×1024, 1280×800, 1280×720, 1024×768

• Audio output: 1-channel RCA

Decoding & Format

• Live/Playback resolutions: 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, … etc.

• Video formats: H.264, H.265

• Synchronous playback: Up to 4 channels

Storage

• SATA interface: 1 × (2 TB HDD included)

• Capacity up to 16 TB (max 8 TB per HDD)

• eSATA interface for external HDD

External Interfaces

• USB: 2 × USB 2.0

• Network: 1 × RJ-45 LAN/WAN, 8 × RJ-45 PoE ports

PoE

• Max power per port: 25 W

• Standards: IEEE 802.3af/at

Network

• Supported protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

• Browser support: Edge, Firefox, Chrome, Safari

• OS support: Windows, Mac OS; iOS, Android

• Max user access: 20

• Max streams: 12

Power & Environment

• DC 48 V power supply

• Power consumption < 10 W (no HDD & PoE)

• Operating temp: -10 °C ~ +45 °C

• Humidity: 10 %–90 %

• Dimensions: 260 × 41 × 230 mm

• Weight: 1.4 kg

• Warranty: 2-year limited

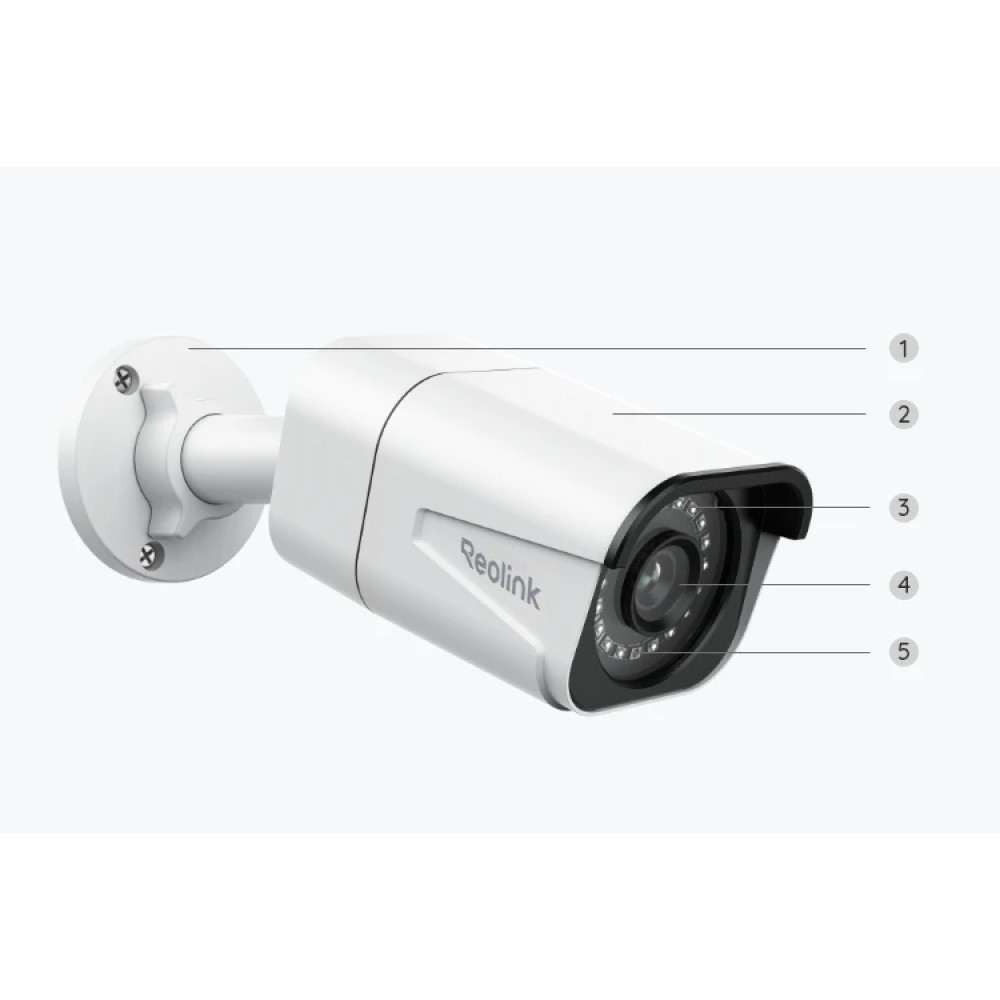

B800

Sensor & Video

• 1/2.49″ CMOS sensor

• 3840×2160 (8 MP) @20 FPS

Lens & View

• 4.0 mm fixed lens, F2.0, IR-cut

• Field of view: Horizontal 87°; Vertical 44°

Night & Day

• Auto IR cut filter

• Night vision up to 30 m / 100 ft (18 IR LEDs)

Streams & Format

• H.265

• Bitrate ranges (main & sub) specified

Audio

• Built-in audio recording

Detection/Recording Modes

• Smart alarms: people, vehicle, motion

• Recording modes: motion, scheduled, 24/7

Power

• PoE 802.3af & optional DC 12 V

Operating Conditions

• Temp: -10 °C to +55 °C

• Humidity: 10 %–90 %

• IP67 weatherproof

Dimensions & Weight

• Φ66 × 192 mm; ~485 g
