4-CAMERA IP BULLET KIT 2K+ 5MP POE WITH AI — 2TB - Reolink

NVS/8_5MB4

Status: In stock

CA$559.99

Description

Description

PRODUCT OVERVIEW

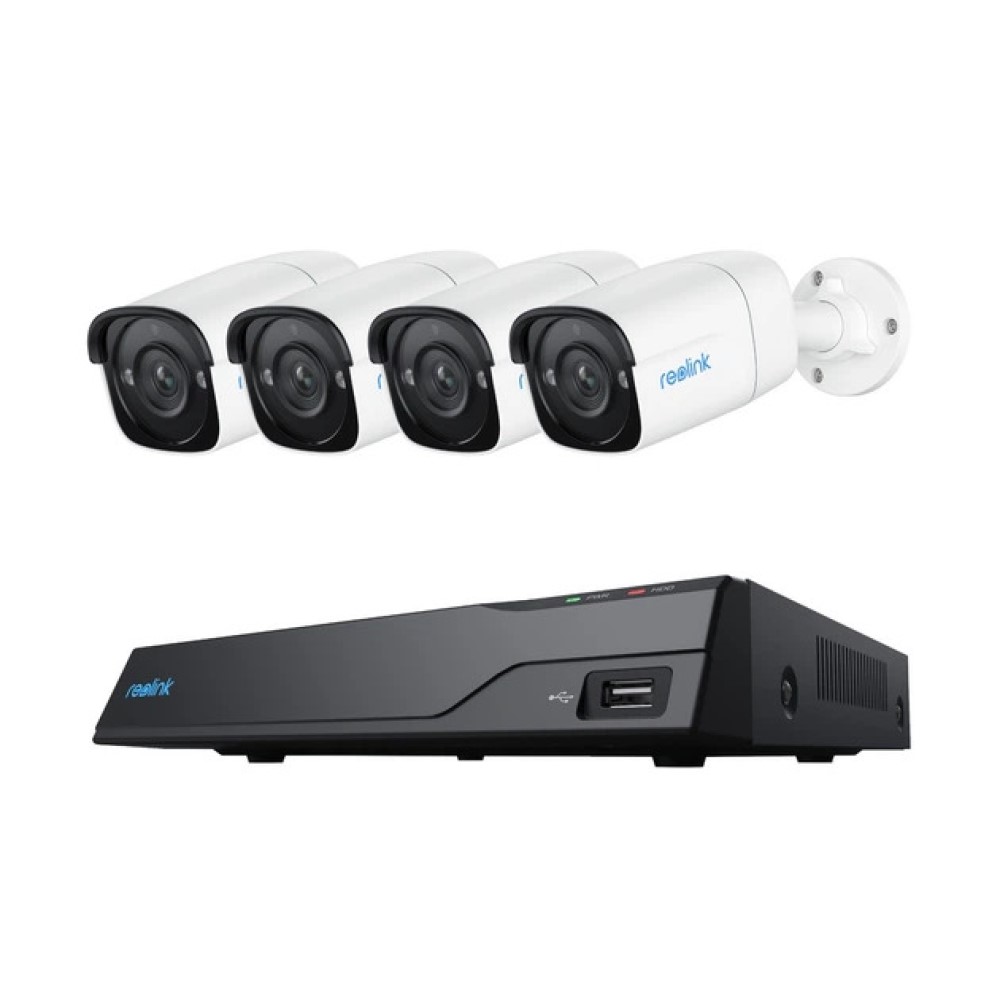

The Reolink NVS8-5MB4 Smart PoE NVR System is an all-in-one wired surveillance solution featuring an 8-channel PoE network video recorder (NVR) and four high-resolution PoE cameras for reliable 24/7 monitoring of homes, businesses, or properties. It delivers continuous security and smart alerts for suspicious activity.

This system includes a pre-installed 2 TB internal hard drive, expandable up to 16 TB, enabling extensive local storage of video footage without relying on an internet connection.


SURVEILLANCE PERFORMANCE



  • Advanced Smart Detection: Cameras intelligently distinguish people, vehicles, and animals, minimizing false alarms and sending push notifications when noteworthy activity occurs.

  • Clear Day & Night Vision: With Super HD resolution (5MP/4MP) and powerful infrared LEDs, the included cameras capture detailed footage up to approximately 30 m (100 ft) in total darkness.

  • 24/7 Recording: Continuous recording ensures no moment is missed, with smart playback filters for finding key events quickly.


EASY SETUP



Featuring Power over Ethernet (PoE), the system supports a plug-and-play installation — each camera receives both power and video signal over a single Ethernet cable, simplifying wiring.

Remote monitoring and system management are available through the Reolink App or VMS, allowing you to view, control, and playback footage from mobile devices or computers.


DAILY USE & RELIABILITY



  • Indoor/Outdoor Ready: The included PoE cameras are weatherproof and built for outdoor operation, providing dependable surveillance in diverse conditions.

  • Multi-Camera Live View: See several camera feeds simultaneously on one screen for comprehensive situational awareness.

  • Instant Alerts: Receive real-time notifications when motion or other smart detections occur.

Specifications

Specifications

B500/B400

Video & Audio
Image Sensor
1/2.7" CMOS  Sensor
Resolution
2560*1920(5Megapixels)@25FPS
Lens
f=4mm fixed, F=2, with IR Cut filter
Video Compression
H.265/H.264
Field of View
Horizontal: 80°;
Vertical: 48°
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
30 meters (100ft) (LED: 18pcs/14mil/850nm)
Audio
Audio recording
Power
PoE
IEEE 802.3af
DC Power
DC 12.0V⎓1A,  <12W
Interface
Power Port
DC power port
Ethernet Port
One  10M/100Mbps  RJ45
System
Reset button
Audio In/Out
Built-in Microphone
Software
Frame Rate
Mainstream: 2fps - 30fps (Default: 30fps);
Substream: 4fps - 15fps (Default: 10fps)
Code Rate
Mainstream: 1024Kbps - 8192Kbps (Default: 6144Kbps);
Substream: 64Kbps - 512Kbps (default: 160Kbps)
Smart Alerts
Motion detection; Person detection; Vehicle detection; Animal detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
Operating Temperature
-10°C~+55°C
Operating Humidity
10% ~ 90%
Weatherproof
IP67
Mechanical
Dimensions
Φ67*186mm
Weight (Without Accessories)
415g

NVS8

Hardware
Hardware
N7MB01
Video/Audio input
IP Video Input
Up to 12 IP cameras (max.8 wired cameras)
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output
1-channel, RCA
Decoding
Live View/Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
1 x SATA interface (1 × 2TB HDD included)
Capacity
Up to 16TB (max. 8TB capacity for each HDD)
External HDD
1 eSATA interface for HDD
External Interface
USB Interface
2 × USB 2.0
Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;
8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
Max. Power Per Port
25W
Capacity
IEEE 802.3 af/at
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browsers Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~53V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
260 x 41 x 230mm
Weight
1.4kg
