KIT DE 4 CAMERAS BULLET ULTRA HD 12MP POE 2TB IA REOLINK

NVS/8_12MB4

Status: In stock

CA$850.00

Description

Description

PRODUCT OVERVIEW

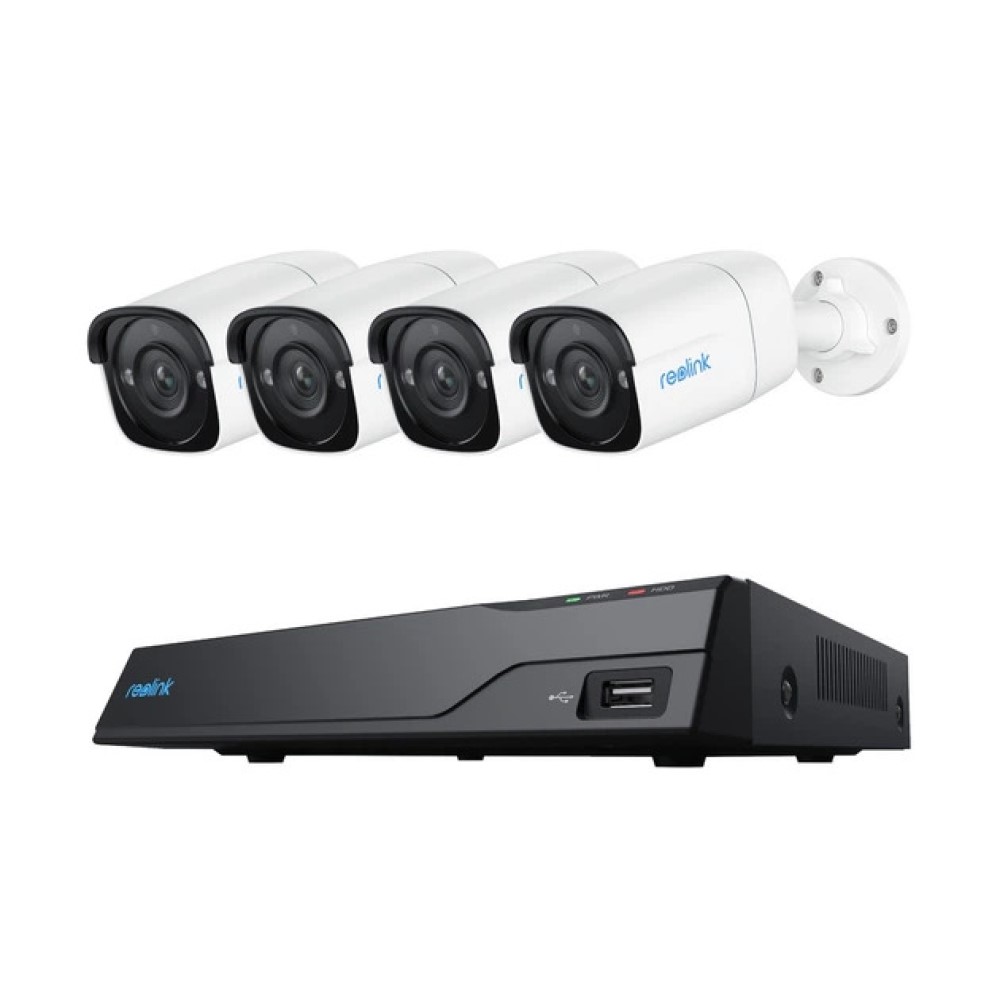

The Reolink NVS8-12MB4 is a complete PoE wired surveillance solution that includes an 8-channel Network Video Recorder (NVR) and four 12 MP PoE cameras. It is engineered to deliver high-resolution monitoring with clear imaging performance ideal for residential, commercial, or light industrial use.

Featuring 12 MP Ultra HD cameras, this system captures fine details that enhance the effectiveness of your security coverage.


SMART FEATURES & ALERTS



The system includes advanced smart detection features:

  • People, vehicle, and pet detection with shape analysis.

  • Real-time alerts sent to your devices for significant events.

  • Color and black-and-white night vision to maintain visibility in low light.

These intelligent alerts help you stay informed and respond quickly to important events.


EASY INSTALLATION



PoE (Power over Ethernet) simplifies setup by delivering both power and video over a single Ethernet cable per camera, eliminating separate power wiring.

The centralized NVR interface allows you to control and view all cameras from one platform, accessible via the Reolink app or VMS client on computers and mobile devices.


DURABILITY & RELIABILITY



Included cameras are IP67 weatherproof rated, suitable for both indoor and outdoor installation, delivering reliable performance in diverse weather conditions without compromising surveillance quality.


STORAGE & RECORDING



The system’s NVR includes a pre-installed 2 TB hard drive, offering ample local storage for recorded footage, with expandable storage support up to 16 TB for continuous 24/7 recording capabilities.

Specifications

Specifications

P340

Video & Audio
Image Sensor
1/2.49" CMOS  Sensor
Resolution
4512*2512(12Megapixels)@20FPS
Lens
f=4mm fixed, F=1.6, with IR Cut filter
Video Compression
H.265
Field of View
Horizontal: 93°;
Vertical: 49°
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
30 meters (100ft) (LED: 2pcs/28mil/850nm)
Audio
Two-way audio
Power
PoE
IEEE 802.3af,48V Active
DC Power
DC 12.0V⎓1A,  <12W
Interface
Storage
Micro SD card slot (Max. 256GB)
Ethernet Port
One  10M/100Mbps  RJ45
System
Reset button
Audio In/Out
Built-in Microphone
Working Environment
Operating Temperature
-10°C~+55°C
Operating Humidity
10% ~ 90%
Weatherproof
IP67
Software Features
Frame Rate
Mainstream: 2fps - 20fps (default: 20fps);
Substream: 4fps - 20fps (default: 10fps)
Code Rate
Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps);
Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Browsers Supported
Edge, Chrome, Firefox, Safari
Smart Alarm
Motion detection/person detection/vehicle detection/pet detection
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work with
Google Assistant
Mechanical
Dimensions
Φ67*187mm
Weight (Without Accessories)
460g

NVS8

Hardware
Hardware
N7MB01
Video/Audio input
IP Video Input
Up to 12 IP cameras (max.8 wired cameras)
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768;
VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output
1-channel, RCA
Decoding
Live View/Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
1 x SATA interface (1 × 2TB HDD included)
Capacity
Up to 16TB (max. 8TB capacity for each HDD)
External HDD
1 eSATA interface for HDD

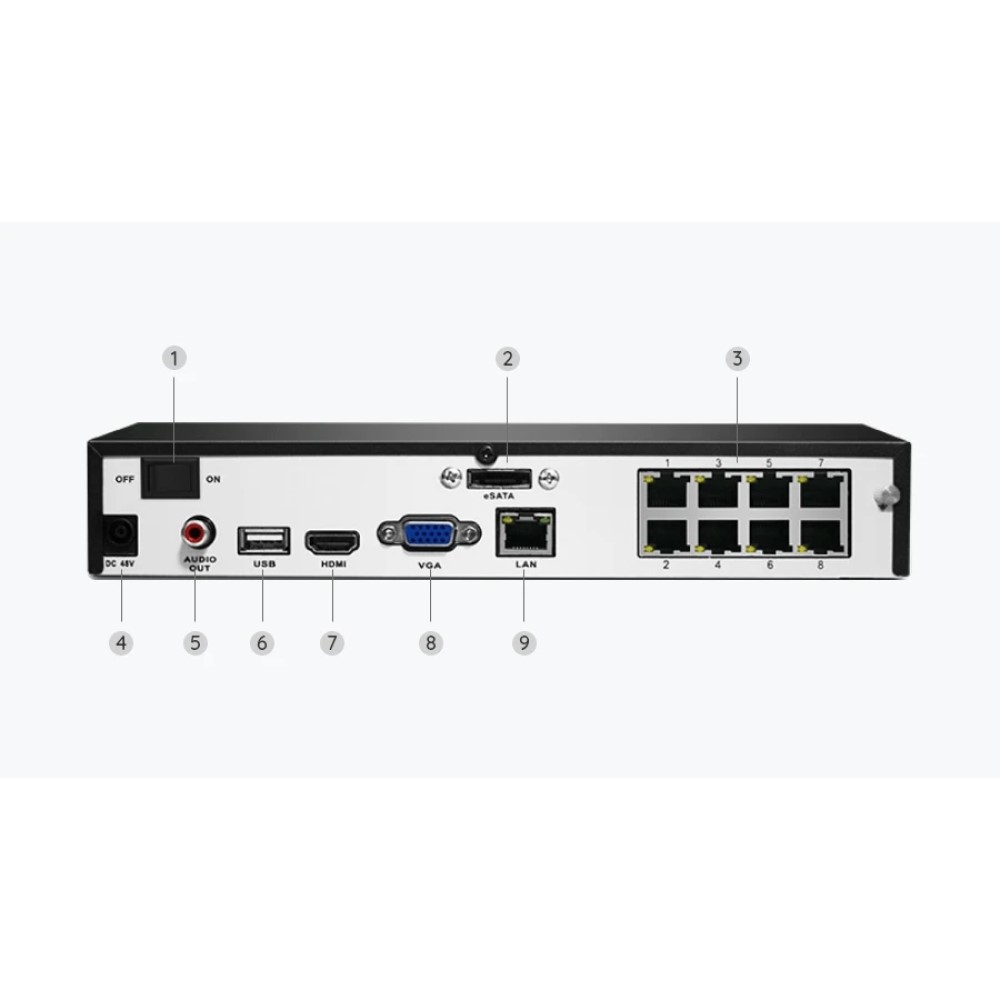

External Interface
USB Interface
2 × USB 2.0
Network Interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN;
8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
Max. Power Per Port
25W
Capacity
IEEE 802.3 af/at
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browsers Supported
Firefox, Chrome, Edge, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~53V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

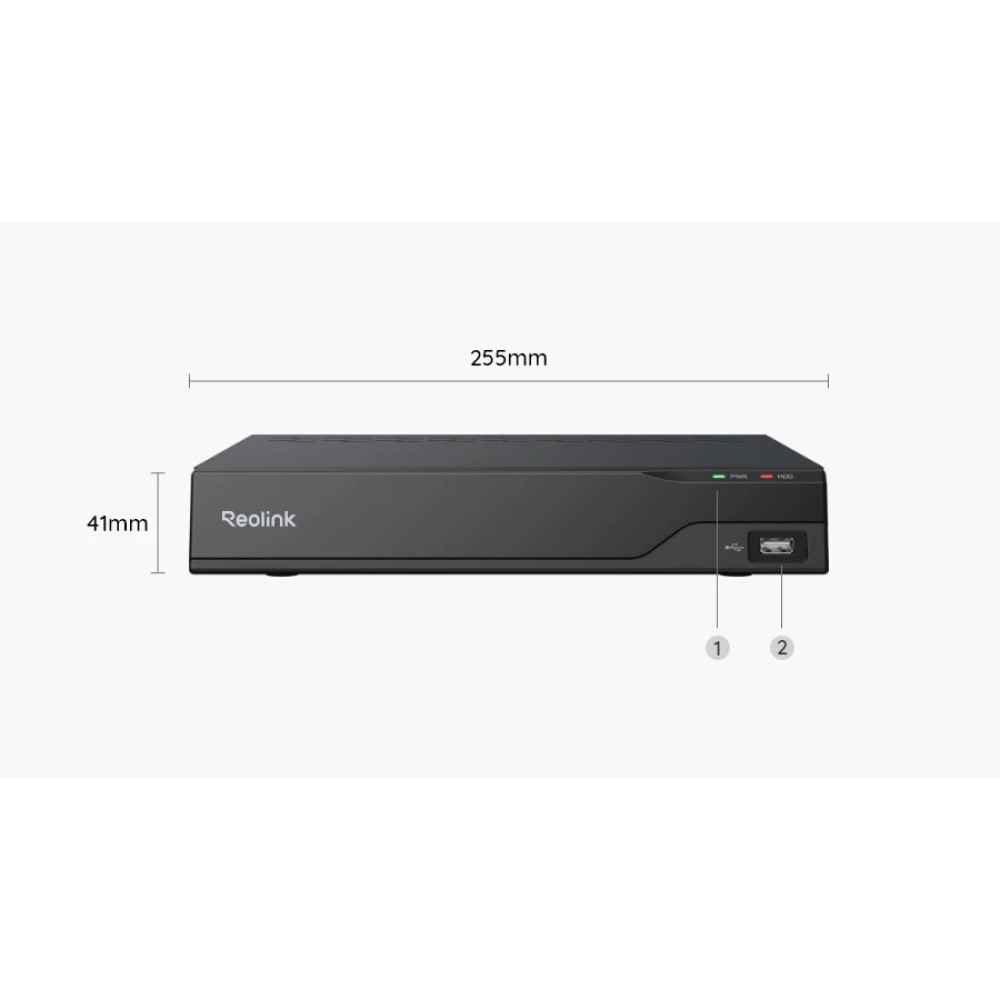

Dimensions
260 x 41 x 230mm
Weight
1.4kg
