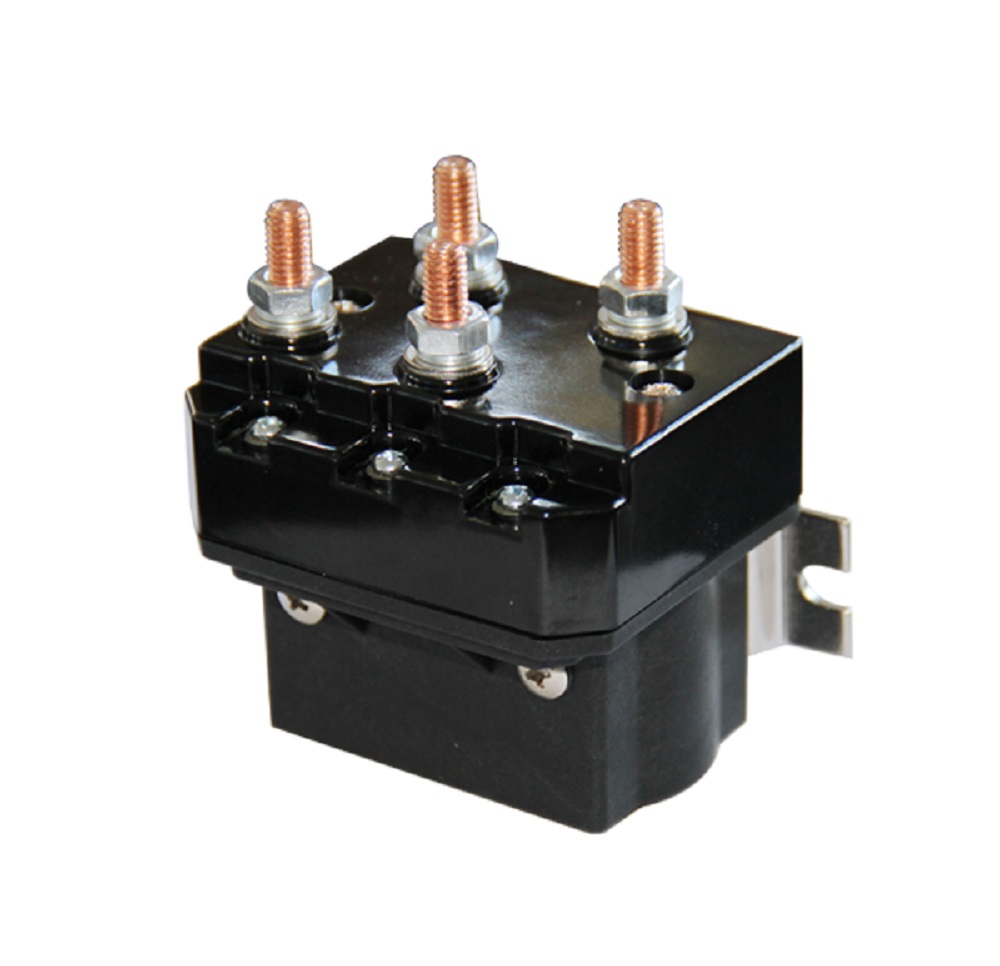

RELAIS 12VDC 250A POUR WINCH

LR4/250

Status: In stock

CA$29.99

Specifications

Specifications

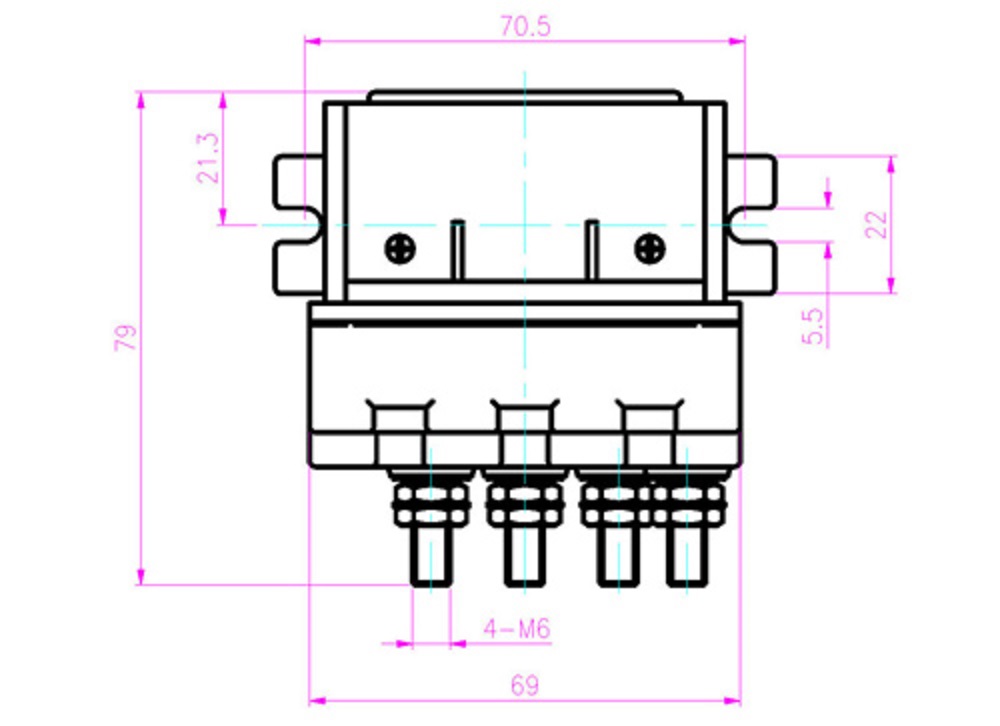

Outline Dimension(L*W*H) 80*59*80
Contact Form 2A,2C
Contact Resistance 50m   Ω
Coil Voltage 12VDC
Pick-up Voltage ≦  70%
Release Voltage ≧8%
Coil Power(W) 30W
Contact transfer 250A
Contact Rating 250A 12VDC
Insulation Resistance 100MΩ
Dielectric Strengh Between Open Contact 900VAC
Between Coil and Contact 900VAC
