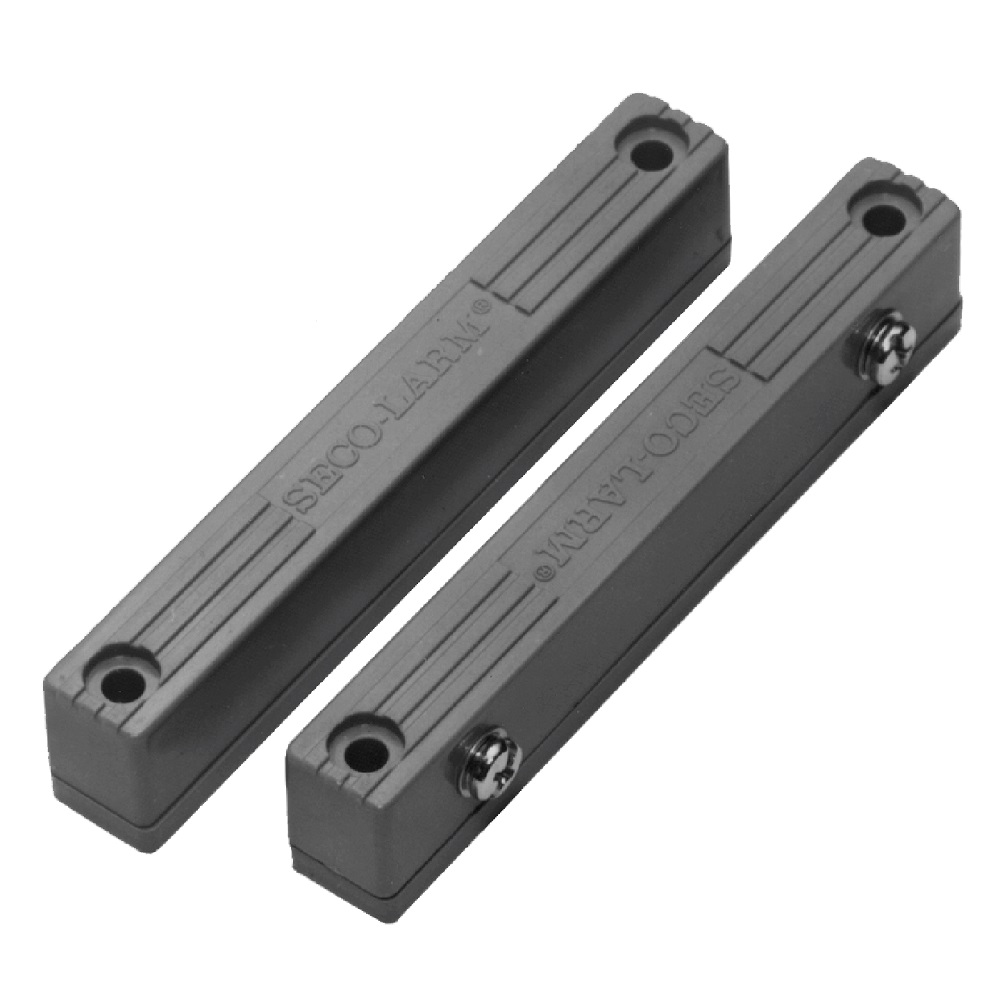

CONTACT SURFACE PORTE GARAGE SECO-LARM

SM2/16QGY

Status: Out of Stock

CA$19.99

Qty:

Description

Description

Surface-mount magnetic contacts
Screw mount
ABS plastic case has integrated mounting holes
Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
Wide 2-3/4″ (70mm) gap for loose-fitting doors and windows
Spacers included
Lifetime limited warranty
Grey case

Specifications

Specifications

Operating Voltage	12~24 VDC
Loop Type	Closed loop
Electrical Configuration	N/O
Operation Gap	2-3/4″ (70mm)
Terminals	Screw-type
Color	Gray
Material – Case	High-impact ABS plastic
Contacts	Deactivated rhodium on gold under-plating
Contact Rating	1.0A@10VDC (max), 10W (max)
Operating Temperature	-15º~+160º F (-25º~70º C)
Switch Cycles	50 Million (0.1mA@5VDC)
Switch Dimensions	3-15/16″ x 9/16″ x 1/2″ (100 x 14 x 13 mm)
Magnet Dimensions	3-15/16″ x 9/16″ x 1/2″ (100 x 14 x 13 mm)
Magnet Type	Alnico 5
