4-CAMERA IP DOME KIT 4K 8MP POE WITH AI — 2TB

NVS/8_8MD4

Status: In stock

CA$699.99

Description

Description

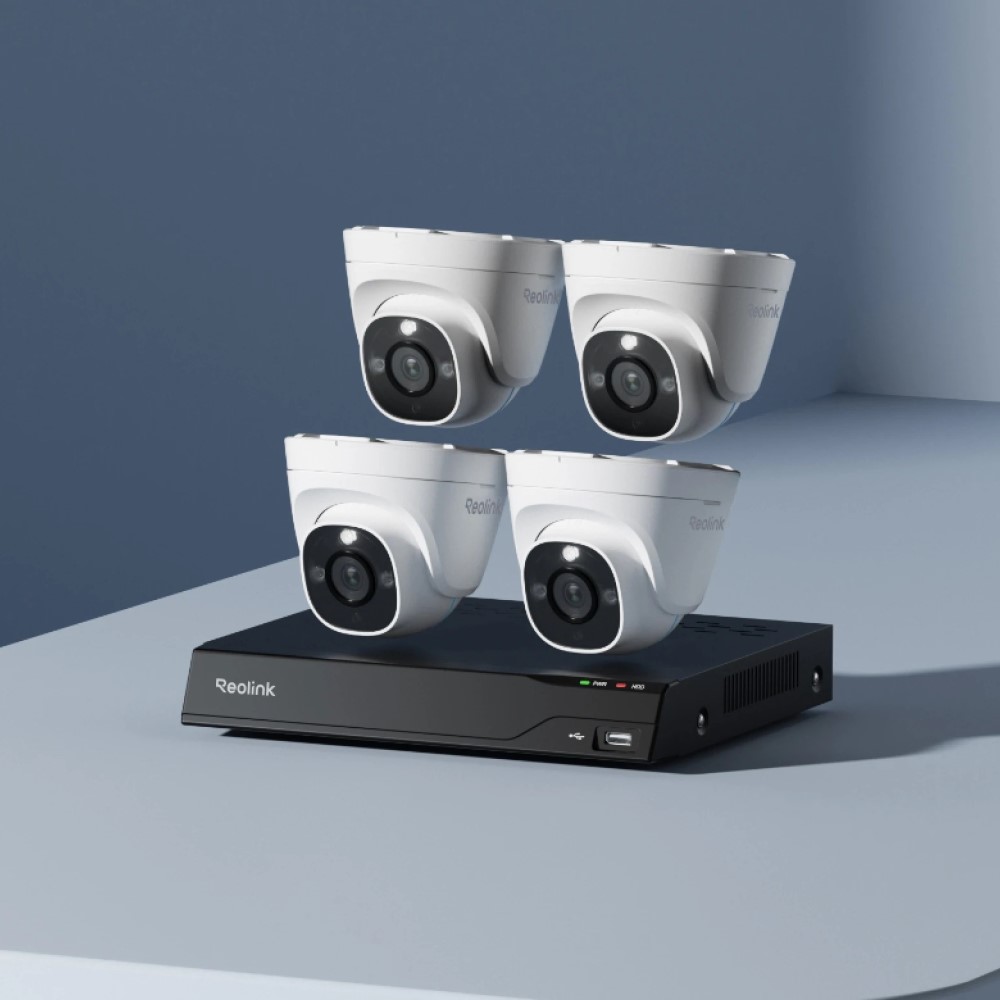

The Reolink NVS8-8MD4 is an 8-channel PoE security camera system with 4K Ultra HD (8 MP) cameras designed to provide comprehensive day and night surveillance with smart detection for people, vehicles, and animals. Its 4K resolution (3840 × 2160) delivers highly detailed footage, making it easier to identify important details even when digitally zooming in.

Each camera includes 18 powerful infrared LEDs that provide night vision up to about 30 meters (100 ft), with advanced noise reduction for clear imaging in darkness.

The system comes with a pre-installed 2 TB internal hard drive and supports storage expansion up to 16 TB, enabling continuous 24/7 recording across all cameras.

PoE (Power over Ethernet) technology simplifies installation by providing both power and data over a single cable for each camera.

Specifications

Specifications

RLN8-410

Video/Audio Input

  • Up to 12 IP cameras (max 8 wired PoE cameras

  • Cameras with built-in microphone

Video/Audio Output

  • Video outputs: HDMI, VGA

  • HDMI resolutions: 4096×3072, 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768

  • VGA resolutions: 1920×1080, 1440×900, 1280×1024, 1280×800, 1280×720, 1024×768

  • Audio output: 1-channel RCA

Decoding & Formats

  • Live/Playback resolutions: multiple up to 7680×2160

  • Video formats: H.264, H.265

  • Synchronous playback: up to 4 channels

Storage

  • SATA: 1 × (Seagate 2 TB HDD included)

  • Expandable up to 16 TB (max 8 TB per drive)

  • External HDD: 1 × eSATA

External Interfaces

  • USB: 2 × USB 2.0

  • Network: 1 LAN/WAN + 8 PoE ports

PoE

  • Max power per port: 25 W

  • Standards: IEEE 802.3af/at

Network

  • Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

  • Browser support: Edge, Firefox, Chrome, Safari

  • OS support: Windows, Mac OS; iOS, Android

  • Max users: 20

  • Max streams: 12

Power & Environment

  • DC 48 V supply

  • Power consumption < 10 W (no HDD & PoE)

  • Operating temperature: -10 °C ~ +45 °C

  • Humidity: 10 %–90 %

  • Size: 260 × 41 × 230 mm

  • Weight: 1.4 kg

  • Warranty: 2-year limited

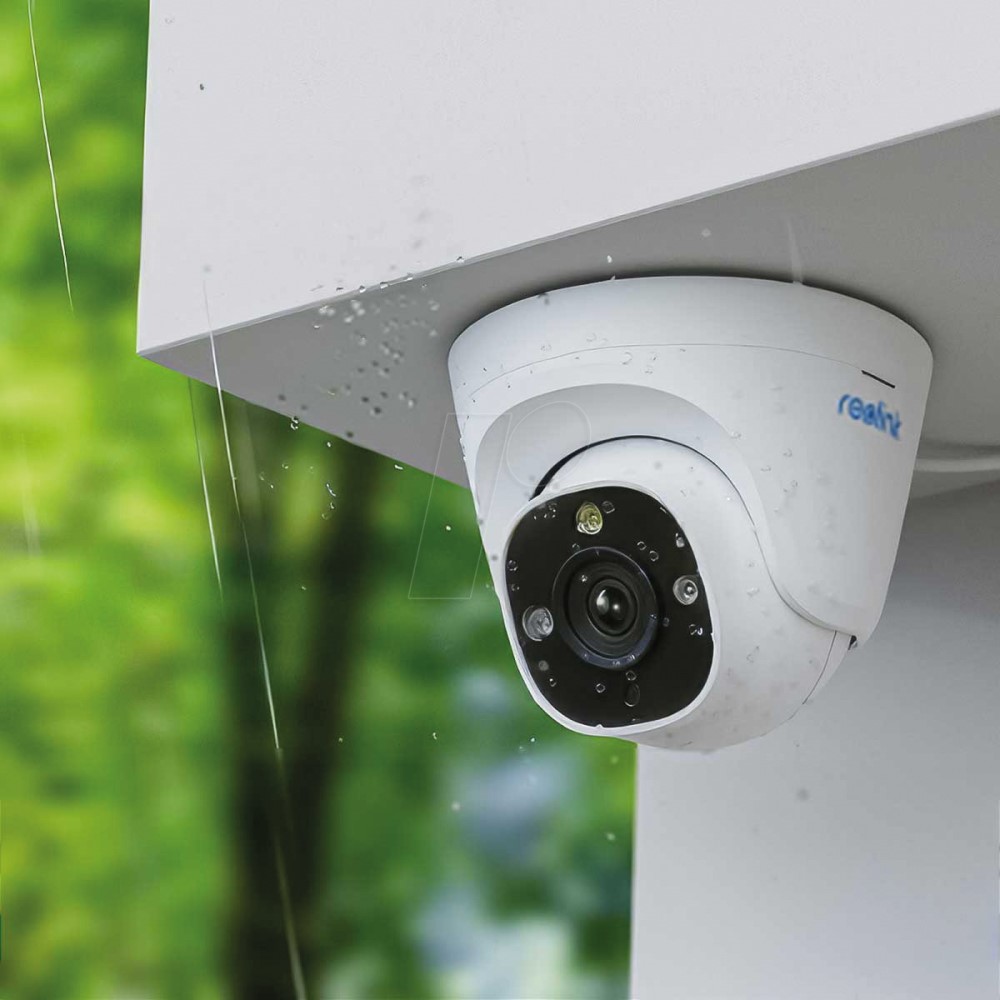

D800

Sensor & Video

  • 1/2.49″ CMOS

  • 3840×2160 (8 MP) @ 20 FPS

Lens & View

  • 4.0 mm fixed lens, F2.0, IR cut

  • Viewing angle: 87° H / 44° V

Night & Day

  • Auto IR-cut filter

  • Night vision up to 30 m / 100 ft (18 IR LEDs)

Streams & Format

  • H.265

  • Bitrate ranges (main & sub) provided

Audio

  • Built-in audio recording

Detection & Recording

  • Smart alarms: people, vehicle, motion

  • Recording modes: motion, scheduled, 24/7

Power

  • PoE IEEE 802.3af & optional DC 12 V

Operating Conditions

  • Temp: -10 °C to +55 °C

  • Humidity: 10 %–90 %

  • Weatherproof IP67

Dimensions & Weight

  • Camera approx. Ø105 × 93 mm / ~480 g
