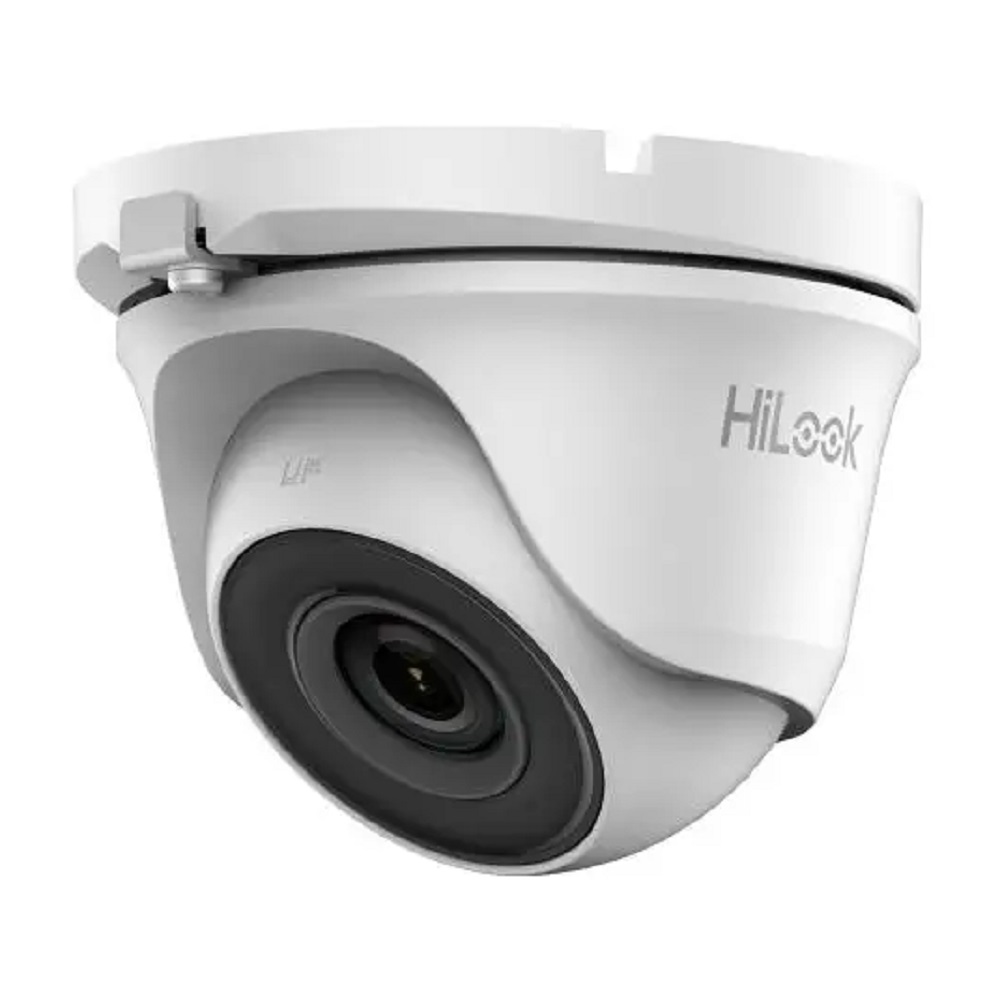

CAM HD TURRET EXT 5MP IR HI-LOOK/HIKVISION

Status: In stock

CA$52.00

LENTILLE *: 2.8mm 3.6mm

Qty:

Description

Description

Outdoor Turret,
Metal camera body,
5MP,
One port for four switchable signals(TVI/AHD/CVI/CVBS),
IR 20m,
IP66,
12VDC

Specifications

Specifications

Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR, AGC
Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

CVI: 4 M @ 30 fps, 4 M @ 25 fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL

Interface
Video Output1 HD analog output

General
MaterialMetal
DimensionØ 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
WeightApprox. 230 g (0.51 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ±25%
Consumption
Max. 4.3 W
IR RangeUp to 20 m
