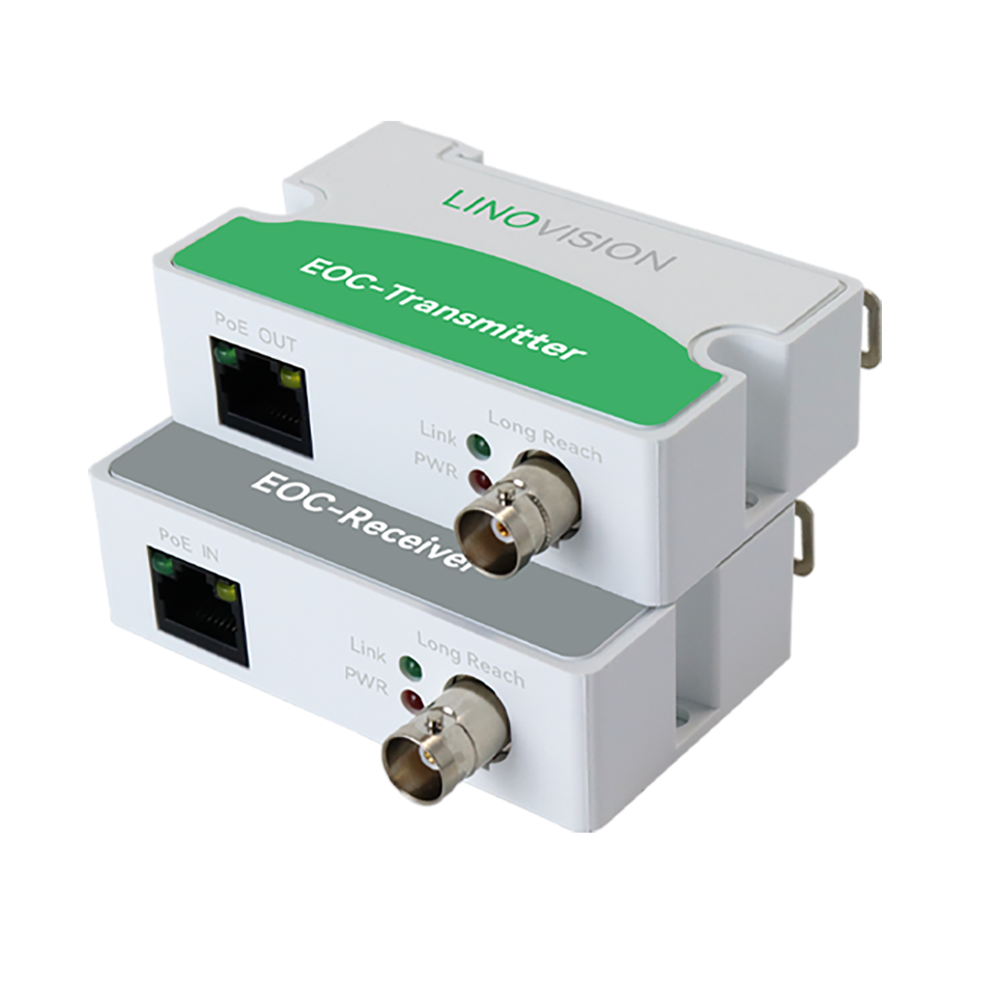

UltraReach PoE + Ethernet over Coax

LR1/002KIT

Status: In stock

CA$139.99

Description

Description

  • PoE & IP OVER COAX CONVERTER - POE IP Over Coax converter can be used to upgrade analog system to IP surveillance system while using existing coaxial cable. Compatible with RG59, RG6, RG11 cables. Supports POE standards 802.3af (PoE) and 802.3at (PoE+).
  • POE & IP OVER TWIST PAIR CONVERTER - Each pair of EOC(Ethernet over Coax) Converter is equipped with 2 BNC to Twist Pair connectors, which enables POE over Twist Pair transmission. 100Mbps bandwidth over 100m regular twist pair cables while 10Mbps over 453m for both POE or NON-POE devices. It’s ideal for the CCTV system in elevator cart.
  • INDUSTRIAL DESIGN WITH BUILT-IN HEAT SINK - Industrial design, with built-in heat sink, ensure super reliability and hassle free transmission. Indoor use ONLY. Plug-and-play, configuration free, makes installation simplest. Small design and light weight.

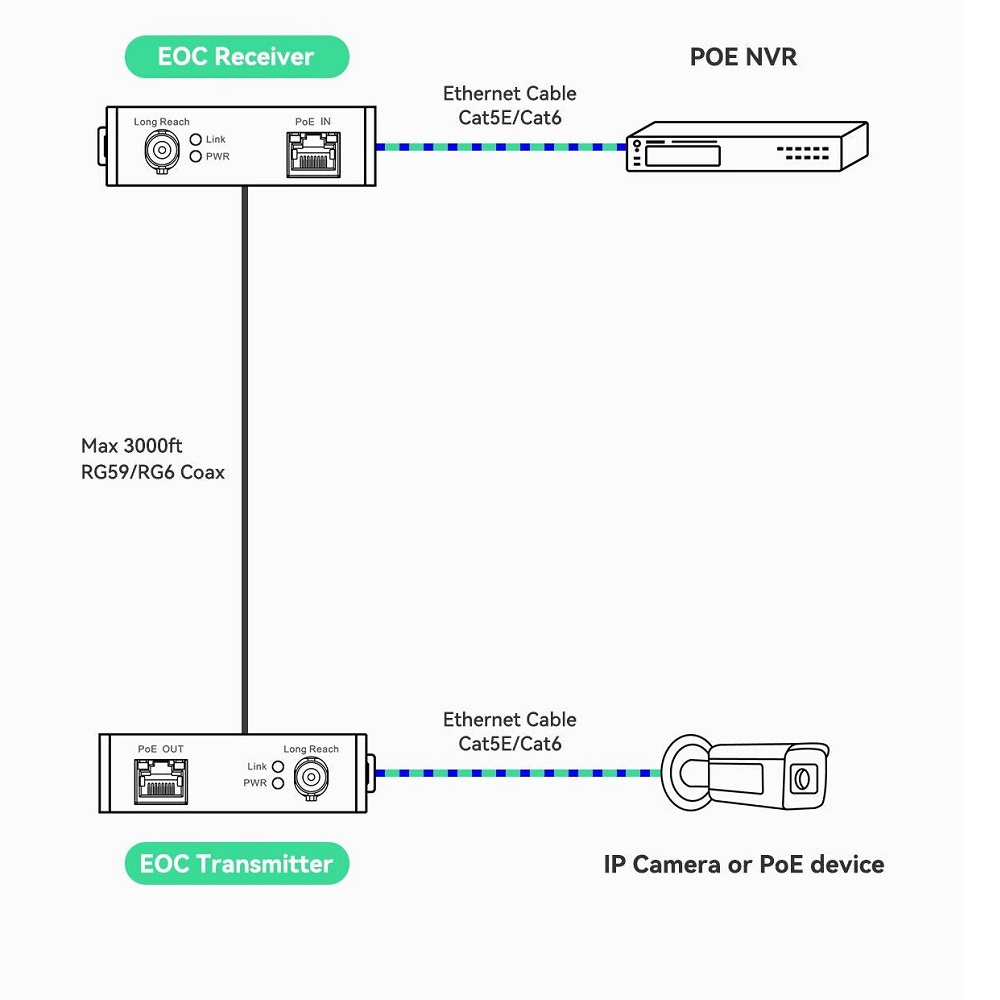

  • POINT TO POINT CONNECTION ONLY - Act as MoCA (Multimedia over Coax) in point-to-point connection, transmit video/audio/data/control signal over coaxial cable, so as being used with twist pair. EOC Receiver should be powered by POE switch or POE injector while Transmitter should be connected with POE devices or NON-POE devices.

Specifications

Specifications

Upgrade traditional analogue video surveillance system to IP surveillance system with existing coaxial cable at max 3,000ft distance.Up to100Mbps bandwidth over 1,000 feet regular coax cable transmission, working with CCA/CCU RG59/RG6 cable

There are some locations that are without network cables but still need POE power and data transmission, for example, elevator carts in many buildings, or doorbell cables, LINOVISION EOC converters are perfect for this application. It can transmit POE power and IP data over coax RG59 cable, twisted pair cable, doorbell cable, telephone cable, or even power cables. The remote-connected device can be IP cameras, IP Video intercoms, IP phones, IP controllers, etc.

1. Over twisted Pair Cable

2. Application for Non-POE

3. For POE VoIP Phone over coax / twist pair cables

4. POE power + Data transmission for non-POE DC12V Devices

5.Long Reach PoE up to 3,300ft

6. Power + Data bi-direction transmission to POE Wi-Fi AP (48V POE device only)

7.For ePoE IP camera over Coaxial Cable

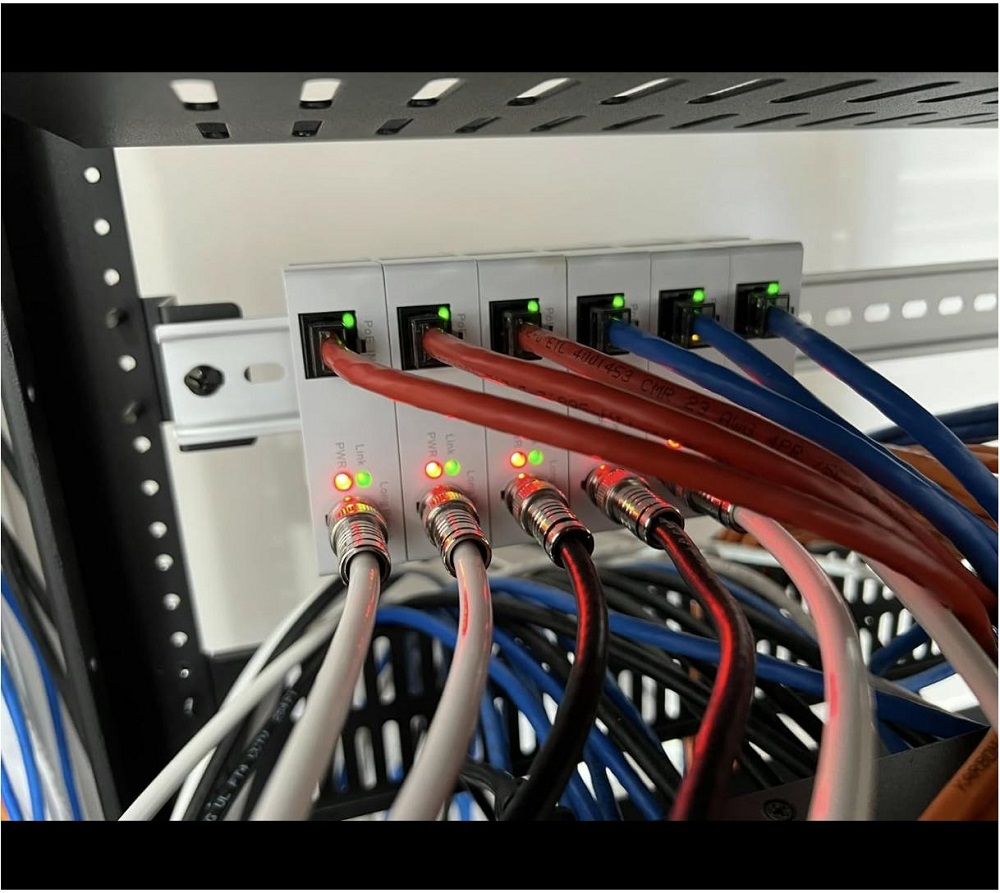

8.For multiple PoE over Coax Cables application in one system
