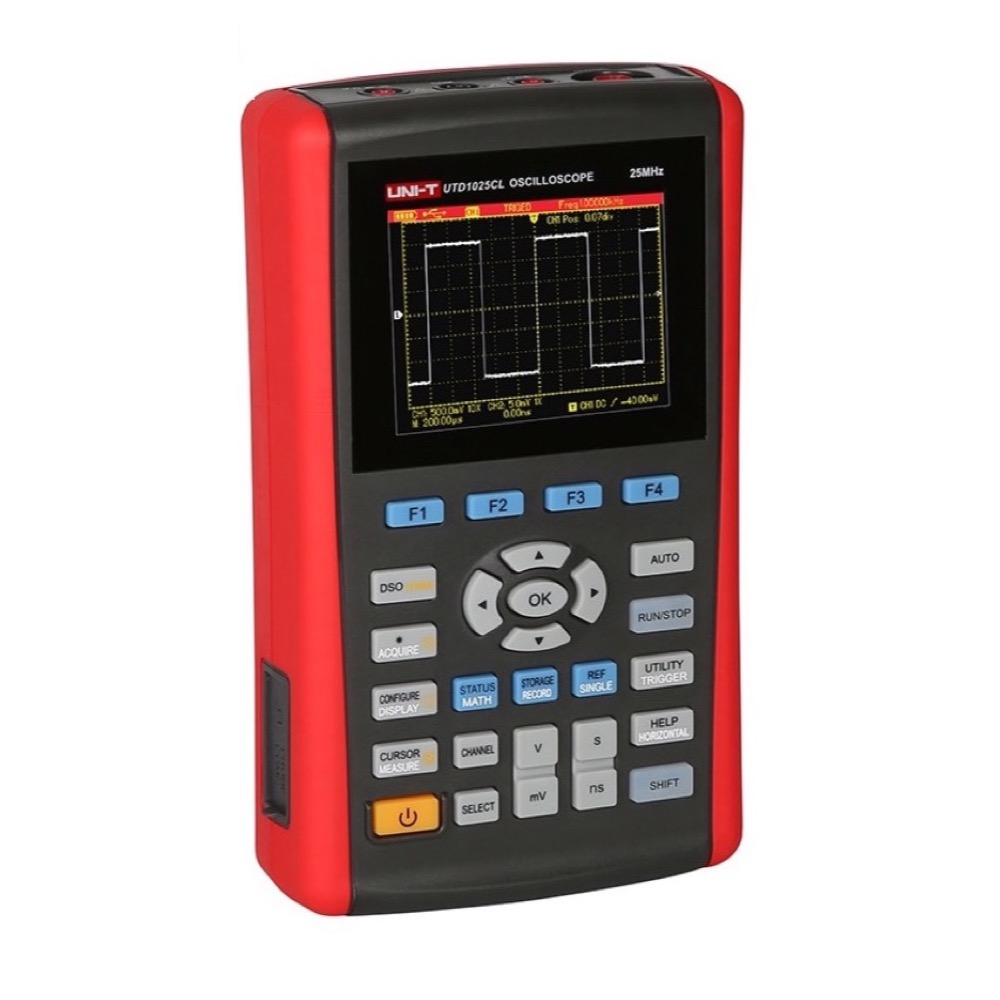

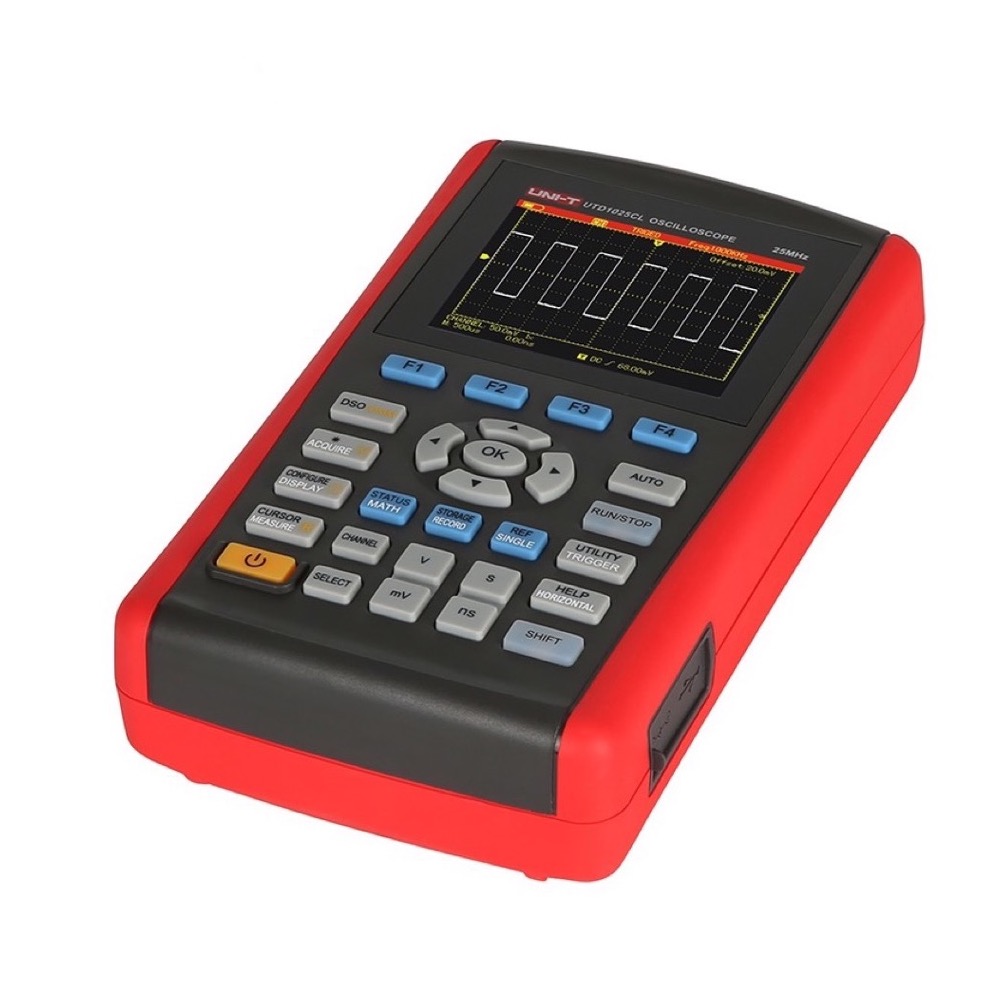

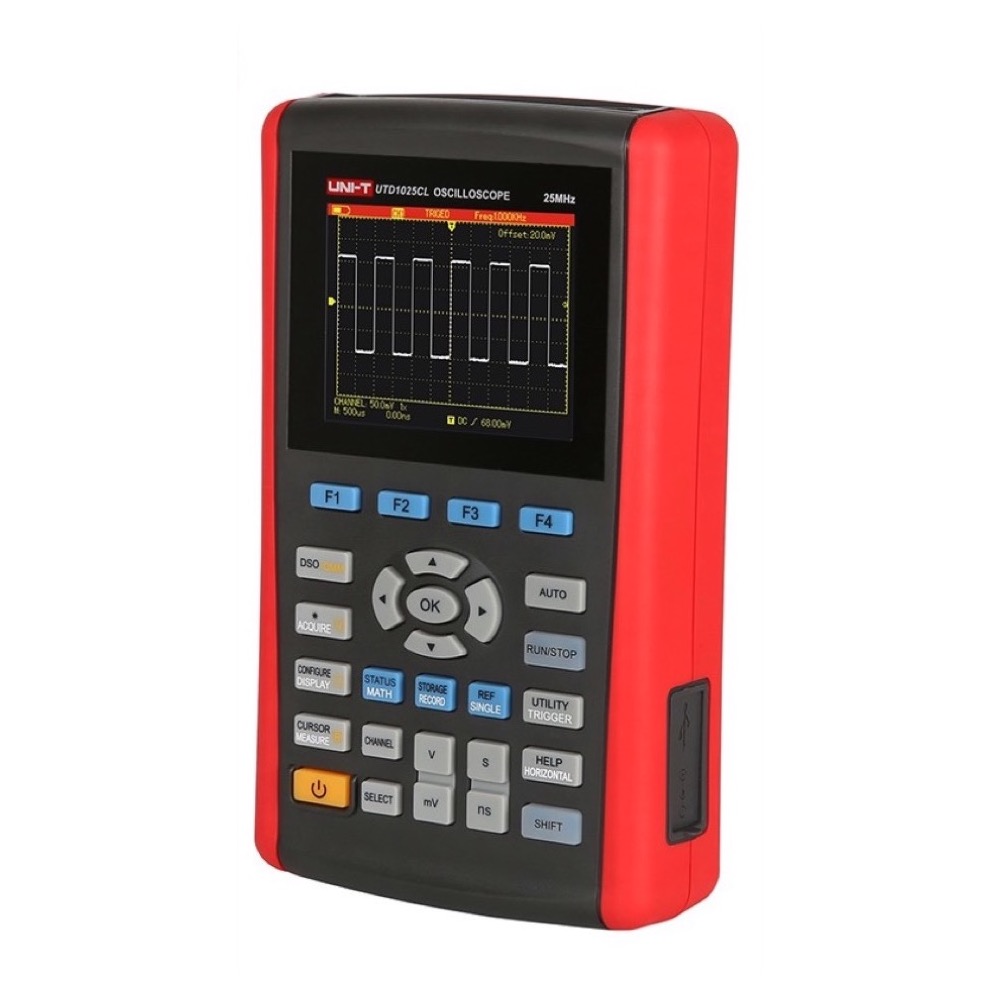

OSCILLOSCOPE DIGITAL 25MHZ PORTABLE

UTD/1025CL

Status: In stock

CA$399.99

Description

Description

UTD1000L series are economical instruments with the functions of oscilloscope and multimeter.

They are ergonomic, lightweight, universal instruments designed for engineers.

Specifications

Specifications



Specifications

Model

UTD1025CL

Bandwidth

25MHz

Channels

1

Sampling rate

250MS/s

Rise time

≤14ns

Memory depth

12kpts

Vertical scale (V/div)

5mV/div~20V/div

Time base scale (s/div)

10ns/div~50s/div

Storage methods

Setup, waveform, bitmap

Trigger types

Edge, pulse width, video, slope

Interface

Mini USB

Multimeter Specifications

Range

Accuracy

DC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1%+5)

AC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1.2%+5)

DC current (A)

400μA/ 4000μA

±(1.2%+5)

40mA/ 4000mA

±(1%+5)

4A

±(1.5%+5)

AC current (A)

400μA/ 4000μA

±(2%+5)

40mA/ 4000mA

±(1.5%+5)

4A

±(2.5%+5)

Resistance (Ω)

400Ω/4kΩ/40kΩ/400kΩ/4MΩ

±(1.2%+5)

40MΩ

±(1.5%+5)

Capacitance (F)

51.2nF/512nF/5.12μF/51.2μF/100μF

±(3%+5)

Display count

4000

General Characteristics

Power

Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output

Display

3.5 inches 64k TFT LCD, 320 x 240

Product color

Red and grey

Product net weight

0.9kg

Product size

199mm x 118 mm x 49mm

Standard accessories

Probe x 1 (1x, 10x switchable), power cord, adaptor, USB interface cable, current-to-voltage convertor, test leads

Standard individual packing

Carton box, carrying bag

Standard quantity per carton

2pcs

Standard carton measurement

305mm x 190mm x 330mm

Standard carton gross weight

UTD1000CL: 4.6kg; UTD1000CL: 3.3kg



Model comparison:



Specifications

Model

UTD1025CL

UTD1050CL

UTD1025DL

UTD1050DL

Bandwidth

25MHz

50MHz

25MHz

50MHz

Channels

1

2

Sampling rate

250MS/s

Rise time

≤14ns

≤7ns

≤14ns

≤7ns

Memory depth

12kpts

Vertical scale (V/div)

5mV/div~20V/div

Time base scale (s/div)

10ns/div~50s/div

5ns/div~50s/div

10ns/div~50s/div

5ns/div~50s/div

Storage methods

Setup, waveform, bitmap

Trigger types

Edge, pulse width, video, slope

Interface

Mini USB

Multimeter Specifications

Range

Accuracy

DC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1%+5)

AC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1.2%+5)

DC current (A)

400μA/ 4000μA

±(1.2%+5)

40mA/ 4000mA

±(1%+5)

4A

±(1.5%+5)

AC current (A)

400μA/ 4000μA

±(2%+5)

40mA/ 4000mA

±(1.5%+5)

4A

±(2.5%+5)

Resistance (Ω)

400Ω/4kΩ/40kΩ/400kΩ/4MΩ

±(1.2%+5)

40MΩ

±(1.5%+5)

Capacitance (F)

51.2nF/512nF/5.12μF/51.2μF/100μF

±(3%+5)

Display count

4000

General Characteristics

Power

Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output

Display

3.5 inches 64k TFT LCD, 320 x 240

Product color

Red and grey

Product net weight

0.9kg

Product size

199mm x 118 mm x 49mm

Standard accessories

Probe x 1 (1x, 10x switchable) (UTD1000CL), power cord, adaptor,
Probe x 2 (1x, 10x switchable) (UTD1000DL), USB interface cable,
current-to-voltage convertor, test leads

Standard individual packing

Carton box, carrying bag

Standard quantity per carton

2pcs

Standard carton measurement

305mm x 190mm x 330mm

Standard carton gross weight

UTD1000CL: 3.3kg; UTD1000DL: 4.6kg





Model comparison:



Specifications

Model

UTD1025CL

UTD1050CL

UTD1025DL

UTD1050DL

Bandwidth

25MHz

50MHz

25MHz

50MHz

Channels

1

2

Sampling rate

250MS/s

Rise time

≤14ns

≤7ns

≤14ns

≤7ns

Memory depth

12kpts

Vertical scale (V/div)

5mV/div~20V/div

Time base scale (s/div)

10ns/div~50s/div

5ns/div~50s/div

10ns/div~50s/div

5ns/div~50s/div

Storage methods

Setup, waveform, bitmap

Trigger types

Edge, pulse width, video, slope

Interface

Mini USB

Multimeter Specifications

Range

Accuracy

DC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1%+5)

AC voltage (V)

400mV/ 4V/ 40V/ 400V

±(1.2%+5)

DC current (A)

400μA/ 4000μA

±(1.2%+5)

40mA/ 4000mA

±(1%+5)

4A

±(1.5%+5)

AC current (A)

400μA/ 4000μA

±(2%+5)

40mA/ 4000mA

±(1.5%+5)

4A

±(2.5%+5)

Resistance (Ω)

400Ω/4kΩ/40kΩ/400kΩ/4MΩ

±(1.2%+5)

40MΩ

±(1.5%+5)

Capacitance (F)

51.2nF/512nF/5.12μF/51.2μF/100μF

±(3%+5)

Display count

4000

General Characteristics

Power

Li-ion battery: 7.4V 3600mAh; DC adapter: 100V~240V, 50/60Hz input, 9V/4A output

Display

3.5 inches 64k TFT LCD, 320 x 240

Product color

Red and grey

Product net weight

0.9kg

Product size

199mm x 118 mm x 49mm

Standard accessories

Probe x 1 (1x, 10x switchable) (UTD1000CL), power cord, adaptor,
Probe x 2 (1x, 10x switchable) (UTD1000DL), USB interface cable,
current-to-voltage convertor, test leads

Standard individual packing

Carton box, carrying bag

Standard quantity per carton

2pcs

Standard carton measurement

305mm x 190mm x 330mm

Standard carton gross weight

UTD1000CL: 3.3kg; UTD1000DL: 4.6kg
