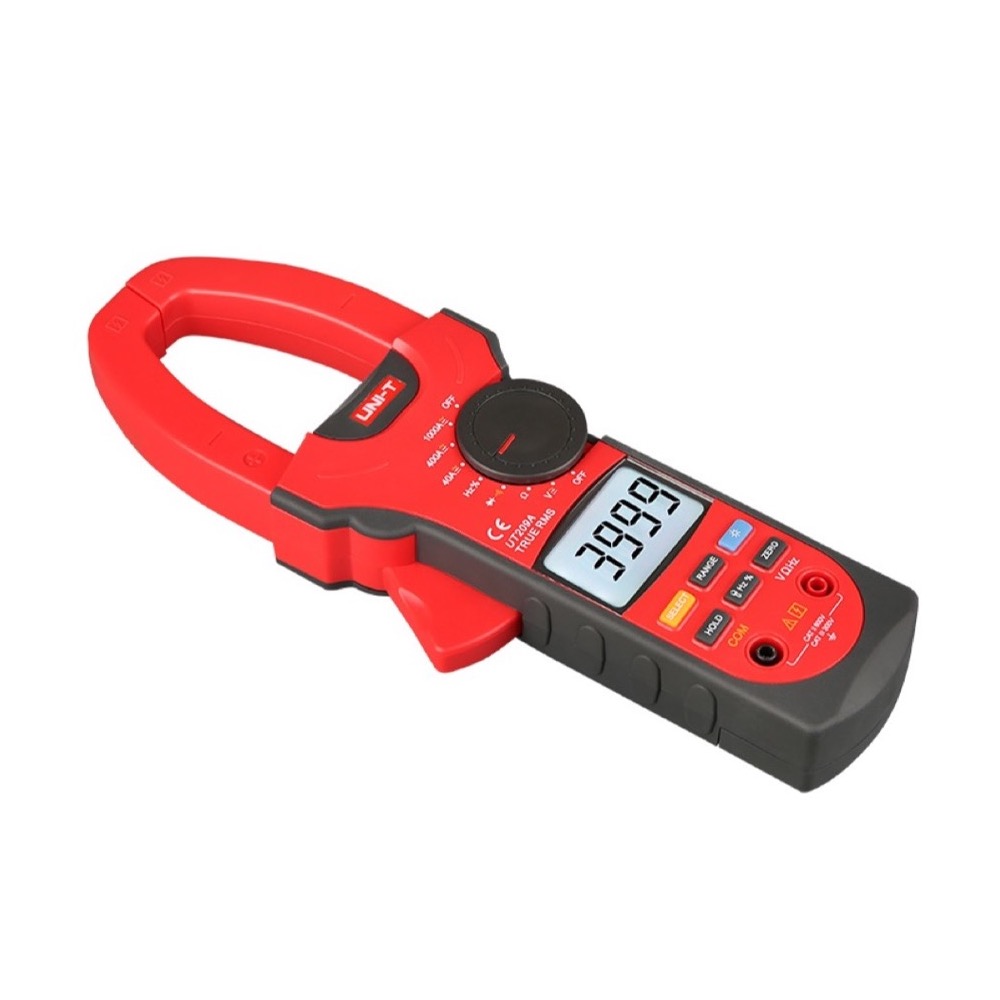

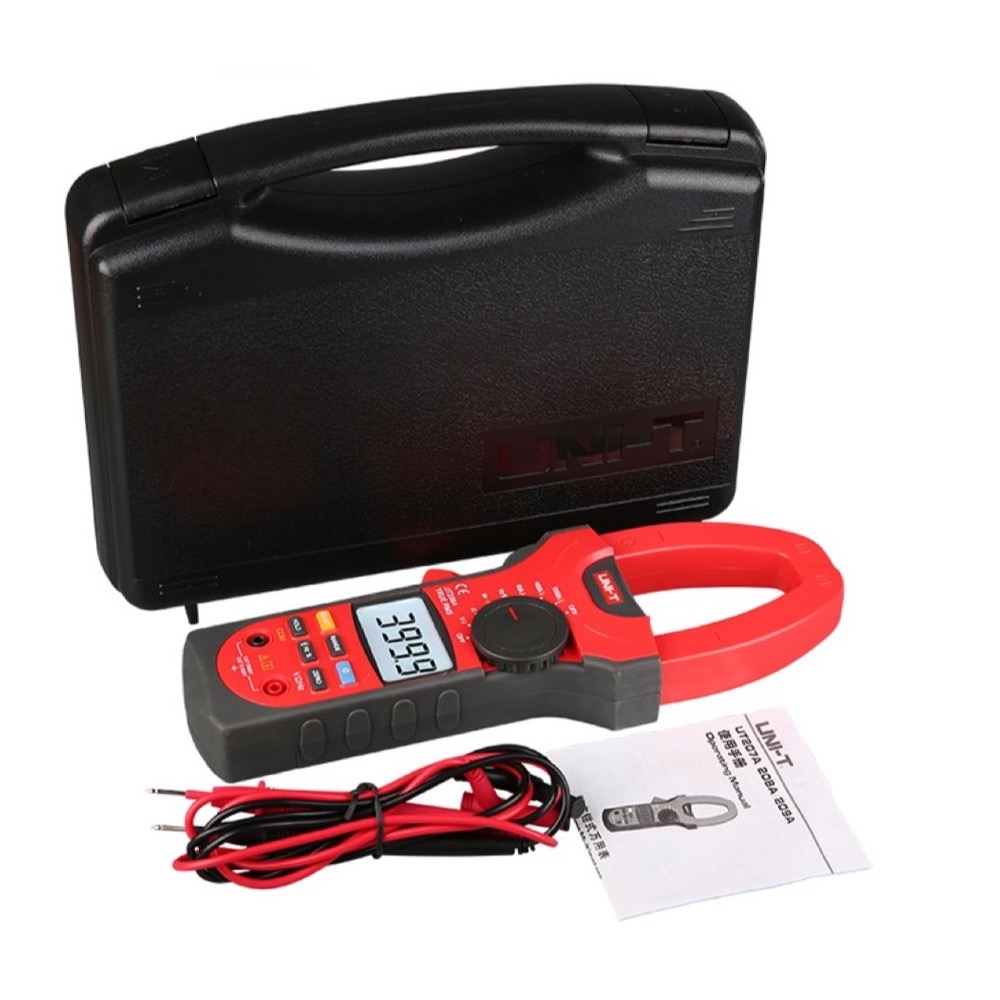

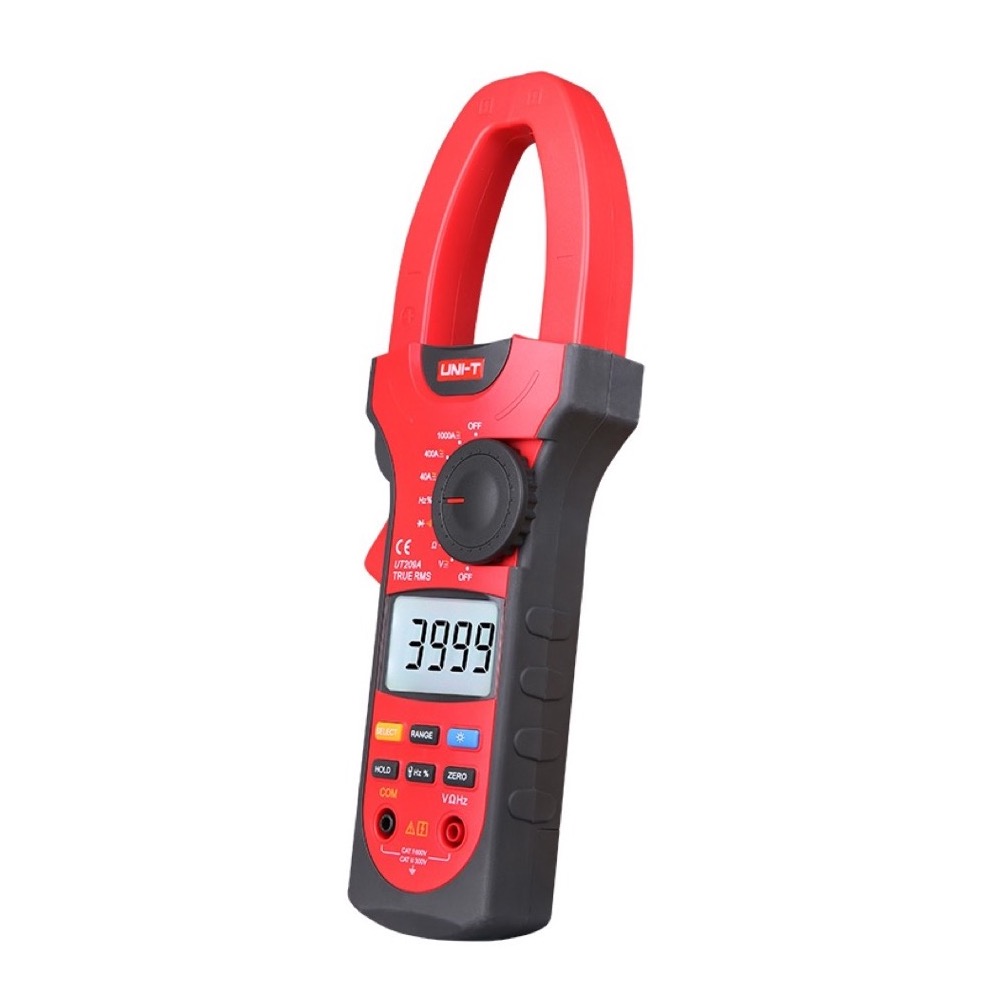

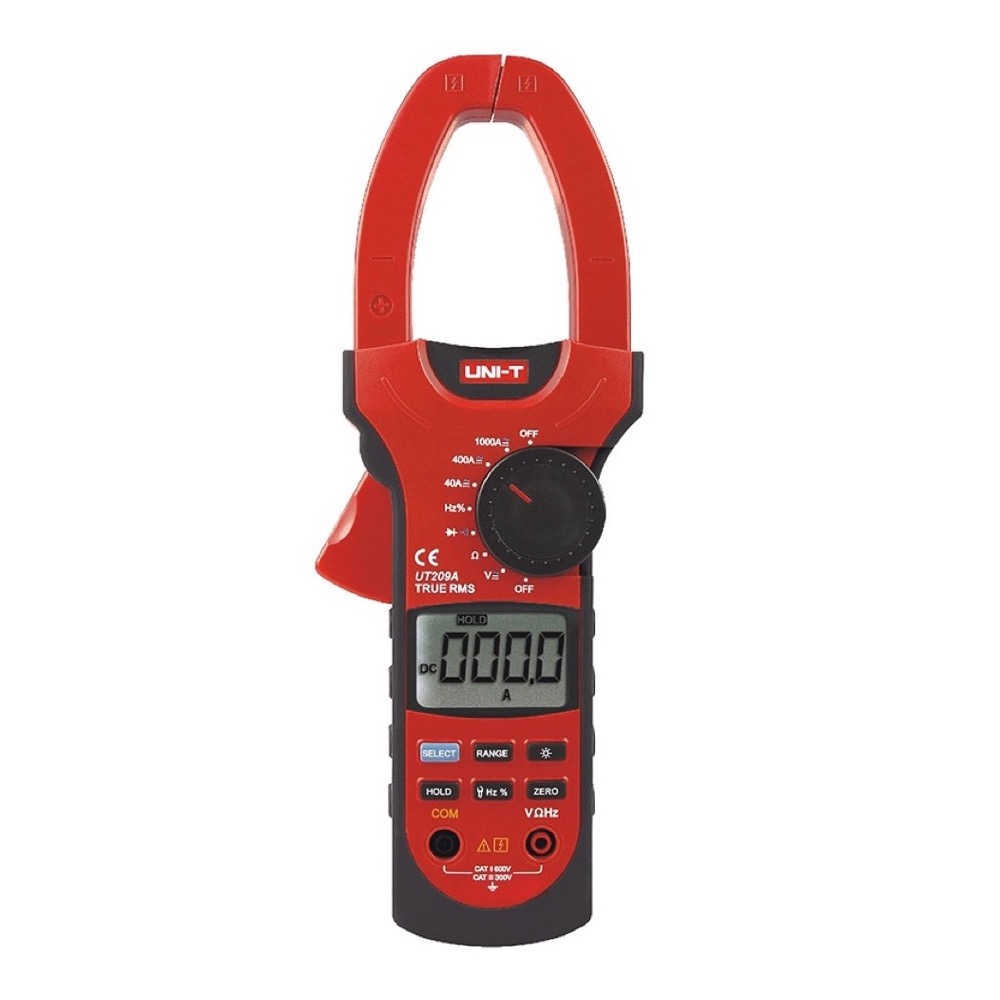

AMPEREMETRIQUE AC/DC 1000A 750VAC 1000VDC

UT2/09A

Status: In stock

CA$149.99
  • 10 - CA$134.99 per UN
  • 100 - CA$112.49 per UN

Description

Description

● 1000A AC/DC current measurement, 3 times/s sampling rate
● Auto/manual ranges selectable
● True RMS
● Analog bar graph
● Inrush current
● Zeroing function
● Full icon display
● MAX/MIN
● LCD backlight
● Data hold
● Auto power off and low battery indication
● Diode; Continuity buzzer; Input Impedance for DCV

Specifications

Specifications

Specifications Range UT207 UT208 UT209 UT207A UT208A UT209A
AC current (A) 1000A ±(2%+8) ±(2%+8) ±(2%+8) ±(2%+2) ±(2%+2) ±(2%+2)
DC current (A) 1000A ±(1.5%+8) ±(1.5%+8) ±(1.5%+8) ±(1.5%+5) ±(1.5%+5) ±(1.5%+5)
AC voltage (V) 600V ±(1.2%+5) ±(1.2%+5) ±(1.2%+5)
750V       ±(1.2%+3) ±(1.2%+3) ±(1.2%+3)
DC voltage (V) 600V ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
1000V       ±(0.8%+1) ±(0.8%+1) ±(0.8%+1)
Resistance (Ω) 40MΩ     ±(1%+2) ±(1%+2) ±(1%+2) ±(1%+2)
66MΩ ±(1%+2) ±(1%+2)
Capacitance (F) 100μF         ±(4%+3)
Frequency (Hz) 10MHz       ±(0.1%+3) ±(0.1%+3) ±(0.1%+3)
40MHz     ±(0.1%+3)
