ALIMENTATION DOUBLE 0-32V 0-5A + 5V 3A

UTP/3305II

Status: In stock

CA$399.99

Description

Description

  • 3-channel linear DC power supplies feature
  • High-precision four-digit voltage and current display, 10mV/1mA
  • Low ripple/noise
  • Constant voltage/current, OVP, OCP, OTP, reverse polarity protection
  • Parallel/series output function
  • Output on/off control
  • Intelligent temperature control fan

Specifications

Specifications

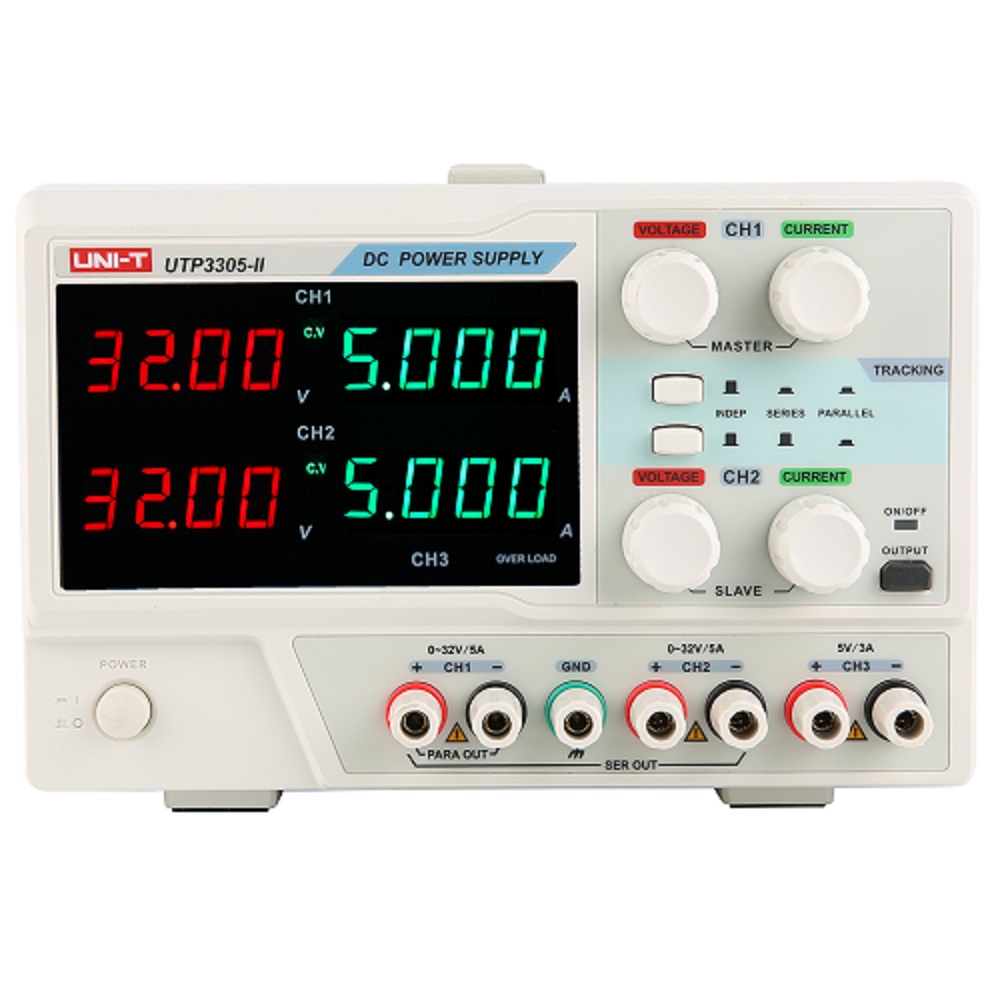

Model UTP3305-II
Output voltage CH1, CH2 0~32V, CH3 5V
Output current CH1, CH2 0~5A, CH3 3A
Output power 335W
Load regulation CV<0.01%+3mV,CC≤0.2%+3mA
Ripple and noise CV≤1mVrms; CC≤3mArms
Output regulate resolution CV: 10mV (typical), CC: 1mA (typical)
Tracking bias ±(0.1% of reading+30mV)
CC:±(0.3% of reading+10mA)
Reliability MTBF(e): ≥2000hrs
Display mode 4-bit voltage and current dual display
CH1 and CH2 master-slave tracking in series
Power Input voltage: 115V AC/230V AC; Frequency: 47Hz~63Hz
Display 4 windows,LED
Product color White and grey
Product size (W×H×D) 319mm×146mm×226mm
Product net weight 10.5kg
