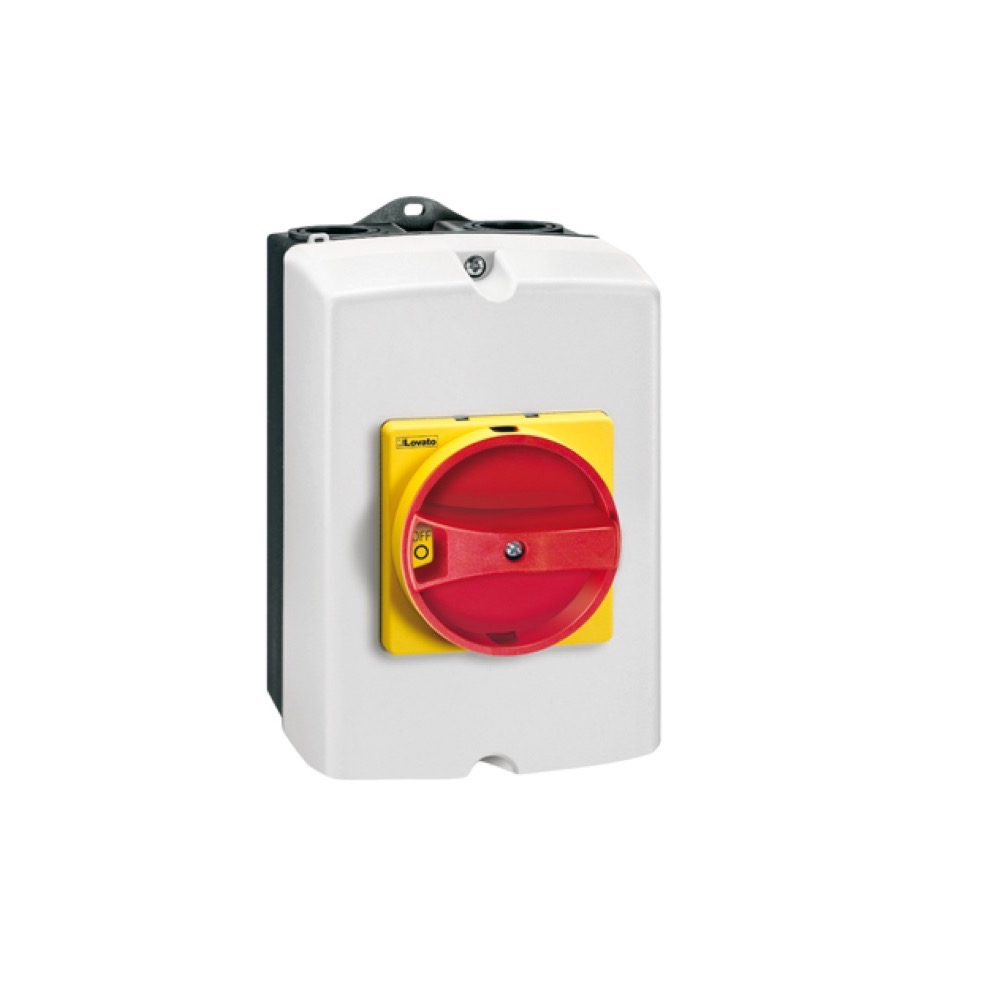

SECTIONNEUR 32A 3POLES BOITIER NEMA 4X

Status: Out of Stock

was CA$130.45

now CA$64.75

Qty:

Description

Description:

Specifications:

IEC Conventional free air thermal current Ith			A	32
Rated insulation voltage Ui IEC/EN			V	1000
Rated impulse withstand voltage Uimp			kV	8
Operating current Ie
	AC21A
		400V	A	32
		500V	A	32
		690V	A	32
	AC22A
		400V	A	32
		500V	A	32
		690V	A	32
	AC23A
		400V	A	32
		500V	A	25
		690V	A	25
Power dissipation per pole max			W	0.6
Rated operational power AC23A
		400V	kW	15
		690V	kW	22
Conditional short-circuit current (rms)			kA	10
Short-circuit protection with fuse			Class/A	gG32
Making capacity AC23A 400V			A	400
Breaking capacity AC23A 400V			A	320
Mechanical life			cycles	100000
Electrical life AC21A			cycles	100000
Mechanical features
Operating position
		normal		Vertical plan
		allowable		Any
Fixing				Screw / DIN rail 35mm
Terminals
		type		Pillar
		width	mm	5.6
		height	mm	6.5
		screw		M25 and M20
		tool		PG16 and PG13.5
Tightening torque for terminals
		max	Nm	1.3
		max	Ibin	16
Conductor section
		IEC min	mm²	0.75
		IEC max	mm²	16
		AWG/kcmil min		18
		AWG/kcmil max		6
UL technical data
General purpose current rating			A	32
Operating voltage max			V	600
UL technical data
		Horsepower/FLA current single phase motor 120V	HP	2
		Horsepower/FLA current single phase motor 240V	HP	5
Horsepower/FLA current three phase motor
		200-208V	HP	10
		240V	HP	10
		480V	HP	20
		600V	HP	20
Short circuit rating			kA rms	5
Short circuit rating with fuse			Class/A	RK5/35
Ambient conditions
Operating temperature
		min	°C	-25
		max	°C	55
Storage temperature
		min	°C	-40
		max	°C	70
Max altitude			m	3000
Resistance & Protection
Frontal IP degree				IP20
UL degree of protection				UL/CSA Type 4/4X
IP degree of protection				IP65
Pollution degree				3
ETIM classification
ETIM 8.0				EC000216 - Switch disconnector
