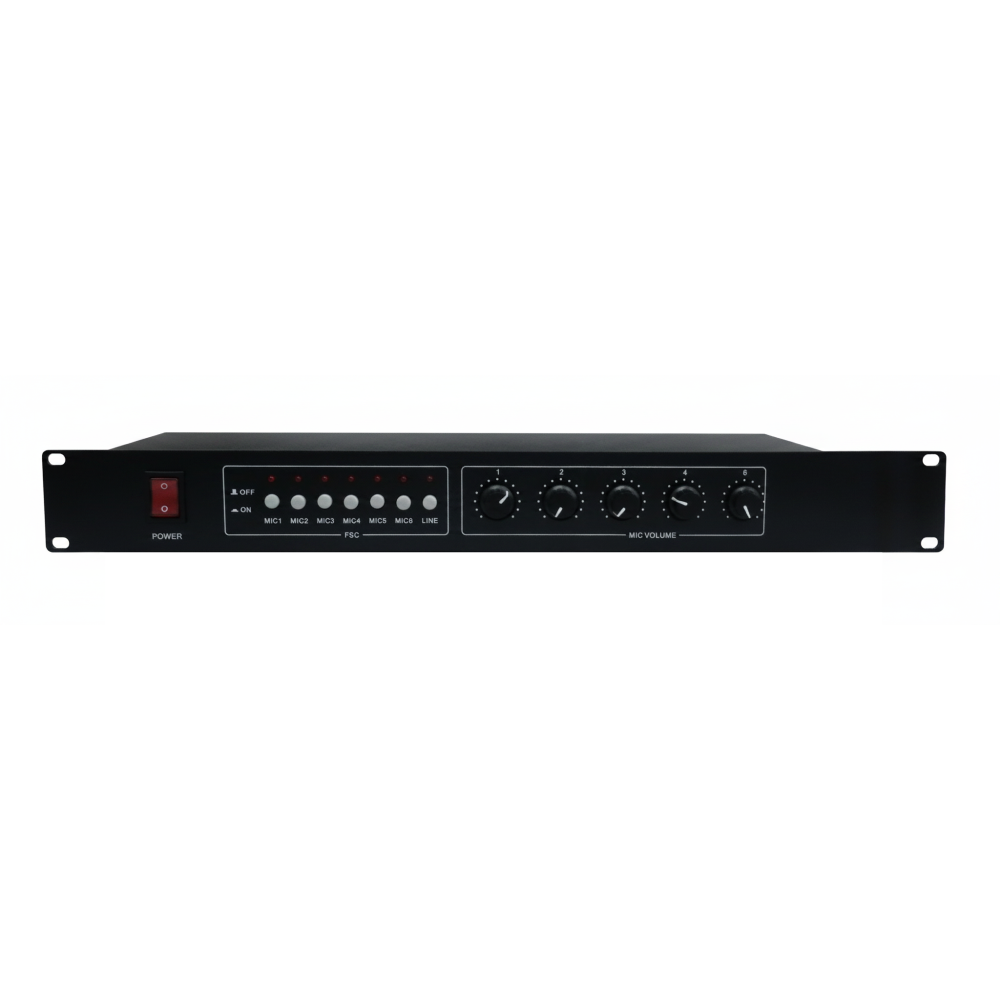

MX6S Phase Shifting Mixer
Designed to Eliminate Feedback Using DSP Technology.

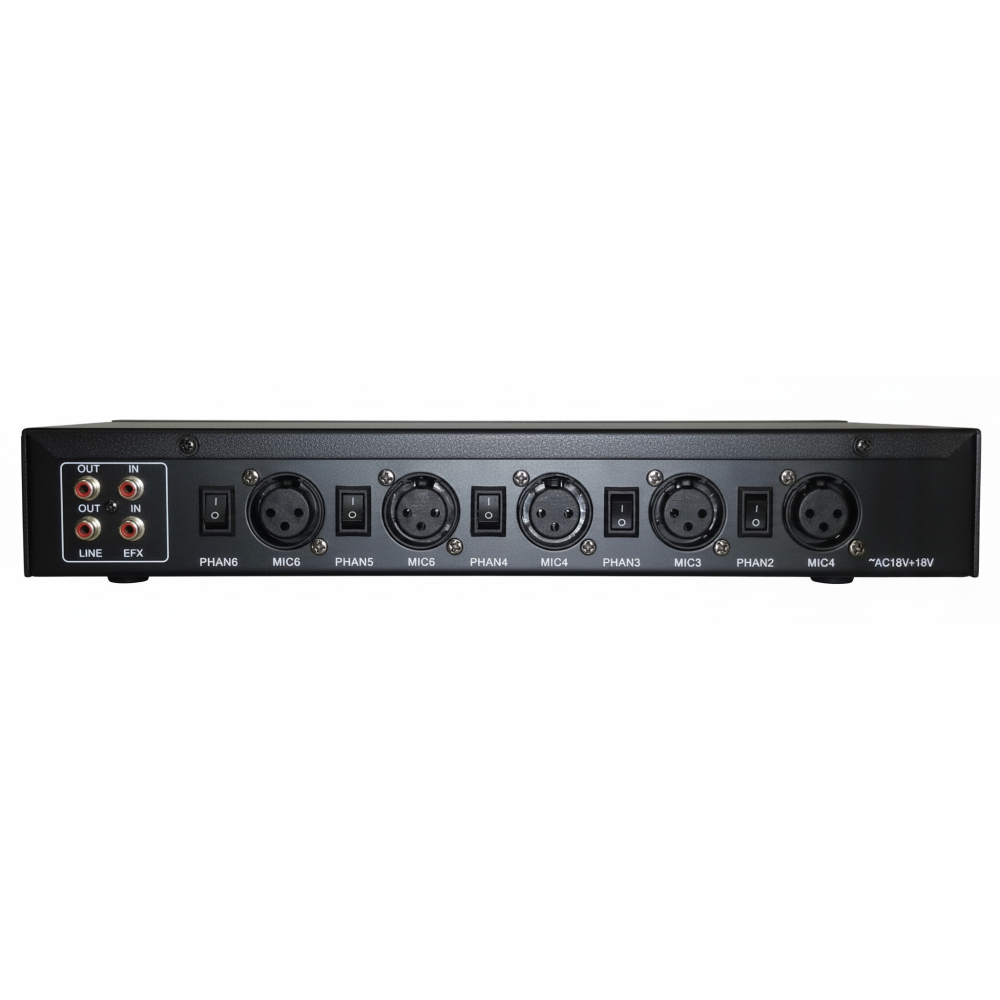

Inputs: 6 XLR Mic Inputs with Individual Volume Controls and Independent Phantom Power. RCA Line Input and RCA EFX Input
Outputs: XLR Balanced, RCA Line Out & RCA EFX out
Frequency Shift: 5Hz±1Hz
Input Impedance: ≥5KΩ
Output Impedance: ≤600Ω
Mic Gain: 5∼14dB
Frequency Response: 20Hz-20KHz (in non-shift), 150Hz-15KHz (in shift mode)

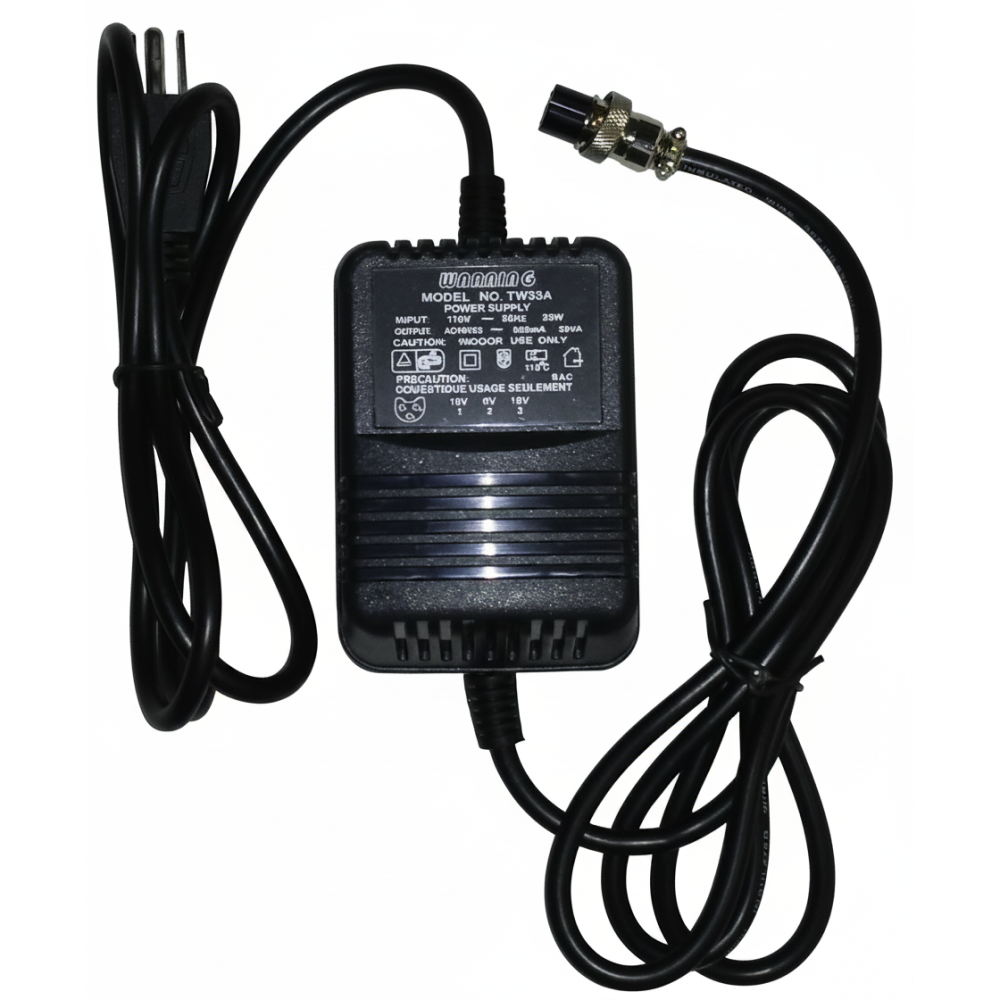

Operates on 28v AC (28V 800mA Adapter Included)
Dimensions: W 16-1/2" (with 19" rack mount ears), D 8-1/8", H 1-3/4"
