- +24V Phantom Power
- 7 Input/4 Channel Microphone Mixer
- Headphone Output with Volume
- Multiple Outputs
- Metal Construction
- Portable – Runs off of 2 AA Batteries*
- High Gain/Wide Dynamic Range

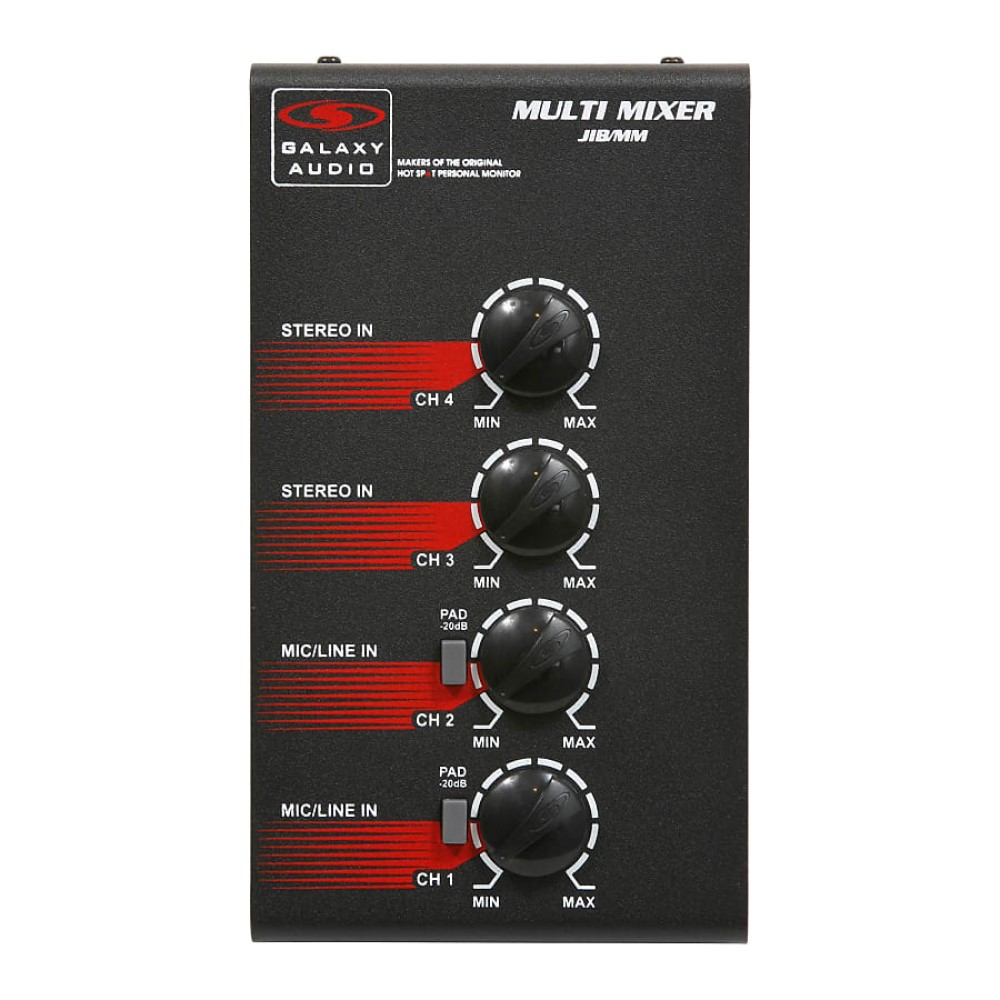

The Galaxy Audio JIB/MM (Multi Mixer) is a great tool for live sound, home recording, field recording, audio/video, and many others. This audio microphone mixer unit features 4 inputs; Chan 1&2: XLR/1/4″ combo w/ 20dB pad, Chan 3: Stereo RCA and Stereo 1/8″ mini (3.5mm), Chan 4: Stereo RCA. Each channel has its own volume control.

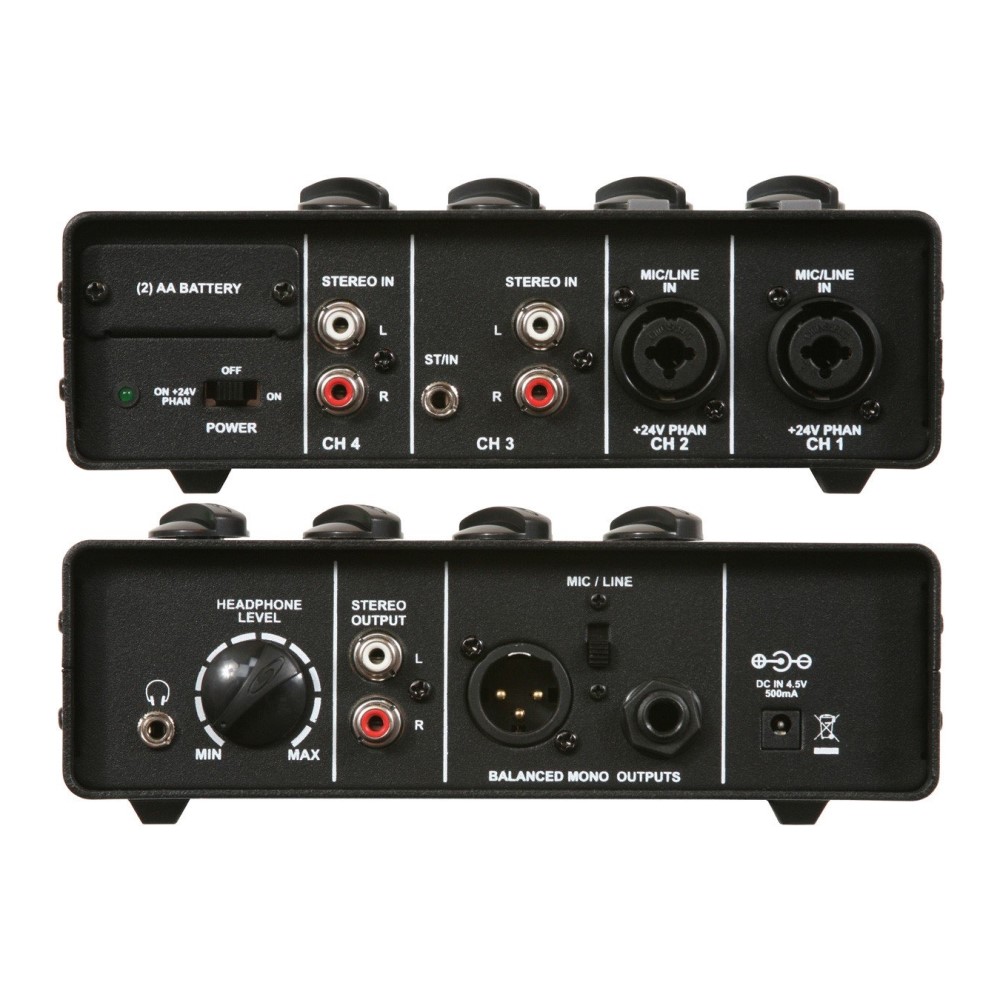

The JIB/MM also features numerous outputs; XLR, 1/4″, stereo RCA, and a stereo headphone output with a volume control. The “Mic/Line switch” located between the XLR and 1/4″ Balanced Mono Outputs allows for selecting either a “Mic Level” Balanced Mono Output or a “Line Level” Balanced Mono Output.
The JIB/MM will run off of 2 AA batteries for about 5 hours or an optional DC power supply (JIB/UA4.5-14). The JIB/MM will supply +24V phantom power to microphones.
The JIB/MM is great for:
- Adding inputs to an existing mixer by creating a sub-mix of two or more sources before sending the signals to the main mixer or powered speaker.
- Serving as a sophisticated cable adapter that not only adapts the connector type but also provides the correct impedance with adjustable level control.
- Serving as the main mixer for solo or duo acts as well as AV presentations.
- As a mixer for rehearsals when its impractical to set up the entire PA.
- Interfacing pro audio gear with consumer audio gear.
- Battery operation allows remote location use where AC power is unavailable.
- As an emergency back-up mixer to have along just in case.
