FOUR TRACK DIGITAL AUDIO RECORDER AND USB AUDIO INTERFACE

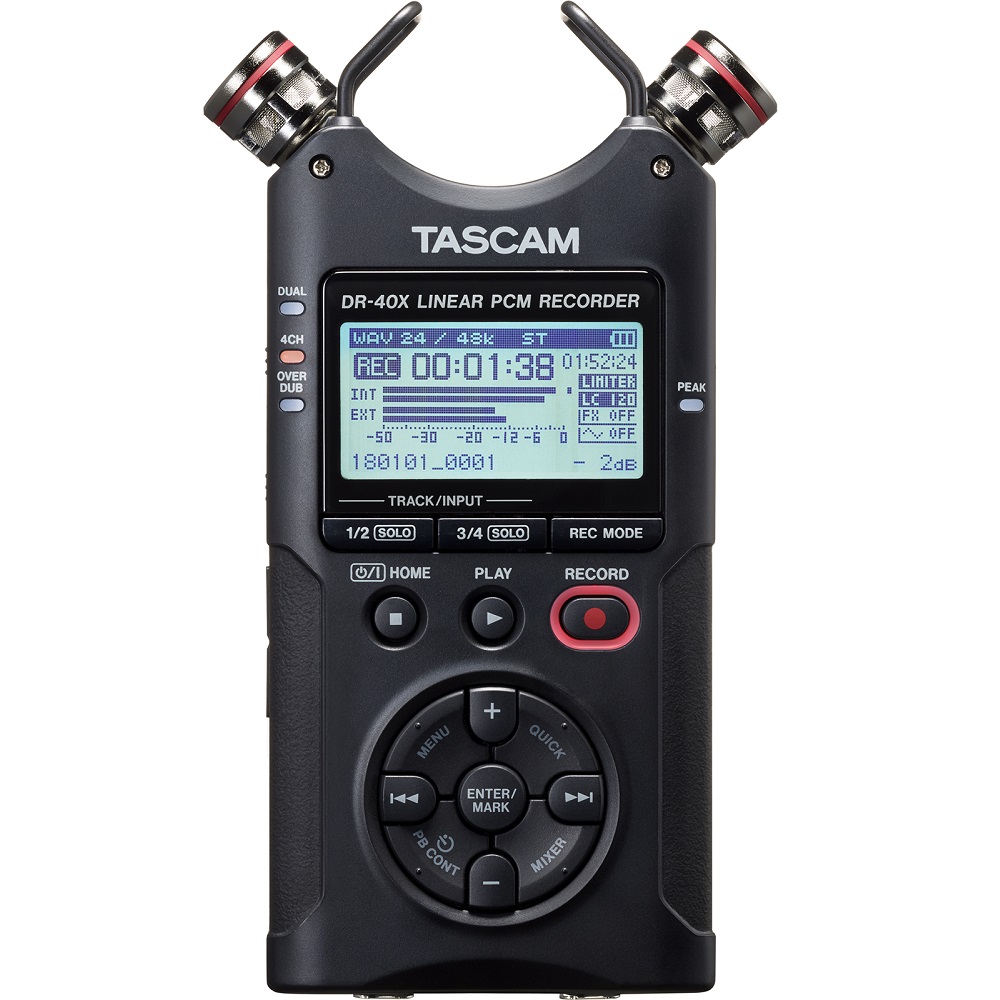

The DR-40X by Tascam is a versatile four-track audio recorder for cinema, music, podcasting and any other application. Easy-to-use compact design with a high-performance feature set and versatile audio I/O, all to produce professional content.

Professional Deal for live capture: line level input

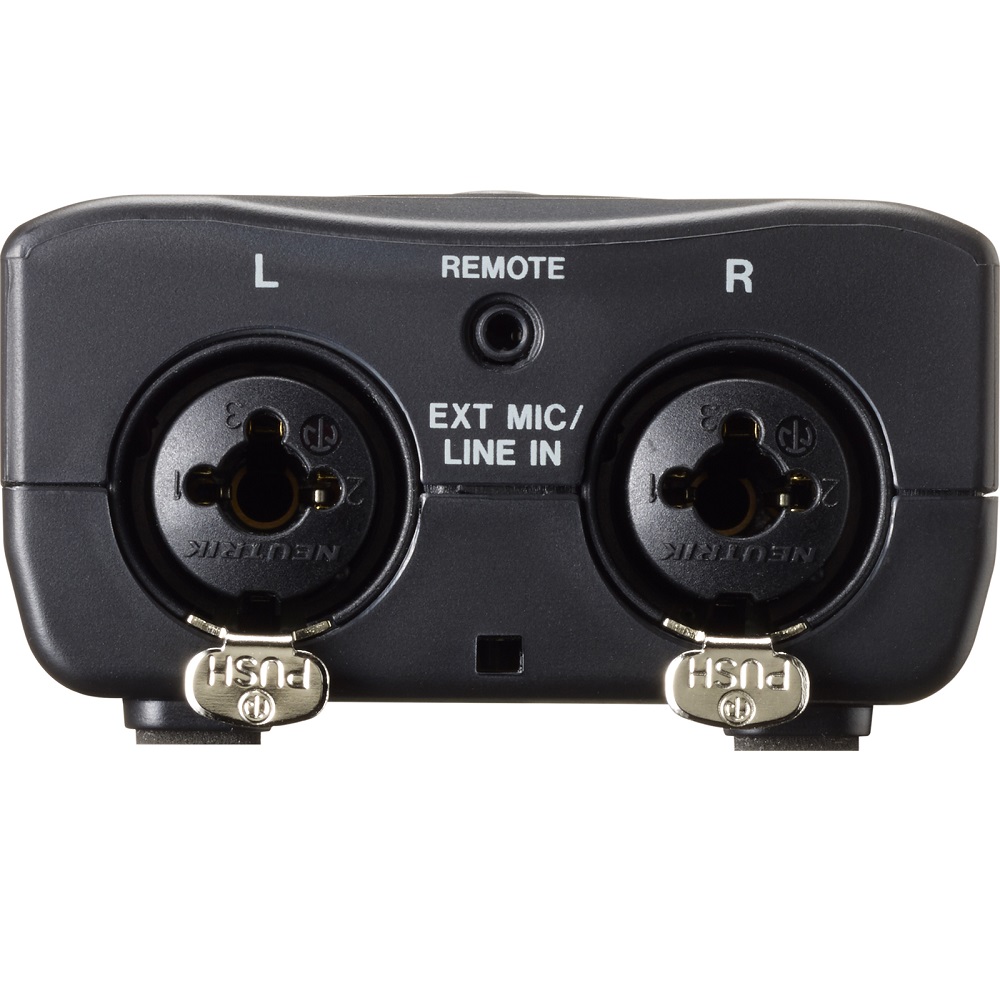

Dual Neutrik XLR/TRS combo jacks support both mic-level and +4dBu line-level. These inputs can accept balanced microphone or line level from Mixers or the FOH console. The microphone preamp includes +48V phantom power and plenty of gain for detailed recordings with condenser microphones, as well as electret type microphones. Using the stereo built-in microphones, you can capture ambient sound of the audience while recording direct from an external console, which is ideal for capturing live performances.

Wide covering range: from whispering voice to jet engine
DR-40X allows high-quality recording with its stereo built-in condenser microphones. Every detail is captured from small whispers to loud sounds up to 125dB SPL. These built-in microphones are adjustable unidirectional microphones for recording in an X-Y pattern for tight stereo imaging, or in an A-B pattern for a more ambient recording.

KEY FEATURES
• High-quality unidirectional stereo condenser microphones that can record in both A-B and X-Y positions
• XLR/TRS inputs compatible with +4dBu line level / +48V

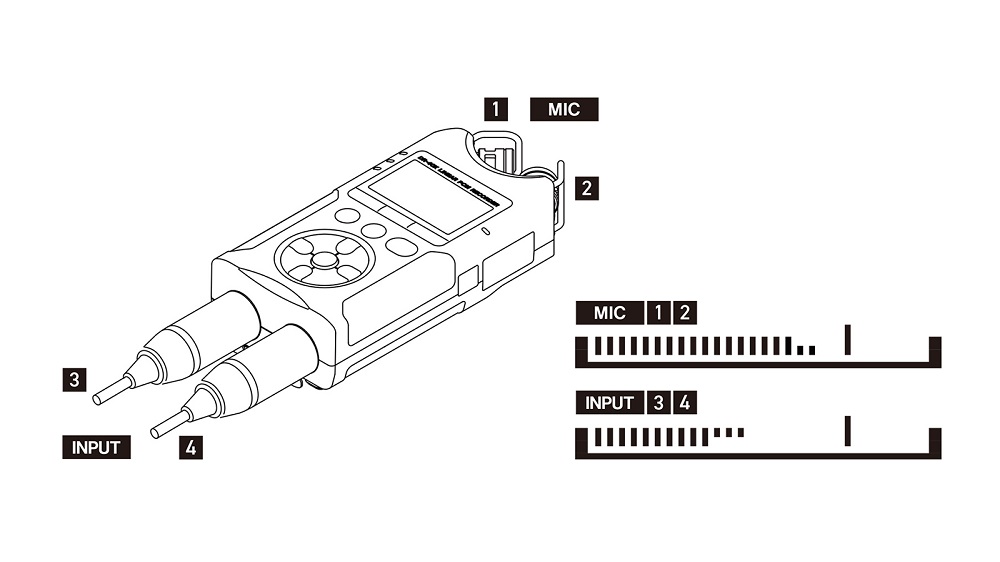

• 4-channel mode that can be used for dual recording and nondestructive overdub recording, etc.
• Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
• Overwrite function for Punch-In recording with one level of Undo
• Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
• Dictation mode designed for human voice recording and transcription
• MS decoding function making it possible to use M-S microphones
• Reverb effect
• Auto recording function that can detect the sound input signal level and automatically start recording
• Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
• Peak reduction function that detects peaks and automatically sets the optimal level
• Self timer recording function
• Seamless gain control
• Three low cut filter levels (40/80/120Hz)
• Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments)
• Level align feature that prevents uneven volume levels
• Equalizer setting for adjusting playback sound quality
• High-quality 24-bit/96kHz WAV/BWF linear PCM and MP3
• Built-in monaural speaker with an output of 0.3W
• Pre-recording buffer that can record up to 2 seconds prior to starting recording
• Stereo mini line output / Headphone output connector
• 128x64 pixel graphic LCD with backlight
• Powered by 3 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
• Rubber feet for improving acoustic properties during desktop recordings are included
• Tripod attachment screw-hole built in to the unit

Recording Media: SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (up to 128GB)

File System: FAT16/32, exFAT

Recording File Format:
WAV / BWF
• Sampling Frequency: 44.1k / 48k / 96k Hz
• Bit-depth: 16 / 24-bit
MP3
• Sampling Frequency: 44.1k / 48k Hz
• Recording Bit-rate: 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
• Playback Bit-rate: 32k to 320k bps, VBR, ID3TAG Ver. 2.4

Number of Channels: 4-channel (Stereo)

Playback speed control: 0.5 to 1.5 times (in 0.1 increments) *44.1k/48kHz only

Built-in Microphone: Unidirectional, Stereo (switchable between A-B and X-Y positions)

EXT MIC/LINE IN : Connector: XLR/TRS Combo jack (1: GND, 2: HOT, 3: COLD)

PHONES/LINE OUT : Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)

USB
• Connector: USB Micro B-type
• Format: USB2.0 HIGH SPEED

Built-in Speaker: 0.3W, Mono

Low-cut Filter: 40 / 80 / 120Hz

Chromatic Tuner: C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)

Effector: 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)

Tripod attachment: 1/4" Tripod attachment screw-hole

Power: 3 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption: 2.5 W (Max)
Battery Operation Time (Recording)
• Alkaline (EVOLTA): approx. 18 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
• Ni-MH (eneloop): approx. 16 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)

Dimensions (WHD): 2.75" x 6.1" x 1.37" / 70 x 155 x 35 mm
Weight: 8.3 oz. / 213 g

Audio Performance
Frequency Response
• Fs 44.1kHz: 20Hz to 20kHz, +1/3dB
• Fs 48kHz: 20Hz to 22kHz, +1/3dB
• Fs 96kHz: 20Hz to 40kHz, +1/3dB
Total Harmonic Distortion: 0.05% or less
Signal-to-Noise Ratio: 92 dB or higher

Computer Requirements

Windows
Computer: Windows PC with USB2.0 or USB3.0 port
CPU: Dual Core, 2GHz or faster (x86)
Memory: 2GB or more
Supported OS: Windows 10 (October 2018 Update) NEW, Windows 8.1 , Windows 7

Macintosh
CPU: Power PC, iMac, G3, G4, G5 266MHz or faster
Memory: 64MB or more
USB: USB2.0 recommended
Supported OS: macOS Mojave NEW, macOS High Sierra (10.13) , macOS Sierra‎ (10.12)

iOS
Supported OS: iOS 12 NEW, iOS 11
