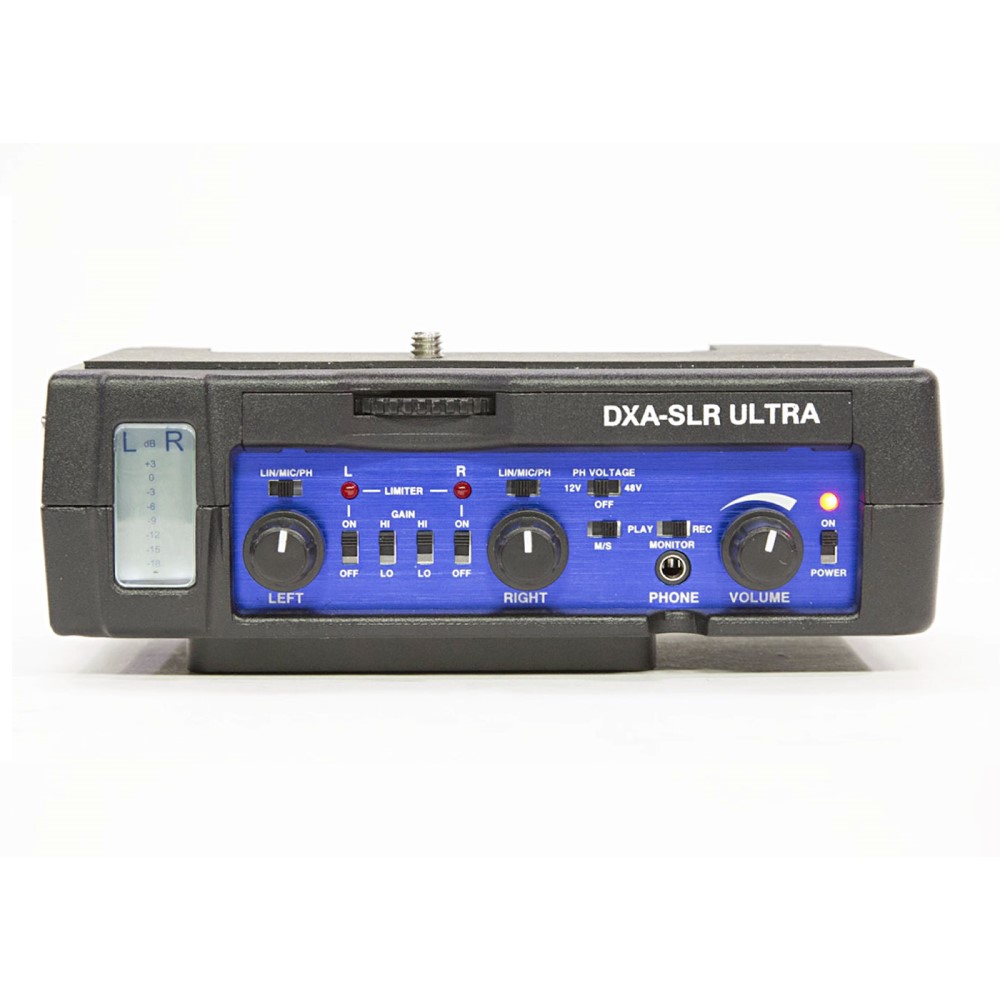

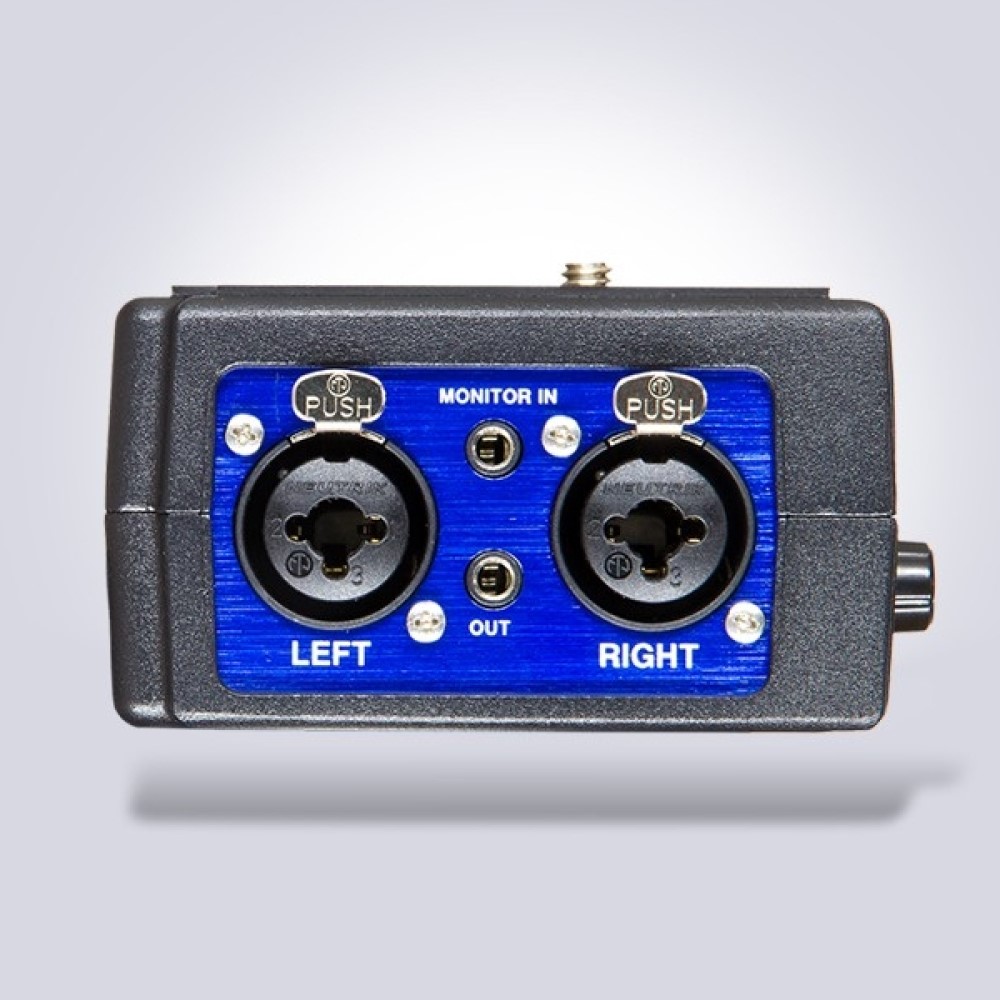

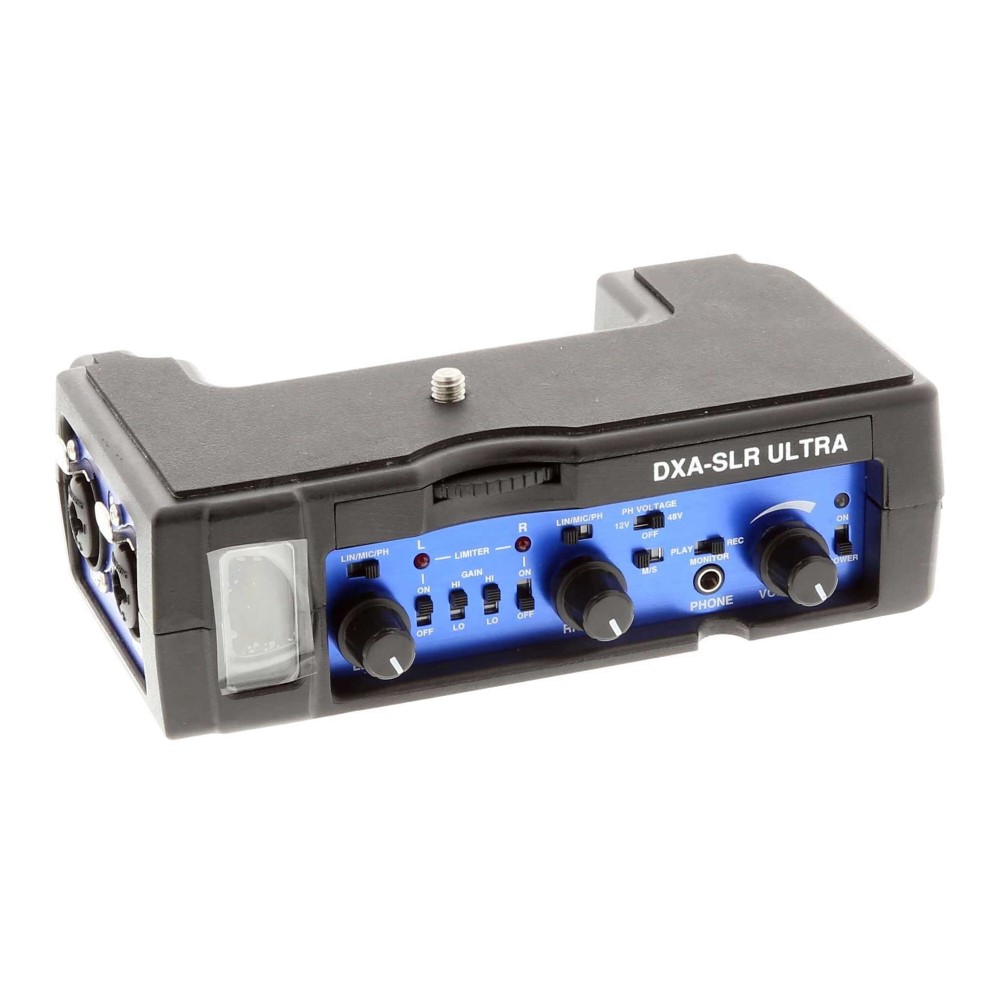

BEACHTEK ACTIVE AUDIO ADAPTER FOR DSLR – 2 XLR INPUTS

The BeachTek DXA-SLR ULTRA bridges the gap between DSLR and professional video cameras by enabling professional audio features that facilitate high-quality audio recording directly to the camera.

• Maximum Input Levels
  MIC level (LO gain) +10dBu
  MIC level (HI gain) -20dBu
  LINE level: +14dBu

  Output Level
  -26dBu at 0dB on the VU meter

  Frequency Response
  20Hz to 20kHz (+/- 0.5dB)

  THD
  Less than 0.01% @ 1kHz, -30dBu input

  S/N Ratio
  85dB @ 1Khz, -30dBu input

  Gain
  LO 0dB
  HI +30dB

  Phantom Power
  Dual regulated 12 or 48 volt power supplies
  Current to 14mA (direct short)

  VU meter
  -18 to +3dB in 3dB increments

  Battery Type
  One 9 volt alkaline or lithium battery

  Battery Duration
  3 hours typical with alkaline battery (no phantom)
  8 hours typical with lithium battery (no phantom)

  Dimensions
  6” x 3.75” x 1.75” (L x W x H)
  (152 mm x 95 mm x 44 mm)

  Weight
  Adapter 18 oz (0.51 kg)
  Rod Mount 8 oz (0.23 kg)
