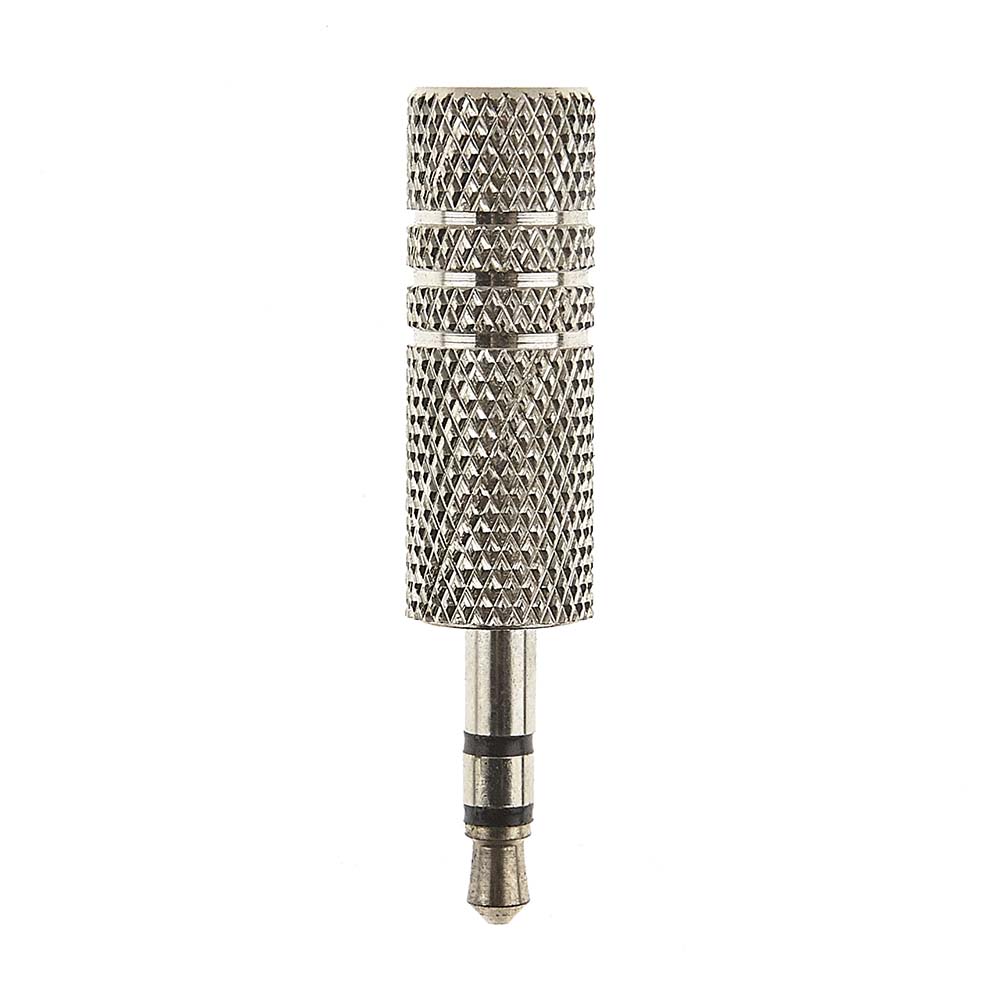

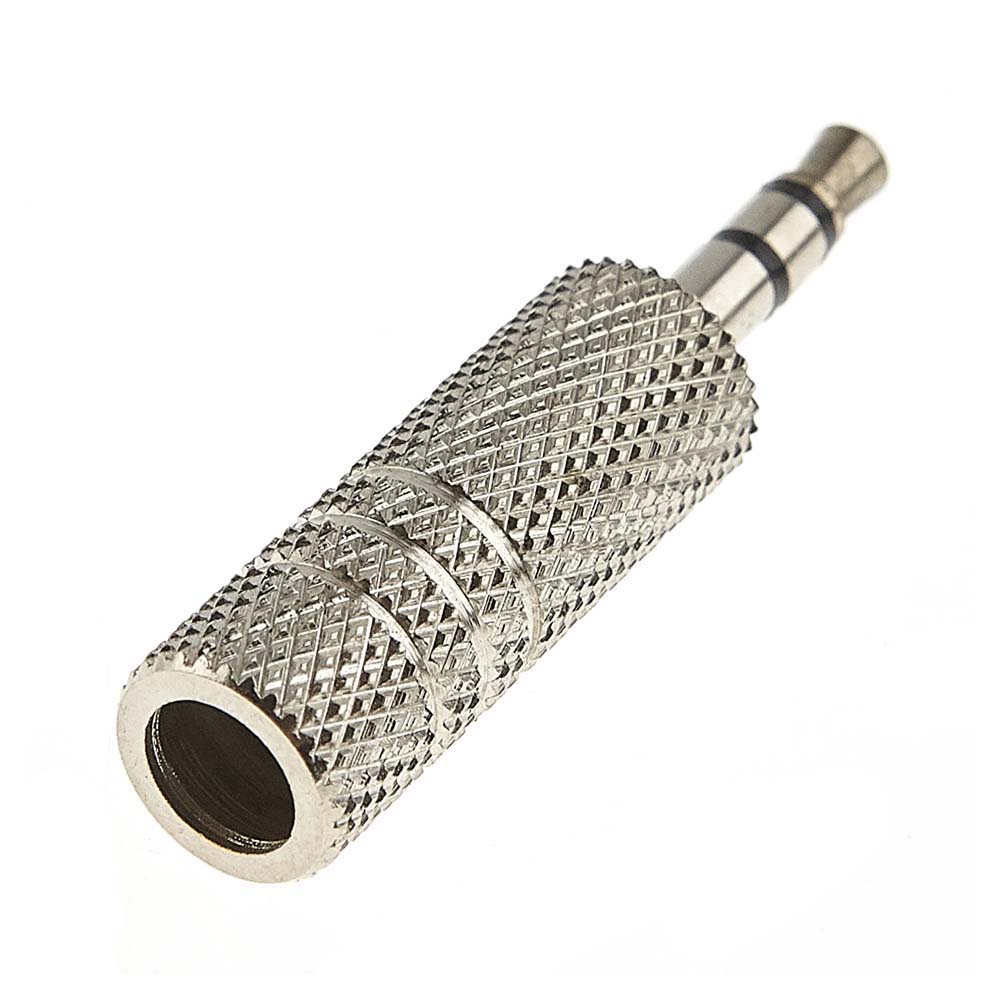

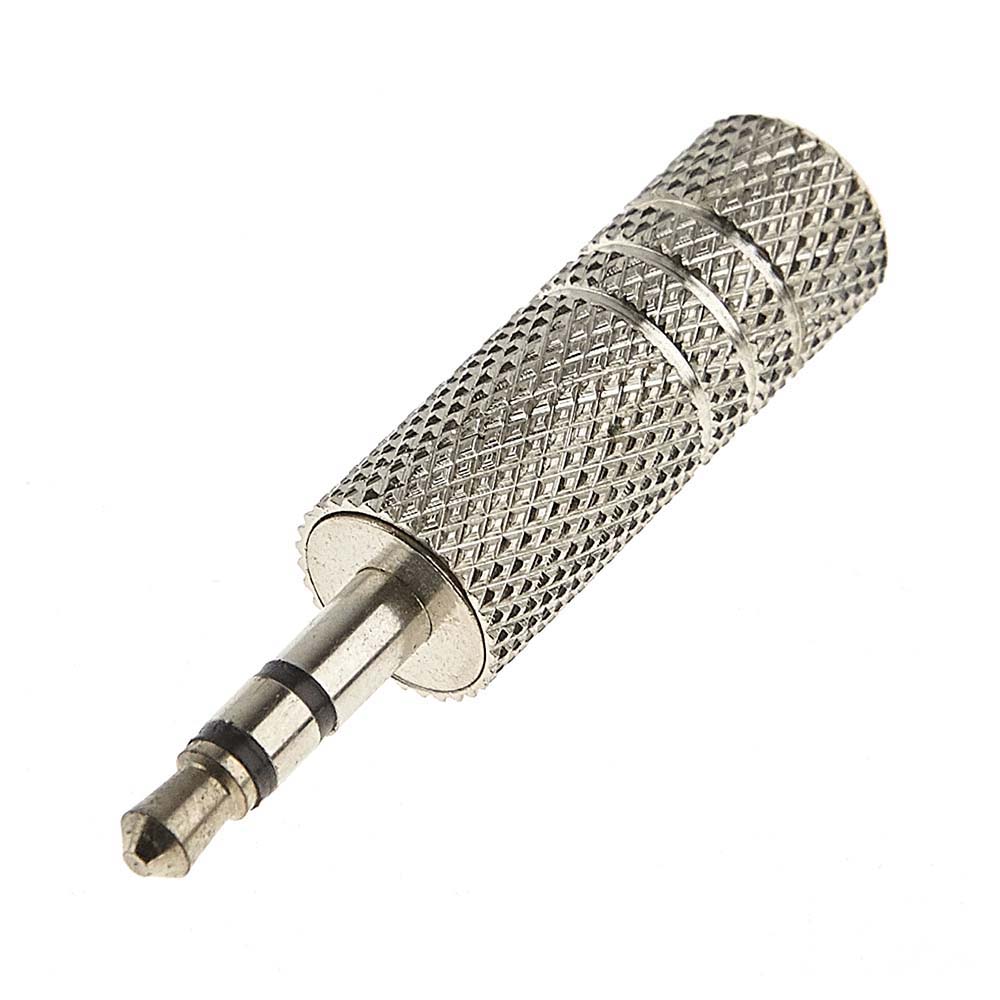

NEUTRIK 1/8" STEREO METAL PLUG

AU0/44A

Status: In stock

CA$1.99

25 - CA$1.59 per UN
100 - CA$1.32 per UN

Qty:

Description

Description

Stereo 3 pole 3.5 mm plug, crimp strain relief

Specifications

Specifications

Product
Title	NYS231
Connection Type	Plug

Electrical
Contact Resistance	≤ 10 mΩ
Insulation Resistance	≥ 200 MΩ(Initial)
Dielectric Strength	0.5 KVdc 50HZ

Mechanical
Lifetime	> 5,000 Mating Cycles
Insertion and Withdrawal Force	5 - 40 N
Cable O.D.	max 4.5 mm for standard outlet max 6.4 mm for large outlet ( * L） max 8.5 mm for large outlet ( * LL）

Material
Plug finger	Brass
Sleeve	Zinc
Retainer ring	PA66+30%GF
Soldering Contact	Phosphor Bronze
Cable Clamp	Steel
Insulation	PP
Housing	Zinc
Plug finger plating	Nickel
Sleeve plating	Nickel
Soldering Contact plating	Tin
Cable Clamp plating	Tin
Housing plating	Nickel
